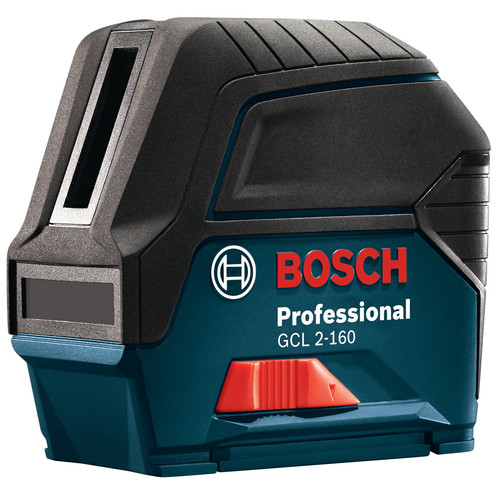

Bosch GCL2-160 Self-Leveling Cross-Line Laser with Plumb Points

Model: bshngcl2-160
        (21) Write A Review

We’re sorry, but this item is no longer available.

Bosch GCL2-160 Self-Leveling Cross-Line Laser with Plumb Points Model: bshngcl2-160

Product Features & specs :

Bosch GCL2-160 Self-Leveling Cross-Line Laser with Plumb Points

Details
The Bosch GCL 2-160 Self-Leveling Cross-Line Laser with Plumb Points delivers all-in-one versatility, with highly visible lines and points that can be turned on independently or together for horizontal level, vertical level and plumb transfer applications. This laser has a visible range of 65 ft. The receiver mode allows it to work with an optional Bosch line laser receiver (LR 6 or LR 7) for a working range of up to 165 ft. It features VisiMax technology, which monitors power consumption to maximize line visibility and extend battery life. The smart pendulum system self-levels with an accuracy of up to 4 degrees, and it indicates out-of-level condition. The manual mode locks lines for use at any angle by just switching the tool on in locked mode. Robust over-molded construction IP54 ensures splash water/dust protection for years of dependable operation. It comes with the RM 1 magnetic rotating mount that rotates 360 degrees and includes a ceiling grid clip for use in ceiling-grid applications.
Features:
  • All-in-one functionality provides highly visible lines and points for horizontal leveling, vertical alignment and plumb point transfer applications
  • Class 2 Laser Product, < 1mW Power Output, Wavelength 630-650
  • Bright laser lines have a visible range of 65 Ft. with an accuracy of 1/8 in. at 33 ft.
  • Receiver mode for use with optional line laser receiver (LR 6 or LR 7) for a working range of up to 165 Ft. and/or in bright lighting
  • Smart Pendulum System self-levels and indicates out-of-level condition up to /- 4 degrees
  • RM 1 magnetic rotating mount included accessory rotates 360 degrees while staying centered on the plumb point
  • Includes a ceiling grid clip that magnetizes to the RM 1 for use in ceiling-grid applications
  • Manual mode locks lines for use at any angle
  • Robust over-molded construction IP54 ensures splash water/dust protection for years of dependable operation
  • Built-in VisiMax technology monitors power consumption to maximize line visibility and extend battery life
What’s Included:
  • Self-Leveling Cross-Line Laser with Plumb Points - GCL 2-160
  • Magnetic Rotating Mount - RM 1
  • Ceiling Grid Clip
  • Hard Carry Case
  • Laser Target Plate
  • (3) AA Batteries
Cordless
Yes
Length
11 in.
Width
4.75 in.
Height
11.2 in.
Weight
1.08 lbs.
Accuracy Margin (Horizontal)
±1/8 in
Accuracy Margin (Vertical)
±9/32 in
Accuracy Margin Distance (Horizontal)
33 ft
Accuracy Margin Distance (Vertical)
33 ft
Batteries Included
3
Battery Type
Alkaline
Bluetooth Compatibility
No
Case Included
Yes
Case Type
Hard
Charger Included
No
Effective Range (Receiver)
165 ft
Effective Range (Visual)
65 ft
Laser Class
Class II
Laser Color
Red
Laser Diode
625 - 650 nm
Operating Temperature (F).Run Time (Max.)
14 Degrees F to 122 Degrees F
Power Source
Cordless
Protection Class
IP54
Self-Leveling Range
4 Degrees
Tripod Thread
1/4 in - 20 in
Voltage
1.5V
Wifi compatibility
No

Reviews :

4.5 / 5.0
21 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
17
1
1
0
2
Would you recommend this product?
Yes (1)
Pros
Easy To Use (1)
Best Uses
Frequent Use (1)
Large Projects (1)
Small Projects (1)
Home Repair (1)
Great product.
Perfect for what I need!
Good balance price and quality
November 10, 2019
Originally posted at
Ease of operation
Have used this laser level for a couple of years on commercial work and it does an excellent job- for plumb bob marks for hangers to horizontal lines for elevations and vertical lines for walls or piping runs - great tool
September 10, 2019
Originally posted at
One beam is barely illustrated.
Had this for a year and the vertical line is very dim compared to the horizontal. Pretty much worthless is I have to use two lasers for two beams.
August 21, 2019
Originally posted at
Innovative tool
Gone were the days of chalk line and unwanted marks in leveling. I use this tool a lot for laying out electrical outlets and overhead lighting.Makes life and the job easy,fast efficient and professional .
Cannot imagine my tool bag without this tool
July 31, 2019
Originally posted at
Works great but broke down within the first month
This laser is very handy and does a great job... when it's working. Within the first month I lost the horizontal laser on the unit, and it is currently back at Bosch being repaired / replaced. It's frustrating doing jobs without the new laser I just bought.
April 8, 2019
Originally posted at
Weak beam
Under patio roof, overcast sky, couldn't see or use the beam over 10 ft. Terrible!
March 26, 2019
Originally posted at
Lazer level
I just bought this and am very happy with it. Wish I could get a storage box to put it in.
February 19, 2019
Originally posted at
Easy to set up and use
Purchased to help build shop. Saved hours of manual leveling.
January 13, 2019
Originally posted at
Awesome Level
Super satisfied with this product. BOSCH alway's comes through. Top of the line products.
January 12, 2019
Originally posted at
good kit
happy with performance good visible light the batteries did not last long so grab some extras.
December 17, 2018
Originally posted at

Q & A :

Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 1 question Browse 1 question and 1 answer
No questions have been asked about this item. Be the first!

Warranty:

Bosch Laser & Measuring Tools Warranty Robert Bosch Tool Corporation ("Seller") warrants to the original purchaser only, that all Bosch lasers and measuring tools will be free from defects in material or work­manship for a period of one (1) year from date of purchase. Bosch will extend warranty coverage to two (2) years when you register your product within eight (8) weeks after date of purchase. Product registration card must be complete and mailed to Bosch (postmarked within eight weeks after date of purchase), or you may register on-line at www.boschtools.com/service/productregistration.

If you choose not to register your product, a one (1) year limited warranty will apply to your product. 30 Day Money Back Refund or Replacement If you are not completely satisfied with the performance of your laser or optical instrument, for any reason, you can return it to your Bosch dealer within 30 days of the date of purchase for a full refund or replacement. To obtain this 30-Day Refund or Replacement, your return must be accompanied by the original receipt for purchase of the laser or optical instrument product. A maximum of 2 returns per customer will be permitted.
