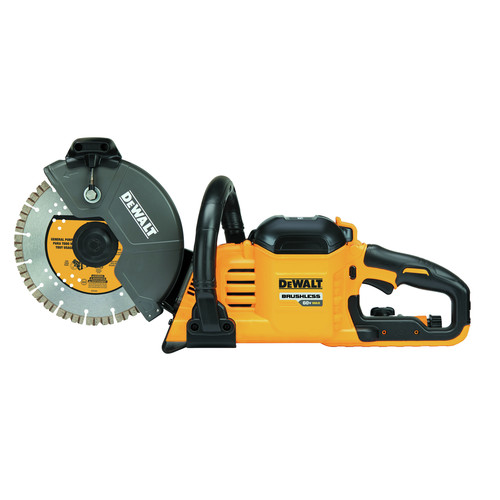

Dewalt FlexVolt 60V MAX Cordless Brushless 9 in. Cut-Off Saw (Tool Only)

Dewalt Model: DCS690B

We’re sorry, but this item is no longer available.

Dewalt FlexVolt 60V MAX Cordless Brushless 9 in. Cut-Off Saw (Tool Only) Dewalt Model: DCS690B

Product Features & specs :

6600 RPM and 3-1/4 in. Depth Of Cut

6600 RPM and 3-1/4 in. Depth Of Cut

Fast and efficient cuts and scores in concrete and masonry materials

Dual Sided Water Delivery System

Dual Sided Water Delivery System

Effectively manages dust when cutting in concrete

25.5 Feet Of 1 in. Scoring In Cured Concrete Per Charge

Up To 25.5 ft. of 1 in. Scoring in Cured Concrete

Capable of 1 in. scoring on cured concrete

96 Pieces of #5 Rebar Per Charge

96 Pieces of #5 Rebar Per Charge

Cuts up to 96 pieces of #5 Rebar in a single charge

This tool is compatible with the full line of FLEXVOLT batteries

Dewalt FLEXVOLT - Power of Corded - Freedom of Cordless

flexvolt

Dewalt DCB606 battery

20v 6 ah / 60v 2 ah

Dewalt DCB609 battery

20v 9 ah / 60v 3 ah

Dewalt DCB612 battery

20v 12 ah / 60v 4 ah

Dewalt 60V MAX Lithium Ion

60v max

Dewalt FlexVolt 60V MAX Cordless Brushless 9 in. Cut-Off Saw (Tool Only)

Details

The FlexVolt 60V MAX Cordless Cut-Off Saw is capable of 3-1/4 in. depth of cut and features a brushless motor that achieves 6,500 RPM. This allows for instant on, fast and efficient cuts and scores in concrete and masonry materials plus steel and rebar as well. With a rotatable, 5-position guard, the user can select the approach angle that provides optimal visibility and accessibility when cutting in tight spaces. The DCS690 also features a beltless all-metal drivetrain. This allows for a jobsite durable cut off saw that is efficient and with no belts to change, tension and maintenance. The latched and sealed battery box also keeps the battery and terminals protected from harsh jobsite conditions. In addition, the 60V MAX Cut-Off Saw features a dual-sided water delivery system that offers an OSHA Table 1 Complaint solution for dust management when cutting concrete and masonry materials. Featuring a front handle that can be held in three positions, allowing the saw to be securely held to cut in both horizontal and vertical positions. In addition, a new heavy load indicator light provides the user with real time power and runtime feedback during demanding applications. Finally, the tool itself is Tool Connect Tag Ready (tag sold separately). Included with the kitted and bare units is one FlexVolt Diamond Wheel and one FlexVolt Cut-Off Wheel, each optimized for use with the 9 in. 60V MAX Cut-Off Saw. With the 9 in. 60V MAX Cut-Off Saw, the concrete construction user benefits from the power of the FlexVolt System without the hassles of gas. With an efficient and powerful brushless motor, the tool provides long runtime in demanding applications.

Features:

  • The heavy load indicator light provides the user with real time power and runtime feedback during demanding applications.

  • With the 9 in. 60V MAX

  • The DCS690 also features a beltless all-metal drivetrain. This allows for a jobsite durable cut off saw that is efficient and with no belts to change, tension and maintenance.

  • With a rotatable, 5-position guard, the user can select the approach angle that provides optimal visibility and accessibility when cutting in tight spaces.

  • The latched and sealed battery box also keeps the battery and terminals protected from harsh jobsite conditions.

  • The tool itself is Tool Connect Tag Ready (tag sold separately), which allows the user to attach a Tool Connect Tag and track their inventory.

  • The front handle that can be held in three positions, allowing the saw to be securely held to cut in both horizontal and vertical positions.

What’s Included:

  • FlexVolt 60V MAX Cordless Brushless 9 in. Cut-Off Saw - DCS690B

  • Cutting Wheel

  • Diamond Cutting Wheel

  • Battery & Charger sold separately

Power Source

Cordless

UL Safety

Yes

Wifi compatibility

No

Batteries Included

0

Battery Type

Li-Ion

Bluetooth Compatibility

No

Motor Type

Brushless

Arbor Size

7/8 in

Charger Included

No

No-Load Speed (RPM)

6600

Depth of Cut (90 Degrees)

3-1/4 in

CSA Safety

Yes

Case Included

No

Voltage

60V

ETL Safety

No

Battery System

60V MAX

Series

FlexVolt

Weight

10.85 lbs.

Warranty Term

3 Year
