EMAX 14 HP 20 Gallon KOHLER Command PRO CH440 Gas Engine Electric Start Industrial 2-Stage Inline Cast Iron Pump 3-in-1 Air Compressor/Generator/Welder

EMAX Model: EGES14020T

We’re sorry, but this item is no longer available.

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
EMAX 14 HP 20 Gallon KOHLER Command PRO CH440 Gas Engine Electric Start Industrial 2-Stage Inline Cast Iron Pump 3-in-1 Air Compressor/Generator/Welder EMAX Model: EGES14020T

Product Features & specs :

EMAX 14 HP 20 Gallon KOHLER Command PRO CH440 Gas Engine Electric Start Industrial 2-Stage Inline Cast Iron Pump 3-in-1 Air Compressor/Generator/Welder

Details

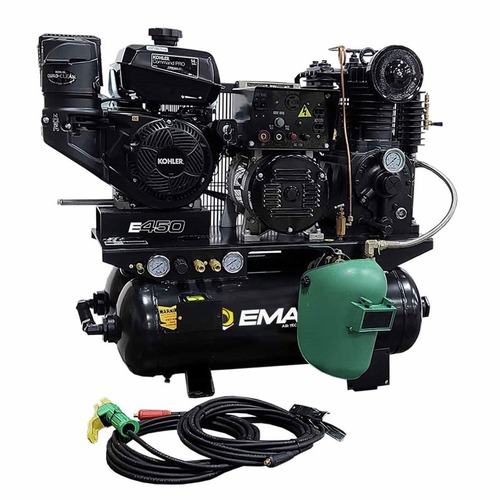

The new EMAX 3-in-1 Air Compressor with generator and 5000 Watts welder is ran by a 14 HP Kohler Command series engine and a 5 HP Two stage all cast Iron Pressure Lubed Pump. This unit will provide compressed air, three 120V and 240Vpower outlets and a DC 190 Amp welder, ideal for any job site. Use this 3-in-1 system in commercial and industrial applications on a jobsite or on the go with its solid pneumatic tires. The Tires can be removed to make this unit stationary as well. The Two stage all cast iron pressure lubed pump delivers high CFM output and reliability. The two ASME twin tanks provide 20 Gallons of air storage with removable handles, quick disconnects, rubber isolator pads, and liquid filled gauges, plus heavy duty steel belt guard to make this unit ready for any task. This unit is backed by EMAX 5 year parts warranty.

Features:

  • MADE IN THE USA

  • Pressure Gauge

  • 6-7/8 in. x 12-3/8 in. Bolt Pattern

What’s Included:

  • 120V/240V 190 Amp 14 HP 20 gal 5000 Watts 3-in-1 Corded DC Welder/Air Compressor/ Generator - EGES14020T

Power Source

Corded

Tank Orientaion

Horizontal

Tank Capacity

20 gal

Horsepower

14

Motor Type

Two Stage

Voltage

120V/240V

Operating Pressure (PSI)

175

Tank Style

Stationary

Pump Type

Pressure

Tank Construction

Cast Iron

Length

34 in.

Width

42 in.

Height

38 in.

Weight

780 lbs.

Warranty Term

5 Year
