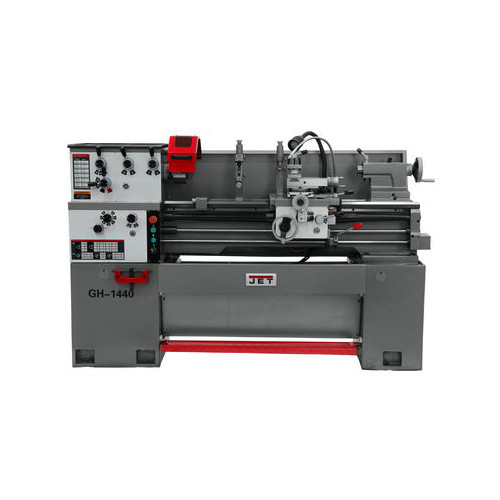

JET 323409 GH-1440-3 Lathe with VUE DRO

JET Model: jetn323409
ratings        (0) Write The First Review
$11,299.00
See More
See Less
free shipping
This item qualifies for
FREE SHIPPING
free shipping
This item ships directly from manufacturer
alert warning icon

OR PAY WITH

JET 323409 GH-1440-3 Lathe with VUE DRO JET Model: jetn323409
price for vip customer
$11,299.00

OR PAY WITH

Product Features & specs :

JET 323409 GH-1440-3 Lathe with VUE DRO

Details
The new JET GH-1440-1 and GH-1440-3 Geared Head engine lathes weigh over one ton and come equipped with precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for the ultimate working durability. The enclosed gearbox design, standard coolant system, and lead screw cover provide a smooth and quiet operation while maintaining peak performance. The GH-1440-1 and GH-1440-3 also includes a patented electronic chuck key docking station that prevents startup without the chuck key when safely docked.
Features:
  • V-way bed design is induction hardened and ground
  • Splined, not keyed, shafts are utilized
  • D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings
  • Independent leadscrew and feed rod
  • Adjustable gibs are incorporated in the carriage and slideways
  • Safety on/off switch
  • Emergency Stop within easy reach of the Operator
  • Electronic Chuck Key Docking Station
  • Chuck Guard
  • Foot Brake
What’s Included:
  • GH-1440-3 with VUE DRO-JETN323409
Power Source
Corded
Range of Inch Threads (TPI)
4 - 112
Spindle Bore Diameter
1-1/2 in
PreWired Voltage
230V
UL Safety
Yes
Range of Cross Feeds (IPR)
0.0004 - 0.0103
Swing Range (Gap)
20 in
CSA Safety
No
Distance Between Centers
40 in
Bed Width
10-1/5 in
Tool Size
5/8 x 5/8 in
Gap Length
9-3/8 in
Swing Range (Cross Slide)
8-1/5 in
No. of Inch Threads
40
Motor Phase
3
Range of Longitudinal Feed Rates (IPR)
0.0012-0.0294 in
Bed Construction
Cast Iron
Cross Slide Travel
6-3/8 in
Horsepower
3
Motor Type
Brushed
Voltage
460V
Spindle Mount Taper
Yes
Carriage Travel
37-1/2 in
Spindle Speed Range (RPM)
1800
Compound Slide Travel
3-1/2 in
Range of Metric Threads
0.45 - 7.5
Spindle Travel (Tailstock)
4-3/4 in
Steady Rest Capacity
3-1/2 in
No. of Metric Threads
23
Drive Type
Geared Head Clutch
Follow Rest Capcacity
2-5/8 in
No. of Longitudinal Feed Rates
40
Swing Range (Bed)
14 in
ETL Safety
No
Spindle Mount
Yes
Length
74.8 in.
Width
28 in.
Height
46 in.
Weight
2336 lbs.
Warranty Term
2 Year
