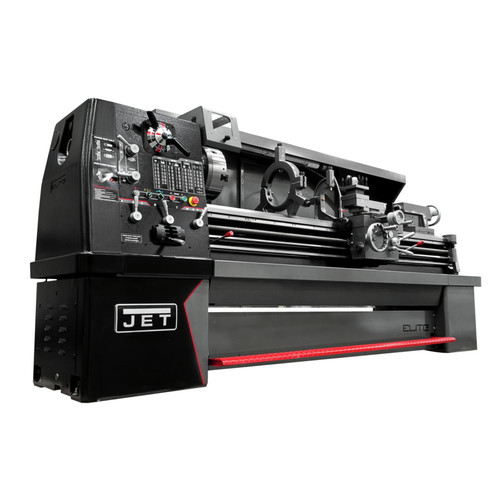

JET 892638 EGH-2180 with ACU-RITE 303 DRO with Taper Attachment

JET Model: 892638

We’re sorry, but this item is no longer available.

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
JET 892638 EGH-2180 with ACU-RITE 303 DRO with Taper Attachment JET Model: 892638

Product Features & specs :

JET 892638 EGH-2180 with ACU-RITE 303 DRO with Taper Attachment

Details

When precision matters the most. The large spindle bore Elite lathes are the signature machines within the Elite lathe lineup. Engineered to meet world-class tolerances for spindle run out, bed alignment, and bed-way parallelism, these lathes take Precision, durability and safety, beyond what the market needs.

Features:

  • 3-1/8 in. Spindle Bore

  • Matrix Disc Clutch permits the changing of gears without stopping the motor, reducing wear

  • Universal gearbox supports inch, metric, modular and diametral threads, without changing gears

  • Anti-Float design eliminates backlash in the cross slide

  • Steady rests feature ball bearing guides for smooth material movements

  • Fully lit with CNC style lighting, the enclosed full length splash guard is expertly designed to contain all chips and coolant

  • Class 7 precision taper roller bearings keep spindle run out to a maximum of 0.0004

  • Hardened and ground gears in headstock reduce vibration and deflection

  • Wider bedways absorb vibration

  • Turcite-B coating between bed and carriage provides friction free motion in all linear directions

What’s Included:

  • EGH-2180 with ACU-RITE 303 DRO with Taper Attachment - 892638

Range of Inch Threads (TPI)

2 - 72

PreWired Voltage

230/460V

Max. Compound Slide Travel

5-2/5 in.

Bed Width

13-4/7 in

Range of Longitudinal Feeds (IPR)

0.0015 - 0.04 IPR

No. of Inch Threads

38

Cross Slide Travel

10-2/3 in

Spindle Speed Range (RPM)

20 - 1600

Range of Metric Threads

0.4 - 14

Steady Rest Capacity

3/8 in - 7-3/4 in

No. of Metric Threads

40

Range of Cross Feeds (IPR)

0.00075 - 0.02

Distance Between Centers

80 in

Tool Size

1 x 1 in.

Tailstock Spindle Taper

MT-5

Motor Phase

3

Horsepower

12.5

Spindle Mount Taper

MT-7

Drive Type

Geared Head Clutch

Max. Tailstock Spindle Travel

6-1/2 in.

Spindle Mount

D1-8
