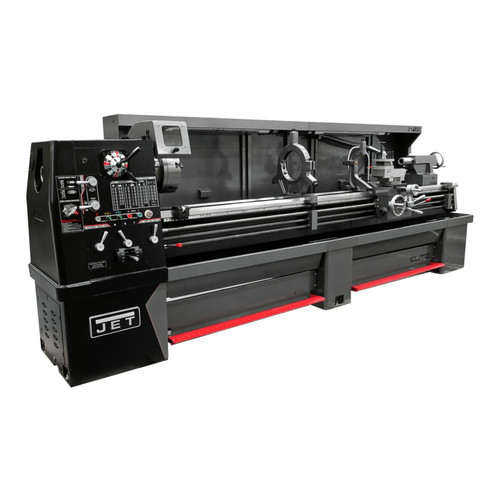

JET 892650 EGH-21120 with Taper Attacment

JET Model: jetn892650
$46,029.99
See More
See Less
free shipping
This item qualifies for
FREE SHIPPING
free shipping
This item ships directly from manufacturer
alert warning icon

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
JET 892650 EGH-21120 with Taper Attacment JET Model: jetn892650

Product Features & specs :

JET 892650 EGH-21120 with Taper Attacment

Details

When precision matters the most. The large spindle bore Elite lathes are the signature machines within the Elite lathe lineup. Engineered to meet world-class tolerances for spindle run out, bed alignment, and bed-way parallelism, these lathes take Precision, durability and safety, beyond what the market needs

Features:

  • 3-1/8 in. Spindle Bore

  • Matrix Disc Clutch permits the changing of gears without stopping the motor, reducing wear

  • Universal gearbox supports inch, metric, modular and diametral threads, without changing gears

  • Anti-Float design eliminates backlash in the cross slide

  • Steady rests feature ball bearing guides for smooth material movements

  • Fully lit with CNC style lighting, the enclosed full length splash guard is expertly designed to contain all chips and coolant

  • Class 7 precision taper roller bearings keep spindle run out to a maximum of 0.0004

  • Hardened and ground gears in headstock reduce vibration and deflection

  • Wider bedways absorb vibration

  • Turcite-B coating between bed and carriage provides friction free motion in all linear directions

What’s Included:

  • EGH-21120 W/ TAK - 892650

Spindle Speed Settings

16

Power Source

Corded

Range of Inch Threads (TPI)

2 - 72

Spindle Bore Diameter

3-1/8 in

PreWired Voltage

230V

UL Safety

Yes

Bed Width

13-4/7 in

Swing Range (Cross Slide)

14 in

No. of Inch Threads

38

Bed Construction

Cast Iron

Cross Slide Travel

10-2/3 in

Motor Type

Brushed

Spindle Speed Range (RPM)

1600

Compound Slide Travel

5-2/5 in

Range of Metric Threads

0.4 - 14

Steady Rest Capacity

3/8 in - 7-3/4 in

No. of Metric Threads

40

Range of Cross Feeds (IPR)

0.0008 - 0.02

Swing Range (Gap)

31-1/9 in

CSA Safety

Yes

Distance Between Centers

120 in

Tool Size

1 x 1 in

Gap Length

9-5/6 in

Motor Phase

3

Range of Longitudinal Feed Rates (IPR)

0.0015-0.04 in

Spindle Taper (Tailstock)

MT-5

Horsepower

12.5

Voltage

460V

Spindle Mount Taper

Yes

Spindle Travel (Tailstock)

6-1/2 in

Drive Type

Geared Head Clutch

Follow Rest Capcacity

1/2 - 3-1/2 in

Swing Range (Bed)

21 in

ETL Safety

No

Spindle Mount

Yes

Length

182 in.

Width

44 in.

Height

68 in.

Weight

8157 lbs.

Warranty Term

3 Year
