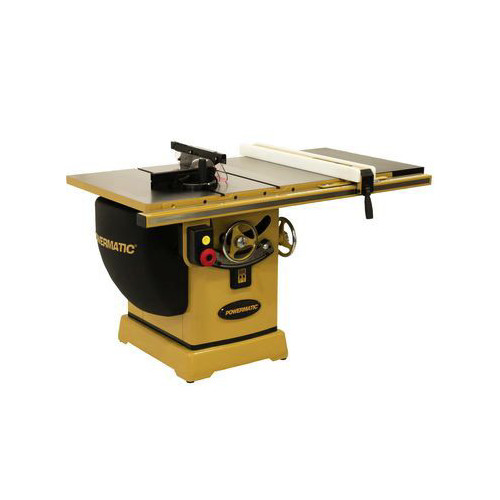

Powermatic PM23130K 2000B Table Saw - 3HP/1PH/230V 30 in. RIP with Accu-FencePowermatic Model: pwmnpm23130k
Product Features & specs :
Powermatic PM23130K 2000B Table Saw - 3HP/1PH/230V 30 in. RIP with Accu-Fence
The award winning PM2000 table saw sets a new standard for innovation with an array of patented features and massive body design. The cast iron tables are oversized, and the newly designed arbor lock lever is accessible from above the table top to eliminate the need for dual arbor wrenches. The quick-release riving knife design helps reduce the chance of kickback. The blade tilt scale features an integrated digital read out as well as adjustable angle indicators for repetitive bevel cuts. The newly designed integrated retractable hydraulic caster system mobilizes your table saw much higher than the previous model to assist when moving over thresholds. A wide stance, heavy-duty box trunnion and concave teeth on the trunnion gears promote easier raising and tilting of saw blade. Poly-V drive belt system results in quieter, more efficient power transfer from the motor to the arbor with virtually no vibration and less heat build-up. Improved built-in dust collection port with convenient access to the inside of the saw cabinet for simple clean-up. The saw has a proprietary safety switch with magnetic interlock and the stop button can be knee activated.
Integrated Digital Read Out for precise bevel cuts
Newly designed integrated hydraulic castor system with greater travel than previous model
Matching beveled edge between table and extension wings
Newly designed Arbor lock for quick and easy blade changes
Improved dust collection inside and outside of the cabinet
Quick release riving knife lever for hassle free riving knife changes
Wider stance, box trunnion design
Newly designed Accu-Fence system for precision cuts
Following strict guidelines and electrical requirements, these Powermatic PM2000B Table Saws are CSA Certified
2000B Table Saw - 3HP/1PH/230V 30 in. RIP with Accu-Fence (PWMNPM23130K)
Blade Guard System
Dado Blade Width (Max.)
Rip Capacity (Right)
Dado Blade Diameter (Max.)
Table Width (w/ Extension)
Depth of Cut (45 Degrees)
Blade Tilt Range
0 - 45 Degrees
No-Load Speed (RPM)
Depth of Cut (90 Degrees)
Max. Rip Capacity (Right)
Cast Iron Wings
Max. Rip Capacity (Left)
Rip Capacity (Left)
Q & A :
Powermatic 5 Year Warranty
WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your POWERMATIC tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.
Five Year Warranty for Non-Industrial Tools
(Vertical Panel Saws, Bandsaws, Jointers, Planers, Planer/Molder, Dust Collection, Disc Sanders, Edge Sanders, Drum Sanders, Shapers, Drill Presses, Mortisers, Dovetailers)
WHAT IS COVERED
This warranty covers any defects in workmanship or materials subject to the exceptions stated below. Cutting tools, abrasives and other consumables are excluded from warranty coverage.
WHO IS COVERED
This warranty covers only the initial purchaser of the product.
WHAT IS THE PERIOD OF COVERAGE
The general POWERMATIC warranty lasts for the time period specified in the product literature of each product.
WHAT IS NOT COVERED
The Five Year Warranty does not cover products used for commercial, industrial or educational purposes. Products with a Five Year Warranty that are used for commercial, industrial or education purposes revert to a One Year Warranty. This warranty does not cover defects due directly or indirectly to misuse, abuse, negligence or accidents, normal wear-and-tear, improper repair or alterations, or lack of maintenance.
HOW TO GET SERVICE
The product or part must be returned for examination, postage prepaid, to a location designated by us. For the name of the location nearest you, please call 1-800-274-6848.
You must provide proof of initial purchase date and an explanation of the complaint must accompany the merchandise. If our inspection discloses a defect, we will repair or replace the product, or refund the purchase price, at our option. We will return the repaired product or replacement at our expense unless it is determined by us that there is no defect, or that the defect resulted from causes not within the scope of our warranty in which case we will, at your direction, dispose of or return the product. In the event you choose to have the product returned, you will be responsible for the handling and shipping costs of the return.
HOW STATE LAW APPLIES
This warranty gives you specific legal rights; you may also have other rights which vary from state to state.
LIMITATIONS ON THIS WARRANTY
WMH TOOL GROUP LIMITS ALL IMPLIED WARRANTIES TO THE PERIOD OF THE LIMITED WARRANTY FOR EACH PRODUCT. EXCEPT AS STATED HEREIN, ANY IMPLIED WARRANTIES OR MERCHANTABILITY AND FITNESS ARE EXCLUDED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG THE IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. WMH TOOL GROUP SHALL IN NO EVENT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY, OR FOR INCIDENTAL, CONTINGENT, SPECIAL, OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OF OUR PRODUCTS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
WMH Tool Group sells through distributors only. The specifications in WMH catalogs are given as general information and are not binding. Members of WMH Tool Group reserve the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason whatsoever.
