Tuthill Transfer 12V 20 Amp Heavy-Duty 15 GPM Corded Fuel Transfer Pump Kit with Mechanical Meter and Manual Nozzle

Tuthill Transfer Model: FR1211H

Enter your email address and we'll let you know when it's available

OUT OF STOCK
Tuthill Transfer 12V 20 Amp Heavy-Duty 15 GPM Corded Fuel Transfer Pump Kit with Mechanical Meter and Manual Nozzle Tuthill Transfer Model: FR1211H

Product Features & specs :

Tuthill Transfer 12V 20 Amp Heavy-Duty 15 GPM Corded Fuel Transfer Pump Kit with Mechanical Meter and Manual Nozzle

Details

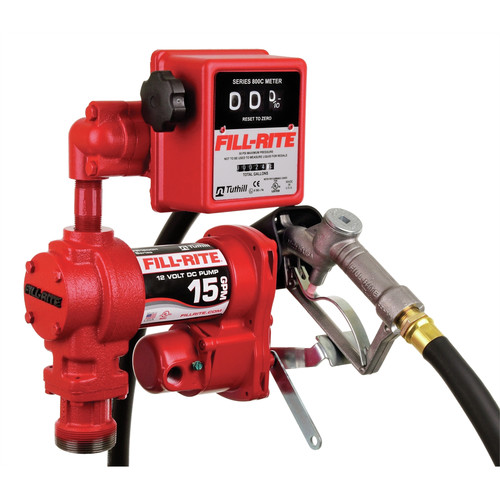

The Fill-Rite FR1211H model with NPT fittings is a 12V DC heavy-duty, cast-iron, rotary vane fuel transfer pump with an 807C mechanical meter is capable of generating up to 15 GPM. It is designed to handle flammable liquids such as gasoline, diesel, biodiesel blends up to B20, ethanol blends up to E15, kerosene, and mineral spirits. The pump motor utilizes a low amp draw and is thermally protected to prevent overheating. The FR1211H model is available with an 807C mechanical meter, 3/4 in. manual nozzle, 12 ft. fuel hose, 20 in. - 34 in. steel telescoping suction pipe, as well as other accessories. Made in the USA with a UL/cUL listed motor and limited lifetime warranty, this product is ideal for agriculture, construction, or any industry requiring mobile fuel transfer.

Features:

  • Adjustable electric junction box rotates 180 Degrees

  • Reliable, heavy-duty power switch withstands heavy abuse in rugged environments

  • Focused weight reduction while preserving expected heavy-duty performance

  • Thermally protected motor prevents overheating to maximize motor life

  • Premium paint shield for exemplary corrosion resistance

  • UL/ cUL listed motor

What’s Included:

  • 12V 20 Amp HD Fuel Transfer Pump - FR4211H

  • 807C Mechanical Meter

  • 3/4 in. Manual Nozzle

  • 12 ft. Fuel Hose

  • 20 - 34 in. Steel Telescoping Suction Pipe

Amperage

20

UL Safety

Yes

Construction

Cast Iron

Inlet Size

1 in

Type

Transfer Pump

Max. Air Pressure (PSI)

16

Operating Pressure (PSI)

16

Max. Output Pressure (PSI)

16

Air Inlet Size

1 in

Voltage

12V

Fitting Type

NPT

Material

Cast Iron

Length

22 in.

Width

20 in.

Height

10 in.

Weight

38.55 lbs.

Warranty Term

2 Year
