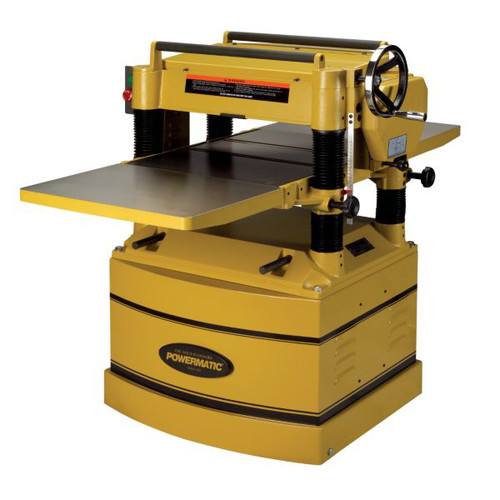

Powermatic 209HH-3 20 in. 3-Phase 5-Horsepower 230/460V Planer with Byrd Shelix CutterheadPowermatic Model: pwmn1791316
Product Features & specs :
Powermatic 209HH-3 20 in. 3-Phase 5-Horsepower 230/460V Planer with Byrd Shelix Cutterhead
The heavy-duty 209HH-3 Planer offers performance and value, and is loaded with standard features not found on other machines in its class. The powerful 5 HP motor and 20 in. planing capacity will handle the most demanding work. The 5 in. dust port connects easily to any dust collector. The Byrd Shelix Helical cutterhead is sharpened on four sides, allowing for indexing at a speed of 5,000 RPM. Anti-kickback fingers and pressure bar are located in close proximity to the cutterhead for an exceptional finish. Solid cast-iron base, table and head are designed for production. A 2-speed oil bath gearbox transmits full power to feed rollers and facilitates fast speed changes at 24 and 31 FPM. The gearbox can be changed to 4-speed with the included gear to run lower speeds of 16 and 20 FPM.
The Byrd Shelix helical cutterhead and insert knives provide a smoother, quieter cut and a finer finish than conventional or spiral knife systems
5 HP TEFC motor
20 in. planing capacity
Fully enclosed base cabinet with integrated casters
Cast-iron table with extensions creates a big 55-1/2 in. x 20 in. working area
Four speeds: 24 and 31 FPM and 16 and 20 FPM with gear change
Feed rollers and cutterhead supported by full cast-iron head assembly
209HH-3 20 in. Planer - 1791316
Byrd Shelix Planer Cutterhead
14 / 7
Feed Rate - Planing (FPM)
No-Load Speed (CPM)
Material Thickness (Max.)Material Length (Min.)
8 in / 6-3/4 in
Cutterhead Speed (RPM)
Planing Depth (Max.)
Planing Width (Max.)
No. of Knives
Feed Rate - Moulding (FPM)
Dust Port Size
Q & A :
Powermatic 5 Year Warranty
WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your POWERMATIC tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.
Five Year Warranty for Non-Industrial Tools
(Vertical Panel Saws, Bandsaws, Jointers, Planers, Planer/Molder, Dust Collection, Disc Sanders, Edge Sanders, Drum Sanders, Shapers, Drill Presses, Mortisers, Dovetailers)
WHAT IS COVERED
This warranty covers any defects in workmanship or materials subject to the exceptions stated below. Cutting tools, abrasives and other consumables are excluded from warranty coverage.
WHO IS COVERED
This warranty covers only the initial purchaser of the product.
WHAT IS THE PERIOD OF COVERAGE
The general POWERMATIC warranty lasts for the time period specified in the product literature of each product.
WHAT IS NOT COVERED
The Five Year Warranty does not cover products used for commercial, industrial or educational purposes. Products with a Five Year Warranty that are used for commercial, industrial or education purposes revert to a One Year Warranty. This warranty does not cover defects due directly or indirectly to misuse, abuse, negligence or accidents, normal wear-and-tear, improper repair or alterations, or lack of maintenance.
HOW TO GET SERVICE
The product or part must be returned for examination, postage prepaid, to a location designated by us. For the name of the location nearest you, please call 1-800-274-6848.
You must provide proof of initial purchase date and an explanation of the complaint must accompany the merchandise. If our inspection discloses a defect, we will repair or replace the product, or refund the purchase price, at our option. We will return the repaired product or replacement at our expense unless it is determined by us that there is no defect, or that the defect resulted from causes not within the scope of our warranty in which case we will, at your direction, dispose of or return the product. In the event you choose to have the product returned, you will be responsible for the handling and shipping costs of the return.
HOW STATE LAW APPLIES
This warranty gives you specific legal rights; you may also have other rights which vary from state to state.
LIMITATIONS ON THIS WARRANTY
WMH TOOL GROUP LIMITS ALL IMPLIED WARRANTIES TO THE PERIOD OF THE LIMITED WARRANTY FOR EACH PRODUCT. EXCEPT AS STATED HEREIN, ANY IMPLIED WARRANTIES OR MERCHANTABILITY AND FITNESS ARE EXCLUDED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG THE IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. WMH TOOL GROUP SHALL IN NO EVENT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY, OR FOR INCIDENTAL, CONTINGENT, SPECIAL, OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OF OUR PRODUCTS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
WMH Tool Group sells through distributors only. The specifications in WMH catalogs are given as general information and are not binding. Members of WMH Tool Group reserve the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason whatsoever.
