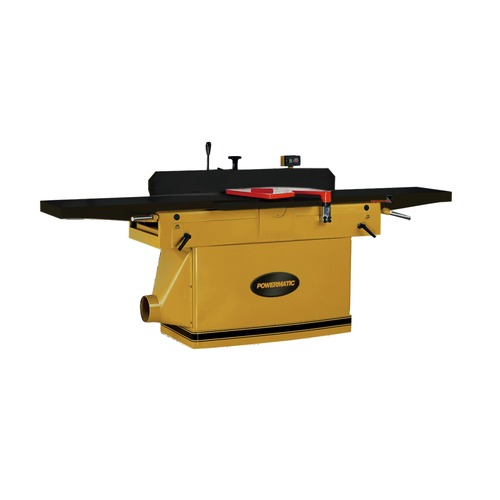

Powermatic PJ1696T 230V 3-Phase 16 in. Helical Cutterhead Parallelogram Jointer with ArmorGlide Powermatic Model: PM1-1791283T
price for vip customer
$13,029.99

OR PAY WITH

Product Features & specs :

Powermatic PJ1696T 230V 3-Phase 16 in. Helical Cutterhead Parallelogram Jointer with ArmorGlide

Details

Now featuring ArmorGlide Technology that is low-friction and rust-resistant, the Powermatic PJ1696T 16 in. Jointer offers big capacity, and performance in a machine that is loaded with features. Large center-mounted fence assembly adjusts easily on a rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45 degrees in and out, and a positive stop for perfect 90 degrees angles. The parallelogram design keeps the table in close proximity to the cutter head for an improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty. The specially-designed solid steel helical cutter head consists of 6 rows of precision-ground staggered inserts. This system makes fast work of knife changing and never needs adjustment. The heavy-duty 7.5 HP motor delivers all the power you need for even the biggest jobs.

Features:

  • ArmorGlide Technology gives you a low-friction, industrial-grade coating on the work surface that is rust resistant, requires less maintenance, and gives you more control

  • Cast iron fence bevel controls include positive stops at 45 degrees and 90 degrees

  • Full size rabbeting table supports large workpieces for rabbets up to 3/4 in. deep

  • Helical cutterhead features (58) 2-sided knife inserts that reduce noise, eliminate adjustments, and speed knife changes

  • Large 16 in. x 96 in. precision ground cast iron table surface for maximum support and fine finish

  • Parallelogram construction maintains close table-to-cutterhead proximity and ensures table parallelism

  • Rack and pinion adjustable cast iron fence assembly allows for smooth fence positioning without play

What’s Included:

  • PJ1696T 230V 3-Phase 16 in. Helical Cutterhead Parallelogram Jointer with ArmorGlide - PM1-1791283T

Power Source

Corded

Fence Length

47-1/4 in

PreWired Voltage

230V

Wifi compatibility

No

Fence Height

5-1/4 in

Bluetooth Compatibility

No

Cutterhead Speed (RPM)

5200

Cutterhead Diameter

4 in

Fence Tilt (Rear)

45 Degrees

No. of Knives

58

CSA Safety

No

Fence Tilt (Front)

45 Degrees

Dust Port Size

6 in

Rabbeting Capacity

3/4 in

Motor Phase

3

Horsepower

7.5

Voltage

230V

Max. Cut Capacity (Depth)

3/4 in

Max. Cut Capacity (Width)

16 in

Cutterhead Style

Helical

Length

46 in.

Width

96 in.

Height

43 in.

Weight

1280 lbs.

Warranty Term

5 Year
