Associated Equipment 12V 0-500 Amp Carbon Pile Battery Load Tester and 12V/24V Electrical Systems Tester

Associated Equipment Model: 6042

Enter your email address and we'll let you know when it's available

OUT OF STOCK
CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Diisononyl phthalate (DINP), which is known to the State of California to cause Cancer. For more information go to www.P65Warnings.ca.gov.
Associated Equipment 12V 0-500 Amp Carbon Pile Battery Load Tester and 12V/24V Electrical Systems Tester Associated Equipment Model: 6042

Product Features & specs :

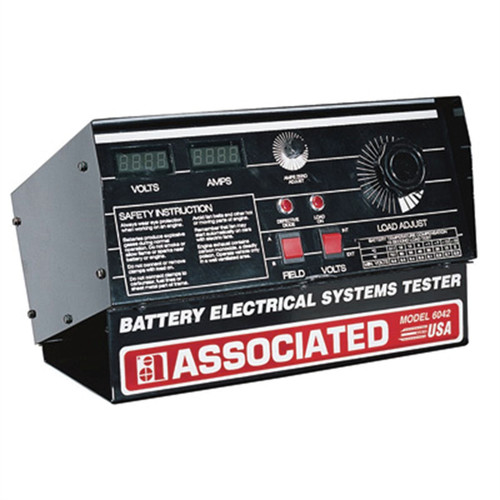

Associated Equipment 6042 12V 0-500 Amp Carbon Pile Battery Load Tester and 12V/24V Electrical Systems Tester

Details

Designed with the highest quality and versatility in mind. Interprets data from the charging/starting system on an easy-to-read LED display voltmeter and ammeter. Also shows +/- amps for easy diagnosis of current leakage problems. The 500 Amp carbon pile variable load capability provides accurate load testing for up to 1,000 CCA batteries. A great time-saver for testing electrical systems on 12V, 12V/24V, and 24V vehicles. Coated circuit board prevents damage and meter inaccuracy due to moisture and dirt in most shop environments. Circuits are protected against reverse voltages due to incorrect hookups. “LOAD ON” light indicates the load is activated. It is spring-loaded to shut off automatically. Made in USA.

Features:

  • Test batteries up to 1,000 CCA

  • Interprets data from the charging/starting system on easy-to-read LCD displays

  • Shows positive and negative amps for easy diagnosis of current leakage problems

  • 0-500 Amp variable carbon pile load tester

  • Unique curved carbon discs ensure maximum contact, fewer hot spots, smoother operation and longer life

  • Heavy-duty single extruded leads for testing up to 15 ft. apart

  • Test electrical systems on 12V/24V systems

  • Test all battery types

  • Ideal for testing remotely mounted batteries accurately

  • Made in USA of US and Global Components

What’s Included:

  • 12V 0-500 Amp Carbon Pile Battery Load Tester and 12V/24V Electrical Systems Tester - 6042

Amperage

500

Wifi compatibility

No

Bluetooth Compatibility

No

Case Included

No

Weight

67 lbs.

Warranty Term

1 Year
