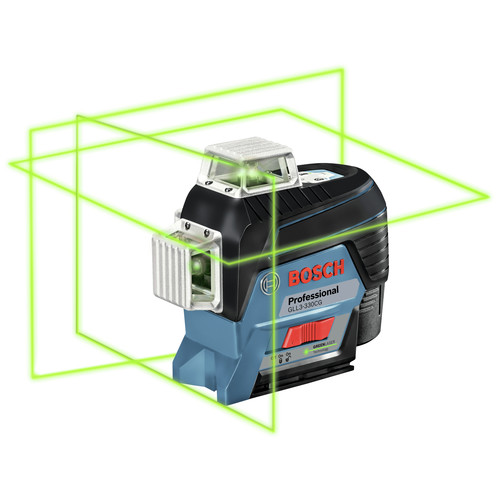

Bosch GLL3-330CG 360-Degrees Connected Green-Beam Three-Plane Leveling and Alignment-Line Laser

Model: bshngll3-330cg
ratings        (32) Write A Review

This item is temporarily out of stock. Want an email when it’s back in stock?

Bosch GLL3-330CG 360-Degrees Connected Green-Beam Three-Plane Leveling and Alignment-Line Laser Model: bshngll3-330cg

Product Features & specs :

Bosch GLL3-330CG 360-Degrees Connected Green-Beam Three-Plane Leveling and Alignment-Line Laser

The Bosch GLL3-330CG 360 degrees Connected Green-Beam Three-Plane Leveling and Alignment-Line Laser provides an all-in-one level and alignment solution for one-person job setup. The leveling laser generates three green-beam laser chalk lines in 360 degrees laser planes – one horizontal and two vertical. With Bluetoothconnectivity, users can control the setup of the laser from across the room with their smart phone and the free Bosch Leveling Remote App. The laser offers dual power technology, employed the included Bosch 12V Max Lithium-ion battery for extended runtime, or with four AA alkaline batteries. The laser has a working range of up to 200 ft.diameter, and with pulse mode the range extends up to 330 ft.(diameter) with the optional LR8 receiver. This laser features VisiMax Technology to drive maximum line visibility, CAL Guard for calibration assurance and robust over-molded construction to withstand rainy or dusty jobsite conditions.
  • Ultimate all-in-one leveling and alignment laser – facilitates one-person job setup with connected capability, dual-power technology and long working range
  • Class 2 Laser Product, < 5mW Power Output, Wavelength 500-540 nm
  • Bright green-beam laser – up to 4X brighter than standard red beams, the leveling laser has a working range of up to 200 ft.diameter
  • Built-in VisiMax technology – monitors power consumption to maximize line visibility and extend battery life
  • Bluetooth degrees connectivity – controls the operation of the laser from across the room with their smart phone and the free Bosch Leveling Remote App
  • Dual power technology – utilizes the included Bosch 12V Max Lithium-ion battery or four AA alkaline batteries
  • Pulse mode – extends the working range up to 330 ft.(diameter) and/or in bright lighting, using the optional LR8 receiver
  • Smart Pendulum System – self levels and indicates out-of-level condition up to 4 degrees
  • Manual mode – locks lines for use at any angle
  • BM 1 positioning device – clips to multiple surfaces, stands on floor with retractable ft. and mounts to drywall or wood with screws for quick and easy setup
  • Bosch Leveling Remote App – free to download and free to use, this app turns the leveling laser and receiver mode on and off, select the laser planes, adjust line visibility and provide battery and level alerts
  • Accuracy: - 3/32” at 30 ft - Applies to four horizontal intersection points. Plus use-dependent deviation.
What’s Included:
  • GLL3-330CG 360 Degrees Connected Green-Beam Three-Plane Leveling and Alignment-Line Laser
  • BAT414 12V Max Battery;
  • BC330 12V Max Charger
  • BM 1 Positioning Device
  • Laser Target Plate
  • AA1 Alkaline Battery Adapter
  • Hard Carrying Case
  • Heavy-Duty Pouch
6.4 in.
3.3 in.
5.8 in.
2 lbs.
Accuracy Margin (Horizontal)
+/- 3/32 in
Accuracy Margin (Vertical)
+/- 3/32 in
Accuracy Margin Distance (Horizontal)
30 ft
Accuracy Margin Distance (Vertical)
30 ft
Batteries Included
Battery Type
Bluetooth Compatibility
Case Included
Case Type
Charger Included
Effective Range (Visual)
200 ft
Laser Class
Class FDA IIa
Laser Color
Laser Diode
500 - 540 nm
Leveling Function
Power Source
Wifi compatibility

Reviews :

4.4 / 5.0
32 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
Would you recommend this product?
Yes (4)
Easy To Use (4)
Battery Longevity (if applicable) (2)
Ergonomic Design (1)
Powerful (1)
Best Uses
Frequent Use (2)
Jobsite (2)
Small Projects (1)
The Best of the Best!
By far, this laser is the Best Of The Best! Hands Down! I have used a Laser Level every day for as long as I can remember!! I’m a Industrial PipeFitter! This is by far, one of the best investments you will make!
February 3, 2020
Originally posted at
Bought it for "coolness" / Discovered usefulness
I was in the middle of a major renovation project and I was buying Bosch tools like mad. I confess that bought this laser tool more as a novelty... I really didn't think that I would find much use for it. Wow was I wrong! We used it to set stud walls, level ceilings, frame door openings, etc. What a time saver! Part of our project was renovating both of my client's bathrooms. We used it during the electrical and plumbing rough-in to precisely set electrical boxes and pipe nipples so that everything was in perfect alignment. When you walk into their finished bathrooms, vanitys, mirrors, wall sconces, switches, outlets are all perfect positioned. I am currently putting my laser to work on my own bathroom renovation. What a great tool!
October 14, 2019
Originally posted at
Worked amazingly for 2 months, then one laser died
I used it for a total of about 6 days and I loved it until one of the lasers failed. I am surprised that a Bosch product failed so quickly and am frustrated that I must have it repaired.
July 25, 2019
Originally posted at
Not Quite Awesome
After receiving this laser I tested the unit around the house and was pleased with the features. After a few weeks I finally had a chance to use it for real layout at work. First impression, unless you do all your work in dimly lit, dark job sites you will have a tough time seeing the lines. It's just not that bright. I had to shut down the lights in a warehouse. I'm finding it hard to justify the money spent on this laser.
The BM-1 positioning device seemed capable, but in reality it's not very functional. When the laser is threaded on the mount it tightens to the GLL but still spins on the BM-1 making it more susceptible to being moved than if you just set it alone on the floor. Seem like an odd way to execute this feature. The BM-1 has many different attachment options and just quickly clamping it to anything more than an 1/8" or so thick isn't one of them. What a shame. It would have been nice to clamp on to something and use the fine adjustment to set a level line.
I'm just not sure if I should return it or just eat the high cost and hope to find enough tasks where it's very specific mounting options will be available.
April 6, 2019
Originally posted at
Would you recommend this product?
Easy To Use
Battery Longevity (if applicable)
Worth its weight in gold!
Your imagination is the limit in extracting maximum value from this tool. As a commercial contractor i use it for everything from layout to finish. I own three, and they are among the best investments I have made.
February 21, 2019
1 year ago
Describe Yourself:
Laser works great ! batteries won't come out!
Works great in LED lighted rooms. You can see the green light perfectly. But the batteries don't come back out. I to return it !
February 11, 2019
Originally posted at
Throw away laser if if tips over on a tripod
Laser on tripod flipped over, hitting slab and shattering 2 laser die cast shields and glass. Not jobsite tough and weak protection.
December 31, 2018
Originally posted at
Would you recommend this product?
Easy To Use
Ergonomic Design
Best Uses
Frequent Use
Small Projects
Bosch best laser.
I love the bosch laser. Prette solid tool, plus a phone app that help a lot.
December 15, 2018
1 year ago
Describe Yourself:
Great clarity in the green line.
The laser is everything it was advertised to be. The beams were fine and clear and extended to the 200' as advertised. I would buy this laser again!
December 15, 2018
Originally posted at
GLL3-300GC Arrived 2 days ago
Nice unit, bright tight lines, pleased it's smaller that I thought it would be and easier to see lines. Easy to use and carry on job and in truck. Don't have a 16' room yet so I haven't checked accuracy as per manual but tested with my best spirit level and it looks good. One thing in manual confused me and I haven't tested, I think it says if I have auto leveling off (locked and "In cross-line operation, the two laser lines do not necessarily run at a right angle to each other". Makes sense I guess if you have the unit at a skew angle to the services but I don't know if that is what they are talking about. Also haven't tested the bluetooth, found out my phone OS is too old (phone is really old) but I look forward to that in the future.
December 6, 2018
Originally posted at

Q & A :

Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 3 questions Browse 3 questions and 4 answers
can this laser plumb?
A shopper on Jun 10, 2018
BEST ANSWER: Very precisely
As a follow up to the plumb question, the pictures or descriptions don't show the ability to transfer, let's say, a point from floor to the ceiling. Something I need all the time. For example laying out recessed lights on the floor first and then transferring them to the ceiling. Does it do that?
A shopper on Feb 25, 2019
BEST ANSWER: The planes created by the front and side beams will intersect on the floor and ceiling. This is effectively a vertical point to point. Also, the front and top beams form planes that will intersect horizontally, (on the walls).
Warranty. And if not do you sell coverage?
Hector F on May 3, 2019
BEST ANSWER: Robert Bosch Tool Corporation ("Seller") warrants to the original purchaser only, that all Bosch lasers and measuring tools will be free from defects in material or work­manship for a period of one (1) year from date of purchase. Bosch will extend warranty coverage to two (2) years when you register your product within eight (8) weeks after date of purchase. Product registration card must be complete and mailed to Bosch (postmarked within eight weeks after date of purchase), or you may register on-line at

If you choose not to register your product, a one (1) year limited warranty will apply to your product.
