Bosch MRP23EVS Plunge-Base Router

Model: bshnmrp23evs
        (16) Write A Review

We’re sorry, but this item is no longer available.

Bosch MRP23EVS Plunge-Base Router Model: bshnmrp23evs

Product Features & specs :

Bosch MRP23EVS Plunge-Base Router

Details

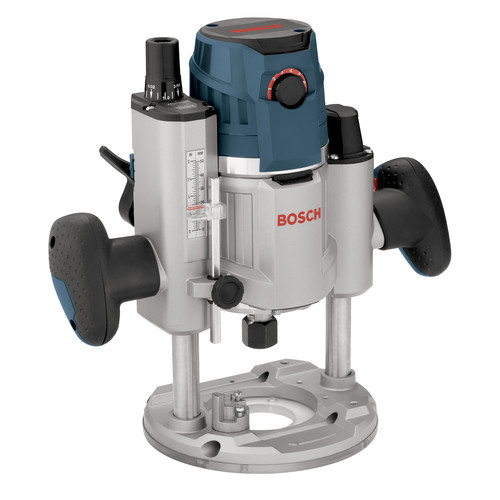

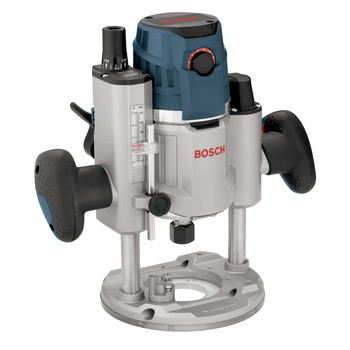

The Bosch MRP23EVS 2.3 HP Electronic Plunge-Base Router gives the user control with the trigger-control system that has a power switch in the plunge-base's handle. This router produces exacting cuts every time, thanks to the Afterlock microfine bit-depth system, a powerful 15-amp motor and adjustable speed settings. Users can cut along the intended cutline using dovetail fixtures, templates and other guidance devices. A precision-centering system and 3.32-in. base opening enable swift maneuverability along the intended path. This tool is smooth, with Constant Response circuitry, as well as a soft-start feature.
Features:
  • Trigger Control System - Trigger power switch (with lock-on button) conveniently located in handle for enhanced control
  • Afterlock Microfine Depth Adjustment - Easy and percise adjustment at any plunge setting
  • Smooth plung Action, Spring-Lock Plunge Lever, and Depth Rod - For easy and percise plunge routing
  • LED Lighting - For enchanced visiblity in bit area
  • Precision Centering Design - Makes it easy to keep bit on intended cutline when using jigs and other guidance devices
  • Two-Stage Quick Clamp System - For fast tool-free conversion
  • Soft-start - Reduces start-up torque
  • Variable-speed dial - For matching speed to workpiece and task
  • Cord Swivel - For added mobility
  • Contoured soft grip handles - Provides enhanced control and comfort
What’s Included:
  • Plunge-Base Router - MRP23EVS
  • Motor
  • MRP001 Plunge Base
  • 1/4 in. and 1/2 in. Self-Releasing Collets
  • Bit Wrenches
Length
6.75 in.
Width
12.6 in.
Height
12 in.
Weight
12.6 lbs.
Amperage
15
Base Dimensions
6-11/16 x 6-11/16 in
Base Opening
3-5/16 in
Base Type
Plunge
Bluetooth Compatibility
No
CSA Safety
Yes
Collet Capacity
1/4 in, 1/2 in
Cord Length
10 ft
Depth Adjustment System
Micro-Fine Depth Adjustment
ETL Safety
No
Handle Style
Dual Knob
Horsepower
2.3
Motor Type
Brushed
No-Load Speed (RPM)
10000-25000
Power Source
Corded
Shank Size
1/4 in, 1/2 in
Speed Controls
Yes
Speed Settings
Variable
Switch Type
Trigger
UL Safety
Yes
Voltage
120V
Wifi compatibility
No

Reviews :

4.6 / 5.0
16 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
13
1
1
1
0
Would you recommend this product?
Yes (6)
Pros
Easy To Use (4)
Powerful (3)
Cons
Heavy (1)
Smooth and powerful
I am not much of a router user. I have had a few of them. In comparison this machine is head and shoulder above the others I have. The first time I plugged it in and hit the switch I had to actually look to see if it started up. Yes, the soft start is that good. The trigger on the handle is one of the best things ever done to a router. I feel so much safer not having to remove a hand from the machine to start and stop it. Everything is smooth and tight and functions well. Overall I would say that it incorporates some great engineering features that make it a pleasure to use.
September 20, 2019
Originally posted at
Good Router But With One Deficiency
I purchased this router because of the brand name - I always thought Bosch was at the top of the quality list. The only negative (very negative) comment I have is that the "plunge" is not smooth. The advertisement is that the plunge will side very easily (effortlessly) but that isn't the case on mine. I weigh 220 lbs. and almost have to sit on top of the motor to get it to go down (and, yet I have the release pushed back).
January 11, 2019
Originally posted at
Capable Plunge Router
Purchased this router to surface live edge slabs using Nick Offerman rig from Fine Woodworking. The unit has plenty of power to drive a 1 3/4" diameter bit through walnut without any trouble. The trigger power switch in the handle is great. I had some initial trouble with the plunge slipping until I realized you have to ensure the release lever is secured in the vertical position. Overall, this is a quality router at a relatively affordable price.
October 24, 2018
Originally posted at
Buyer beware
Great router with a nice balance, controllability and power... BUT; if you are planning on installing this in any(!) router table lift system, forget it. You can mount it in a table, but not in a lift system as the router base needs to be one the router due to the the with being on the base itself. Use the internet for possible solutions if this you intended use for further explanations. Sad that Bosch overlooked this issue. Recommended with reservations.
September 9, 2017
Originally posted at
Highley recommend
My first and only router. Love it...perfect for what ever I want to do
July 18, 2017
Originally posted at
Best Mid-sized Router!
I purchased the plunge base and it is light weight, powerful and full of features. I especially like the fine variable adjust to home in on "just right depth." Feels good in the hand. The price was exceptional for a router of this quality.
June 22, 2017
Originally posted at
Solid Build
Been putting some miles on this thing and honestly it's still performing like day 1.
June 21, 2017
Originally posted at
Great handling, easy to use
I've had a chance to put this router through it paces and it performs wonderfully. Easy to setup, change bits, set depth, and operate. Would buy again if I needed it.
June 20, 2017
Originally posted at
Would you recommend this product?
Yes
Pros
Easy To Use
Powerful
Powerful Easy to Operate
Good
July 21, 2016
Amazing balance
Bought this just today, loaded a 25mm radius round over bit into it (had to plunge through the base plate- easy fix, and went routing! The features make it a breeze to use. The afterlock micro adjustment is perfect, the spring loaded plunge lever a dream, the constant speed under load, amazing motor balance, just everything about it was a pleasure to use!
July 1, 2016
Originally posted at

Q & A :

Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 3 questions Browse 3 questions and 2 answers
could i buy it without the base?
A shopper on May 27, 2017
Is it spring loaded? Meaning when unlocked will it spring down the base?
A shopper on May 31, 2017
BEST ANSWER: yes it has a hefty spring
how does this work upside down in a router table?
smokey on Mar 14, 2017
BEST ANSWER: For operating instructions, please refer to your manual.
