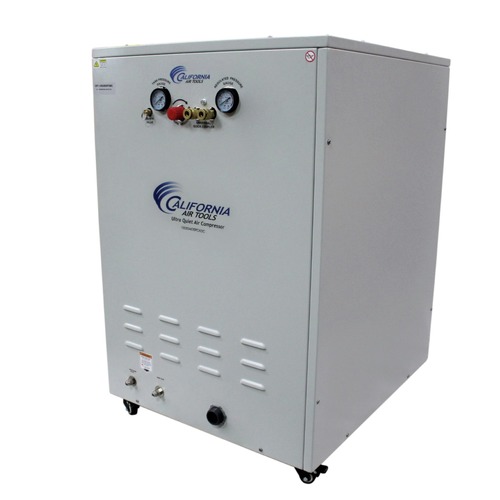

California Air Tools CAT-10020HDSPCADC 110V 2 HP 1-Phase 10 Gallon 58 dB Noise Level Oil-Free Air Compressor in Sound Proof Cabinet with 98% Air Drying System and Automatic Drain Valve

California Air Tools Model: CAT-10020HDSPCADC

Enter your email address and we'll let you know when it's available

OUT OF STOCK
CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Benzene, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
California Air Tools CAT-10020HDSPCADC 110V 2 HP 1-Phase 10 Gallon 58 dB Noise Level Oil-Free Air Compressor in Sound Proof Cabinet with 98% Air Drying System and Automatic Drain Valve California Air Tools Model: CAT-10020HDSPCADC

Product Features & specs :

California Air Tools CAT-10020HDSPCADC 110V 2 HP 1-Phase 10 Gallon 58 dB Noise Level Oil-Free Air Compressor in Sound Proof Cabinet with 98% Air Drying System and Automatic Drain Valve

Details

The California Air Tools 10020HDSPCADC Ultra Quiet, 98% Ultra Dry Oil-Free Air Compressor with Air Drying System, in Sound Proof Cabinet, is designed to be one of the quietest 2 HP air compressors in the industry, producing only 58 decibels of sound. The powerful 2.0 HP motor operates at only 1,680 RPM, creating less noise and less wear. The SP Series of Ultra Quiet Air Compressor Motors has been designed to increase duty cycle and allow for longer continuous run times. The oil-free dual piston pump system is engineered for high performance and durability. The CAT-10020HDSPCADC air compressor has an oil-free dual piston pump designed to have a life cycle before wear of 3,000-plus hours. The oil-free pump allows for use in a variety of temperatures (cold starts) and eliminates oil from being in the air. The large 10-gallon horizontal steel air tank is just the right size to fit under a bench, desk, or cabinet. The 98% air dryer is specially designed to remove up to 98% of the water vapor from the air to protect sensitive tools and machinery.

PDP performance range (-20' Fahrenheit to -51' Fahrenheit). Air Quality: ISO 8573 - Class 2.3.1.

To dry the air from the air compressor, an aftercooler and 98% air dryer are utilized. The aftercooler is a heat exchanger that cools the discharge air from the air compressor. Water vapor from the compressed air is condensed into liquid form and pushed into the air dryer. The easy-to-replace spin-on air dryer cartridge contains a regenerating high-temperature molecular sieve desiccant to dry the air. This cartridge dryer has a lifespan of 4,000 hours or 2 years before replacement. The California Air Tools EZ-1 automatic drain valve is designed to eliminate the need for manually draining the air compressor tank. The manually set timer allows you to set both the frequency and duration of the draining process. The sturdy, large steel cabinet on caster wheels makes the unit easier to move and helps reduce the noise level. The interior of the cabinet is lined with acoustic soundproofing foam insulation to reduce the air compressor's noise and vibration. The two latching door handles allow for easy access to the air compressor. The two exhaust fans are designed to remove air from the cabinet, allowing for a cooler-running air compressor. This air compressor is ideal for anyone working indoors (office, shop, store, warehouse, or home) where noise is a major concern. Designed for those seeking power, 98% dry air with low dew point airflow, and less maintenance—with at least 50% less noise! Ideal for dental, milling, biotech, surgical, manufacturing clean rooms, restaurant, and general engineering applications.

Features:

  • Ultra quiet - only 58 decibels

  • Oil-free pump (Class 1) - cleaner air for better tool operation (less maintenance and costs)

  • Two pressure control gauges

  • Two female industrial push-to-connect quick connector air ports (1/4 in. NPT)

  • 0.01 micron prefilter

  • 5.0 micron (Class 2) air filter and regulator

  • Condor pressure switch

  • Thermal overload protector

  • 125 PSI maximum pressure

  • 110V / 60 Hz / Single Phase

What’s Included:

  • 110V 2 HP 1-Phase 10 Gallon 58 dB Noise Level Oil-Free Air Compressor in Sound Proof Cabinet with 98% Air Drying System and Automatic Drain Valve - 10020HDSPCADC

  • Owner's Manual

Power Source

Corded

Motor Type

Single Phase

Tank Construction

Steel

Tank Capacity

10 gal

Operating Pressure (PSI)

125

Horsepower

2

Air Consumption at 90 PSI (SCFM)

5.30

Voltage

110V

Air Consumption at 40 PSI (SCFM)

6.40

Noise Rating (dBA)

58

Length

26 in.

Width

30 in.

Height

39.5 in.

Weight

221 lbs.

Warranty Term

1 Year
