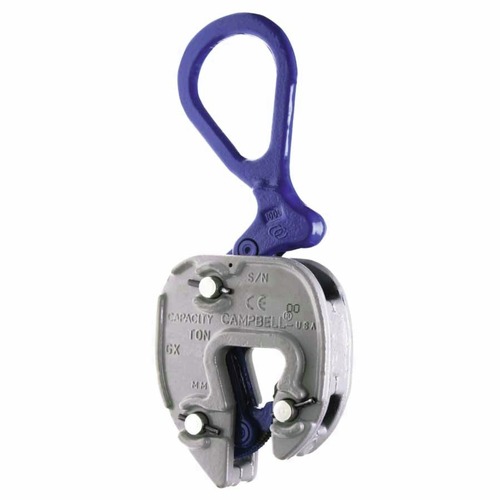

Campbell 1/16 in. - 3/4 in. Grip Vertical and Horizontal to Vertical GX Plate Lifting Clamp

Campbell Model: 6423005
Price reduced from $717.99 to Save 5% $679.99
promo-icon

Save up to 63% on Jobsite Essentials! Deals on Tool Storage, Measuring Tools, Hand Tools and More! See Details

See More
See Less
free shipping
FREE shipping on orders $49+.
free shipping
This item ships directly from manufacturer in 3-5 days
alert warning icon

OR PAY WITH

Campbell 1/16 in. - 3/4 in. Grip Vertical and Horizontal to Vertical GX Plate Lifting Clamp Campbell Model: 6423005
price for vip customer
Price reduced from $717.99 to Save 5% $679.99

OR PAY WITH

Product Features & specs :

Campbell 1/16 in. - 3/4 in. Grip Vertical and Horizontal to Vertical GX Plate Lifting Clamp

Details

Shackle and "G" link combined into one part for fewer stress points and less chance of side loading damage. The pad should be replaced at the same time as the cam. 100 Percent proof tested with certificate of test attached to each clamp. 3-1/16 in. Neck depth, load activated locking type.

Features:

  • GX clamp is entirely drop forged and heat treated

  • Can be used for both vertical and horizontal-to-vertical lifting

  • Exclusive feature is a patented wear indicator system

  • When any of cam's straight line, convex teeth are flattened between unique wear indicator grooves, it is time to change the cam

  • Shackle and "G" link combined into one part for fewer stress points and less chance of side loading damage

  • Note: The pad should be replaced at the same time as the cam

  • Clamps are 100% Proof Tested and Certificate of Test supplied with each clamp

What’s Included:

  • 1/16 in. - 3/4 in. Grip Vertical and Horizontal to Vertical GX Plate Lifting Clamp - 6423005

Construction

Steel

Clamp Pressure

2000 lbs

Weight Capacity

1 Ton

Opening Capaciy (Max.)

2 in

Length

11.25 in.

Width

4.75 in.

Weight

8 lbs.
