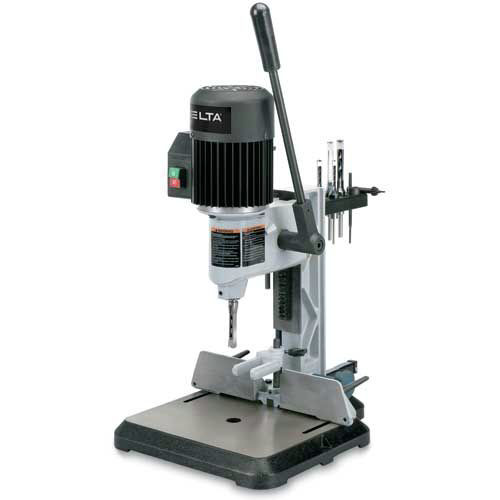

Delta 14-651 Deluxe Mortiser

Delta Model: dwwn14-651
ratings        (5) Write A Review

We’re sorry, but this item is no longer available.

Delta 14-651 Deluxe Mortiser Delta Model: dwwn14-651

Product Features & specs :

Delta 14-651 Deluxe Mortiser

Details
Deluxe Mortiser
Features:
  • Deluxe Mortiser - 14-651
  • 1/2 HP, 120V, 60 Hz Single Phase Induction Motor
  • 3/8 in. Capacity Chuck & Key
  • 1/2 in. Mortising Chisel and Bit
  • 3/8 in. Mortising Chisel and Bit
  • 5/16 in. Mortising Chisel and Bit
  • 1/4 in. Mortising Chisel and Bit
  • Tool & Chisel Holder
  • Riser Block
What’s Included:
  • Deluxe Mortiser - 14-651
  • 1/2 HP, 120V, 60 Hz Single Phase Induction Motor
  • 3/8 in. Capacity Chuck & Key
  • 1/2 in. Mortising Chisel and Bit
  • 3/8 in. Mortising Chisel and Bit
  • 5/16 in. Mortising Chisel and Bit
  • 1/4 in. Mortising Chisel and Bit
  • Tool & Chisel Holder
  • Riser Block
Power Source
Corded
Amperage
9.8
UL Safety
No
Chisel Shank Capacity (in.)
1/4 in x 1/4 in / 5/16 in x 5/16 in / 3/8 in x 3/8 in / 1/2 in x 1/2 in
CSA Safety
Yes
Wifi compatibility
No
Head Stroke (in.)
5 in
Chisel Center to Fence (in.)
3-3/4 in
Bluetooth Compatibility
No
Table Size
16-1/4 in x 13-1/2 in
Motor Phase
1
Horsepower
0.5
Voltage
120V
Motor Type
Brushed
Spindle Speed (RPM)
1725
ETL Safety
No
Length
16.25 in.
Width
13.5 in.
Height
16.25 in.
Depth
16.25 in.
Weight
55 lbs.
Warranty Term
5 Year

Reviews :

4.6 / 5.0
5 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
3
2
0
0
0
Recommendations
Yes, I would recommend this to a friend (5)
Pros
Easy To Use (5)
Powerful (2)
Ergonomic Design (1)
Cons
Heavy (1)
Best Uses
Frequent Use (1)
Would you recommend this product?
Yes
Pros
Easy To Use
Ergonomic Design
Top rated in American Woodworker magazin
It would be helpful to have a mark on the chisels and on the machine to line up so that the chisel is parallel to the fence.

Also, the specification sheet should specify the holder diameter. I learned the hard way that the Powermatic chisel doesn't fit the Delta machine.
January 31, 2013
Would you recommend this product?
Yes
Pros
Easy To Use
Powerful
Delta Deluxe Mortiser
Very functional and solid.
December 19, 2012
Would you recommend this product?
Yes
Pros
Easy To Use
Long road with a good end
Unit is good for light to moderate use. CPO shipped it broken, but made good right away.
August 12, 2012
Would you recommend this product?
Yes
Pros
Easy To Use
Cons
Heavy
Meets basic needs for mortise work.
Used this tool to make mortise & tenon construction, in my custom wooden trays.
September 14, 2011
Would you recommend this product?
Yes
Pros
Easy To Use
Powerful
Best Uses
Frequent Use
Very satisfied with the delta mortiser
Use this product for cabinetmaking it is very well made very satisfied with the result's.
August 2, 2011

Q & A :

Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 2 questions Browse 2 questions and 2 answers
ould I get an operators manuel?
sherm on May 9, 2015
BEST ANSWER: Please contact the manufacturer direct at 1-800-368-1487 for a manual.
are there any replacement drill bits available for deluxe mortise?
Joe on Feb 8, 2015
BEST ANSWER: Yes, we have several replacement drill bits available for this unit. For instance, look at model #'s JETN708585, DWWN17-004, or DWWN17-001.

Warranty:

Warranty for all Delta Machinery Products - Five Year Limited New Product Warranty (180 days for reconditioned products)

DELTA will repair or replace, at it’s expense, and it’s option, any new DELTA machine, machine part, or machine accessory which in normal use has proven to be defective in workmanship or material, provided that the customer returns the product prepaid to a DELTA factory service center or authorized service station with proof of purchase of the product within 5 years and provides DELTA with reasonable opportunity to verify the alleged defect by inspection. For all refurbished DELTA product, the warranty period is 180 days. DELTA will not be responsible for any asserted defect which has resulted from normal wear, misuse, abuse or repair or alteration made, or specifically authorized by anyone other than an authorized DELTA service facility or representative. Under no circumstances will DELTA be liable for incidental or consequential damages resulting from defective products. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty is DELTA’s sole warranty and sets forth the customer’s exclusive remedy, with respect to defective products; all other warranties, express or implied, whether of merchantability, fitness for purpose, or otherwise, are expressly disclaimed by DELTA.
