Dewalt 20V MAX XR Brushless Cordless 1-1/8 in. L-Shape SDS PLUS Rotary Hammer Kit with On Board Extractor (6 Ah)

Dewalt Model: DCH293R2DH
$819.99
free shipping
FREE shipping on orders $149+
free shipping

Estimates For

alert warning icon

  • In Stock

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
Dewalt 20V MAX XR Brushless Cordless 1-1/8 in. L-Shape SDS PLUS Rotary Hammer Kit with On Board Extractor (6 Ah) Dewalt Model: DCH293R2DH
price for vip customer
$819.99

OR PAY WITH

Product Features & specs :

Dewalt 20V MAX XR Brushless Cordless 1-1/8 in. L-Shape SDS PLUS Rotary Hammer Kit with On Board Extractor (6 Ah)

Details

The 20V MAX XR Brushless 1-1/8 in. Rotary Hammer is a high-performance drill powered by a DEWALT brushless motor and durable German engineered mechanism, delivering 3.5 Joules of impact energy. The balanced design makes this tool ideal for large diamter hole drilling to install sleeve, stud/wedge, and screw anchors. It is part of the PERFORM & PROTECT product line with the SHOCKS ACTIVE VIBRATION CONTROL System and Anti-Rotation E-CLUTCH System. This DEWALT cordless hammer drill becomes OSHA Table 1 Compliant when used with the DWH304DH On Board Extractor.

Features:

  • Brushless motor for efficient performance and runtime

  • 3.5 Joules impact energy for large diameter drilling in concrete

  • SHOCKS ACTIVE VIBRATION CONTROL System reduces vibration felt by the user at the handles, compared to rotary hammers without this feature

  • Anti-Rotation E-CLUTCH System detects motion of the tool and shuts it down in bind up situations

  • Powerful dust extraction system with built-in motor for increased suction and high tool performance

  • Replaceable dust nozzle

  • Durable, clear high capacity dust box

  • Quick release for easy tool assembly and disassembly

  • Replaceable HEPA filter removes 99.97% of airborne particle 0.3 microns or greater

  • Adjustable depth stop for accurate anchor hole depths

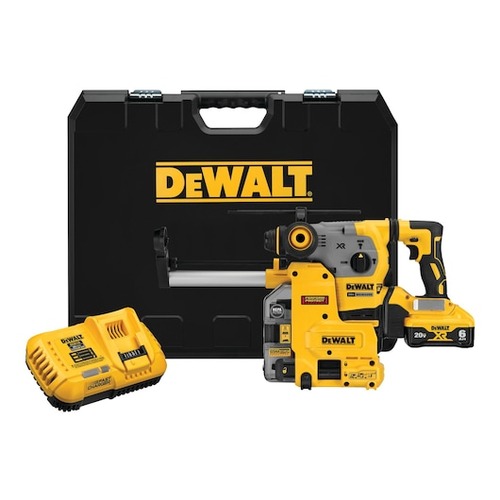

What’s Included:

  • 20V MAX XR Brushless Cordless 1-1/8 in. SDS PLUS Rotary Hammer - DCH293

  • On Board Extractor - DWH304DH

  • (2) 20V MAX XR 6 Ah Battery

  • Charger

  • 360 Degree Side Handle

  • Depth Rod

  • Kit Box

Power Source

Cordless

Wifi compatibility

No

Batteries Included

2

Battery Type

Li-Ion

Chuck Size

1-1/8 in

Battery 2 Amp Hour

6 Ah

Number of Tools

1

Bluetooth Compatibility

No

Motor Type

Brushless

Charger Included

Yes

Impact Energy

3.5 Joules

Case Included

Yes

Case Type

Kit Box

Battery Amp Hour

6 Ah

Voltage

20V

Chuck Type

SDS-Plus

Battery System

20V MAX

Series

XR

Length

24 in.

Width

16.22 in.

Height

6.54 in.

Weight

27.2 lbs.

Warranty Term

3 Year
