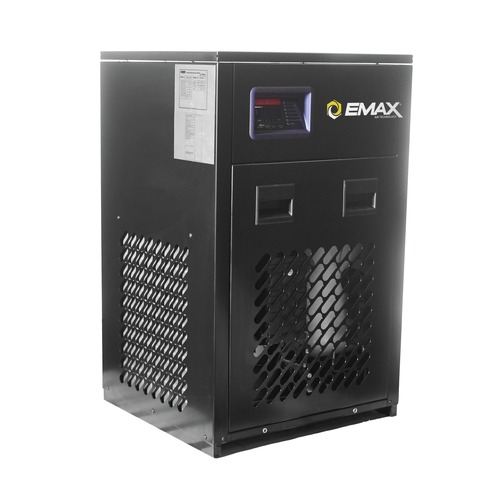

EMAX 115 CFM 115V Refrigerated Air Dryer

EMAX Model: EDRCF1150115
$4,351.00
See More
See Less
free shipping
FREE shipping on orders $149+
free shipping
This item ships directly from manufacturer in 4 - 6 weeks
alert warning icon

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: Cancer and Reproductive Harm -- www.P65Warnings.ca.gov
EMAX 115 CFM 115V Refrigerated Air Dryer EMAX Model: EDRCF1150115
price for vip customer
$4,351.00

OR PAY WITH

Product Features & specs :

EMAX 115 CFM 115V Refrigerated Air Dryer

Details

Our EMAX air dryer is the only energy efficient dryer systems with aluminum refrigerated air inner cooler. The air is filtered of all solid particles 0.01 micron and larger. Clean, dry compressed air leaving the dryer minimizes maintenance and repair and also reduces internal dryer contamination. We designed them with Non-corrosive inner and after cooler. Our dryers feature stainless steel heat exchanger for maximum dryer life and less maintenance. Emax Air dryers are UL-CSA approved scroll compressor & electric system for high efficiency and durability. They feature adjustable hot bypass for complete dryer function in low and high CFM flow preventing dryer freeze up.

Features:

  • Purifies compressed air by chilling to condense moisture

  • Condensate is drained carrying oil & dirt partials away from the air

  • Auto drain system - eliminates the need for daily maintenance

  • Refrigerant pressure - gauge clearly monitors performance of dew point temp (models under 400 CFM)

  • PLC Display (models 400 CFM & above)

  • Outlet air baffle heater - prevents condensation on outlet air piping

  • Heavy duty steel cabinet

  • Trouble free operation refrigerated air inlet inner cooler for high temp cooling

  • Top mounted condenser & fan motor

  • Environmentally friendly 134A refrigerant

What’s Included:

  • 115CFM 115V Refrigerated Air Dryer - EDRCF1150115

Air Inlet Size (Main)

1-1/2 in

Air Inlet Size (Outlet)

1-1/2 in

UL Safety

Yes

Construction

Steel

Type

Air Dryer

Flow Rate (SCFM)

115

Operating Pressure (PSI)

230

CSA Safety

Yes

Operating Temperature (Max.)

140 Degrees Fahrenheit

Material

Steel

ETL Safety

No

Length

19.84 in.

Width

21.81 in.

Height

34.41 in.

Weight

171.60 lbs.

Warranty Term

5 Year
