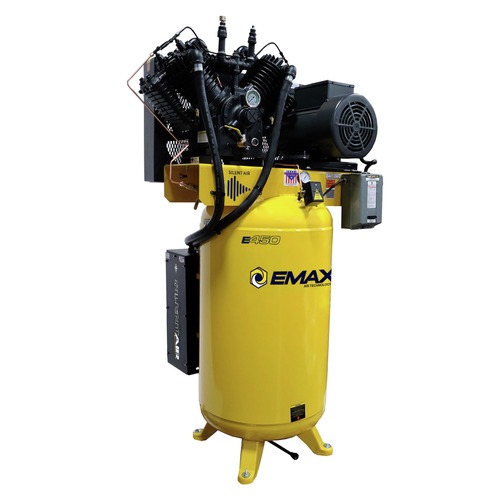

EMAX ESP10V080V3 10 HP 80 Gallon 2-Stage 3-Phase Industrial V4 Pressure Lubricated Solid Cast Iron Pump 38 CFM @ 100 PSI Plus SILENT Air Compressor

EMAX Model: eaxnesp10v080v3
$4,662.00
See More
See Less
free shipping
FREE shipping on orders $149+
free shipping
This item ships directly from manufacturer in 10 business days
alert warning icon

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
EMAX ESP10V080V3 10 HP 80 Gallon 2-Stage 3-Phase Industrial V4 Pressure Lubricated Solid Cast Iron Pump 38 CFM @ 100 PSI Plus SILENT Air Compressor EMAX Model: eaxnesp10v080v3
price for vip customer
$4,662.00

OR PAY WITH

Product Features & specs :

EMAX ESP10V080V3 10 HP 80 Gallon 2-Stage 3-Phase Industrial V4 Pressure Lubricated Solid Cast Iron Pump 38 CFM @ 100 PSI Plus SILENT Air Compressor

Details

This EMAX 10 HP 80 gal. Industrial Air Compressor is a 2-stage, 3-phase V4 35 percent more quiet SILENT AIR silencer system, vertical air compressor designed for up to 70,000 hours of commercial or industrial use with proper maintenance. Patented pressure lubricated V4 2-stage cast iron pump with dual control design allows for automatic or continuous run rated at up to 70,000 hours. This EMAX air compressor delivers 38 CFM @ 100 PSI, max PSI of 175. The unit features a low 1,750 RPM industrial grade electric motor, continuous run kit, magnetic starter, dual timer controlled automatic tank drain, and 200 PSI powder coated ASME certified tank in all 50 states. This reciprocating V4 2-stage pump is engineered with 100 percent cast iron cylinders, up to 70,000 hours rated, patented pressure lubricated. This unit includes our patented, made in the USA, SILENT AIR silencer air system. ETL, UL, CSA, ASME Certified. Eligible for Lifetime Pump Warranty with maintenance kit, 1 Year Standard, 5 Year Extended.

Features:

  • MADE IN THE USA

  • Piston series 2-stage cast iron pump rated at up to 50,000 hours based on B-10 bearing life rating

  • Continuous mode functionality for workloads over 50 percent duty cycle eliminates wear and tear on your magnetic contactor

What’s Included:

  • 10 HP 80G 2 Stage 3-Phase Industrial V4 Pressure Lubricated Pump 38 CFM @ 100 PSI Plus SILENT Air Compressor - ESP10V080V3

Power Source

Corded

Lubrication System

Oil-Pressure

Drive System

Belt Drive

Amperage

24 / 12

UL Safety

No

Pump Speed (RPM)

800

Motor Type

Whisper Wind

Tank Construction

Cast Iron

Tank Orientation

Vertical

Tank Capacity

80 gal

Operating Pressure (PSI)

175

Tank Style

Stationary

CSA Safety

Yes

Pump Type

Pressure

Horsepower

10

Air Consumption at 90 PSI (SCFM)

76

Voltage

208V/230V/460V

Air Consumption at 40 PSI (SCFM)

73

Average Air Consumption (SCFM)

38

ETL Safety

Yes

Length

38 in.

Width

42 in.

Height

72 in.

Weight

810 lbs.

Warranty Term

5 Year
