Factory Reconditioned Makita AF353-R 23-Gauge 1-3/8 in. Pneumatic Pin Nailer Makita Model: AF353-R

Product Features & specs :

Factory Reconditioned Makita AF353-R 23-Gauge 1-3/8 in. Pneumatic Pin Nailer

Details

Offers an array of features and powerful performance in a compact size. Side, drop-in loading magazine that accepts standard 23 ga. headless pins sized 5/8 in., 11/16 in., 3/4 in., 1 in., 1 3/16 in., and 1-3/8 in. The nail lock-out and red window alerts the user when to reload pins as the two-finger trigger is used for controlled firing. With a compact size and weighing in at only 2 lbs., the AF353-R was engineered for all-day professional use ideal for installing moulding, chair rail, tacking trim, glass retainers to doors, cross pinning dowels and joints, cabinets, paneling, glazed bead, craft work, picture frame assembly, window beading, rattan furniture, and a whole host of other woodworking applications. Additional convenience features include a reversible belt hook that allows the tool to remain close by, a rear exhaust port that directs exhaust air away from the user and work surface, a built-in air duster that provides convenient air flow to clear your workspace, and two removable no-mar tips with sightlines for increased pinning accuracy.

Features:

  • Powerful motor drives standard headless pins sized 5/8 in., 11/19 in., 3/4 in., 1 in., 1-3/16 in. and 1-3/8 in.

  • Aluminum body, magazine and cylinder for strength and durability; weighs only 2 lbs

  • Nail lock-out mechanism protects tool and work surface from pin-less blank fires (dry-fires)

  • Side, drop-in loading magazine holds up to 130 nails for maximum efficiency

  • Built-in air duster provides convenient air flow to clear work surface

  • Double, two-finger trigger for user convenience

  • Rear exhaust port directs exhaust air away from operator and work surface

  • Includes 2 removable no-mar tips with sightlines for increased pinning accuracy; convenient on tool storage

  • Easy to clear nose for fast and easy nail extraction should a jam occur

  • Narrow nose design allows easy nailing access to tight areas and angles

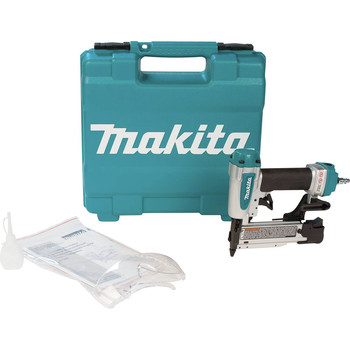

What’s Included:

  • 23-Gauge 1-3/8 in. Pneumatic Pin Nailer - AF353-R

  • Pneumatic Nailer Oil - 181434-7

  • Safety Glasses

  • (2) No-Mar Tip

  • Air Fitting

  • Hex Wrench

  • Tool Case

Power Source

Pneumatic

Nail Gauge

23

Fastener Type

Pin Nails

Fastener Length (Min.)

5/8 in

Jam Clearance

Tool-Free

Tip Style

Non-Marring

Dry Fire Lockout

Yes

Fastener Length (Max.)

1-3/8 in

Max. Fastener Length

1-3/8 in

Operating Pressure (PSI)

65 - 100

Lubrication

Oil-Lube

Fastener Capacity

130

Magazine Angle

Straight

Air Inlet Size

1/4 in

Firing Modes

Contact Actuation

Fitting Type

NPT

Min. Fastener Length

5/8 in

Fastener Gauge

23

Average Air Consumption (SCFM)

0.9

Depth of Drive

Adjustable

Magazine Type

Side Loading

Length

8.19 in.

Width

6.67 in.

Height

7.5 in.

Weight

2 lbs.
