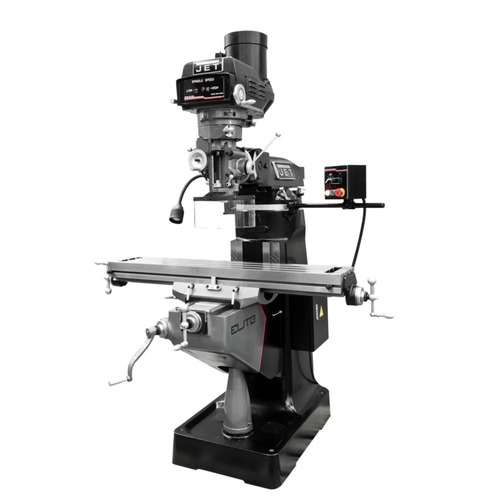

JET 894155 ETM-949 Mill with 2-Axis Newall DP700 DRO and X, Y-Axis JET Powerfeeds and USA Made Air Draw Bar

JET Model: jetn894155
ratings        (0) Write The First Review
$19,799.00
See More
See Less
free shipping
This item qualifies for
FREE SHIPPING
free shipping
This item ships directly from manufacturer
alert warning icon

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
JET 894155 ETM-949 Mill with 2-Axis Newall DP700 DRO and X, Y-Axis JET Powerfeeds and USA Made Air Draw Bar JET Model: jetn894155
price for vip customer
$19,799.00

OR PAY WITH

Product Features & specs :

JET 894155 ETM-949 Mill with 2-Axis Newall DP700 DRO and X, Y-Axis JET Powerfeeds and USA Made Air Draw Bar

Details
Elite offers World Class Mills fully loaded with features. When working on the design of the mills we focused our efforts on the most accurate spindle assembly to meet strict tolerance requirements. To improve the reliability and durability we went back and did things the old fashioned way, we hand scraped the ways to a minimum of 16-point per inch. For operator safety all Elite Mills are CSA / CUS Certified and all come with a spindle safety guard.
Features:
  • Spindle utilizes class 7210 (P4, ABEC-7) precision angular bearings for the industry leading spindle taper runout of 0.00012
  • Chromium Molybdenum spindle is fully hardened through a carbonizing treatment and is precisely ground to maintain strict tolerances
  • Seamless, one-piece, steel quill is induction hardened and chromed for increased strength and precision ground for greater accuracy
  • The Y and Z-Axis ways are hand scraped to a minimum of 16 points per square inch for greater oil retention and smooth movements
  • Heat treated and polished lead screws are supported by thrust bearings ensuring smooth, incremental movements of the table under load
  • The table and saddle backlash is controlled by an advanced double nut design that eliminates end-play for precisely controlled lateral movements
  • A patented vari-disc key provides upt to ten times the wear resistance than aluminum or brass keys
  • Variable speed pulleys are ground and multiplane dynamically balanced, reducing vibration and ensuring smooth speed transitions
  • Ball bearing support of the motor shaft ensures proper loading, support and alignment for quiet, accurate operation at any speed
  • Hardened and ground table provides a stable and accurate platform for milling a diverse variety of materials
What’s Included:
  • ETM-949- 2X DP700 & X, Y PWRFD & DRBR - 894155
Power Source
Corded
Spindle Speed Range
60 - 4,500
PreWired Voltage
230V
Amperage
18 / 9
UL Safety
No
CSA Safety
Yes
Wifi compatibility
No
Spindle to Table Distance
18-3/4 in
Collet Capacity
1/8 - 7/8
T-Slot Centers
2-1/2 in
Spindle Speeds
Variable
Bluetooth Compatibility
No
Table Size
9 in x 49 in
Spindle Taper
R-8
Motor Phase
3
Horsepower
3
Motor Type
Brushed
Voltage
230V/460V
No. of T-Slots
3
Quill Down Feed Rates
0.0015 - 0.003 - 0.006
Spindle Travel
5 in
Quill Diameter
3-3/8 in
Head Movement
90 Degrees R/L 45 Degrees F/B
Table Capacity (lbs.)
550 lbs
T-Slot Size
5/8 in
Ram Travel
14 in
ETL Safety
No
Length
68 in.
Width
63 in.
Height
84 in.
Weight
2420 lbs.
Warranty Term
3 Year
