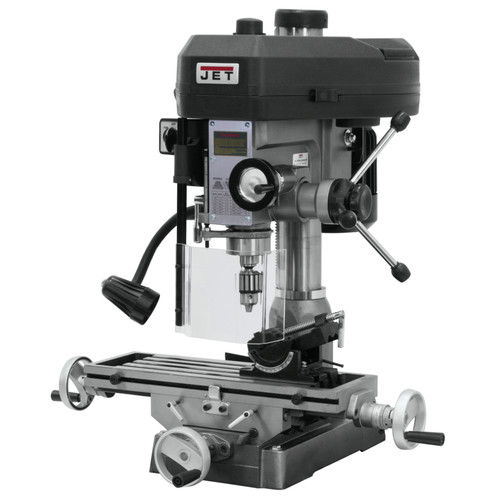

JET JMD-15 1 HP 1-Phase R-8 Taper Milling/Drilling Machine

JET Model: JMD-15
$2,899.00
See More
See Less
free shipping
FREE shipping on orders $49+.
free shipping
This item ships directly from the manufacturer.
alert warning icon

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Titanium Dioxide, which is known to the State of California to cause Cancer. For more information go to www.P65Warnings.ca.gov.
JET JMD-15 1 HP 1-Phase R-8 Taper Milling/Drilling Machine JET Model: JMD-15
price for vip customer
$2,899.00

OR PAY WITH

Product Features & specs :

JET JMD-15 1 HP 1-Phase R-8 Taper Milling/Drilling Machine

Features:

  • One-piece cast-iron column for added support

  • Belt cover - quick slide latch allows faster belt adjustment to change spindle speeds

  • Base - taper allows for easier clean-up

  • Large hand wheel knobs

  • UL Listed motor

  • Extra-large work table

  • Heavy-duty tapered roller bearings support the spindle, resulting in greater tolerance and more accurate drilling depth

  • New positive quick-stop knob and easy-to-read external depth gauge

  • 360 head swivel

What’s Included:

  • 1 HP 1-Phase R-8 Taper Milling/Drilling Machine - 350017

  • Work Lamp

  • Drill Press Angle Vise

  • Adjustable Carbide Face Mill

  • 1/2 in. Drill Chuck &, Chuck Arbor

  • Draw Bar

Power Source

Corded

PreWired Voltage

115V

Amperage

20

UL Safety

Yes

Wifi compatibility

No

Spindle to Table Distance

14-1/2 in

Spindle Speeds

12

Bluetooth Compatibility

No

Longitudinal Table Travel (X-Axis)

14 in

Motor Type

Brushed

Quill Down Feed Rates

0.0015 / 0.003 / 0.006

Quill Diameter

2-7/16 in

Head Movement

360 Degrees

Table Capacity (lbs.)

350 lbs

T-Slot Size

9/16 in

Spindle Speed Range

110 - 2580

CSA Safety

No

T-Slot Centers

1-13/16 in

Table Size

7-1/2 in x 23 in

Spindle Taper

R-8

Motor Phase

1

Horsepower

1

Voltage

115V/230V

No. of T-Slots

4

Spindle Travel

3-1/2 in

Cross Travel (Y-Axis)

6 in

ETL Safety

No

Length

38 in.

Width

37.5 in.

Height

42 in.

Weight

440 lbs.

Warranty Term

2 Year
