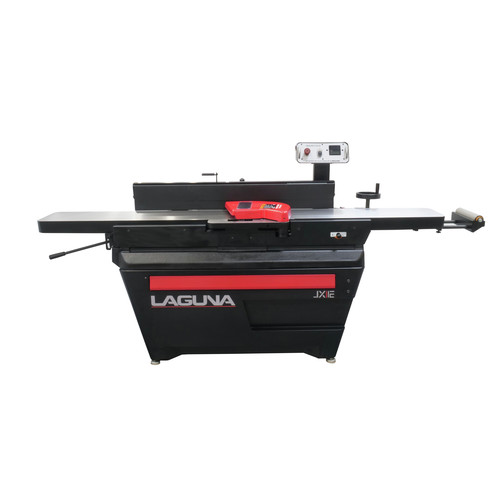

Laguna Tools JX12 ShearTec II 220V 23 Amp 5 HP 1-Phase Jointer

Laguna Tools Model: MJ12X88P-0130
$7,198.00
See More
See Less
free shipping
FREE shipping on orders $49+.
free shipping
This item ships from manufacturer; get it in 2-5 days
alert warning icon

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood.Cancer
Laguna Tools JX12 ShearTec II 220V 23 Amp 5 HP 1-Phase Jointer Laguna Tools Model: MJ12X88P-0130
price for vip customer
$7,198.00

OR PAY WITH

Product Features & specs :

Laguna Tools JX12 ShearTec II 220V 23 Amp 5 HP 1-Phase Jointer

Details

All-new for 2021, the Laguna JX12 ShearTec II is loaded with premium features to make jointing safer and more enjoyable.

Features:

  • Parallelogram Table Adjustments - Table depth adjustments travel along an arc to keep the same distance to the cutterhead through its travel

  • Emergency "Knee-Stop" - The new knee stop uses a body-length bar at knee height to shut off the JX jointer. This important safety feature allows the machine operator to stop the machine quickly at any position along the front of the machine while keeping hands on the workpiece

  • New Ergonomic Machine Body - The new JX Series machine body has been redesigned with a "toe-kick" to allow the user to position themself closer to the machine tables and to move safer and easier along the length of the machine.

  • In-feed Support Roller - Infeed tables are now fitted with pull-out support roller to help support longer materials

  • ShearTec II Cutterhead - The ShearTec II cuttherhead comes as standard equipment on JX12 ShearTec II Jointer

  • Deluxe Fence - 5-3/4 in. fence with flip-down small fence for intricate work

  • Worklight Ready - Built-in outlet and bracket for optional LED work light

  • Power-feeder Ready - Included bracket to mount optional power-feeder

What’s Included:

  • JX12 ShearTec II 220V 23 Amp 5 HP 1-Phase Jointer - MJ12X88P-0130

Power Source

Corded

Fence Length

60 in

PreWired Voltage

220V

Amperage

22

Wifi compatibility

No

Fence Height

5-3/8 in

Bluetooth Compatibility

No

Cutterhead Speed (RPM)

5500

Cutterhead Diameter

4 in

Fence Tilt (Rear)

45 Degrees

Dust Port

Yes

CSA Safety

Yes

Fence Tilt (Front)

90 Degrees

Dust Port Size

6 in

Table Dimensions

12 in x 87-3/4 in

Rabbeting Capacity

3/4 in

Table Height

33 in

Motor Phase

1

Horsepower

5

Voltage

220V

Max. Cut Capacity (Depth)

1/2 in

Max. Cut Capacity (Width)

12 in

Length

87.75 in.

Weight

880 lbs.
