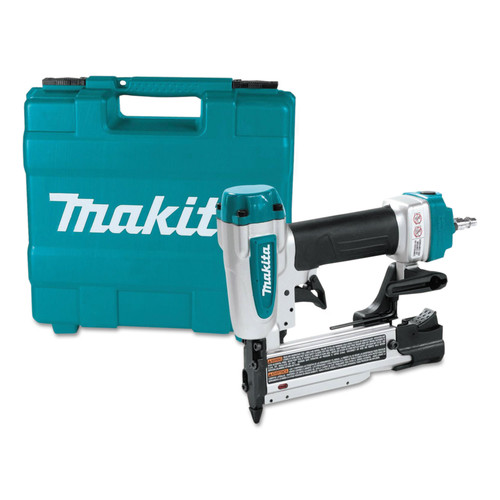

Makita AF353 23-Gauge 1-3/8 in. Pneumatic Pin Nailer

Makita Model: AF353

Enter your email address and we'll let you know when it's available

OUT OF STOCK
CA Residents
Prop 65 Warning
compliance warning icon
WARNING: Cancer and Reproductive Harm -- www.P65Warnings.ca.gov
Makita AF353 23-Gauge 1-3/8 in. Pneumatic Pin Nailer Makita Model: AF353

Product Features & specs :

Makita AF353 23-Gauge 1-3/8 in. Pneumatic Pin Nailer

Details

Offers an array of features and powerful performance in a compact size. Side, drop-in loading magazine that accepts standard 23 ga. headless pins sized 5/8 in., 11/16 in., 3/4 in., 1 in., 1 3/16 in., and 1-3/8 in. The nail lock-out and red window alerts the user when to reload pins as the two-finger trigger is used for controlled firing. With a compact size and weighing in at only 2 lbs., the AF353 was engineered for all-day professional use ideal for installing moulding, chair rail, tacking trim, glass retainers to doors, cross pinning dowels and joints, cabinets, paneling, glazed bead, craft work, picture frame assembly, window beading, rattan furniture, and a whole host of other woodworking applications. Additional convenience features include a reversible belt hook that allows the tool to remain close by, a rear exhaust port that directs exhaust air away from the user and work surface, a built-in air duster that provides convenient air flow to clear your workspace, and two removable no-mar tips with sightlines for increased pinning accuracy.

Features:

  • Powerful motor drives standard headless pins sized 5/8 in., 11/19 in., 3/4 in., 1 in., 1-3/16 in. and 1-3/8 in.

  • Aluminum body, magazine and cylinder for strength and durability; weighs only 2 lbs

  • Nail lock-out mechanism protects tool and work surface from pin-less blank fires (dry-fires)

  • Side, drop-in loading magazine holds up to 130 nails for maximum efficiency

  • Built-in air duster provides convenient air flow to clear work surface

  • Double, two-finger trigger for user convenience

  • Rear exhaust port directs exhaust air away from operator and work surface

  • Includes two removable no-mar tips with sightlines for increased pinning accuracy; convenient on tool storage

  • Easy to clear nose for fast and easy nail extraction should a jam occur

  • Narrow nose design allows easy nailing access to tight areas and angles

What’s Included:

  • Pneumatic Nailer Oil (181434-7)

  • Safety Glasses

  • (2) No-Mar Tip

  • Air Fitting

  • Hex Wrench

  • Tool Case

Power Source

Pneumatic

Nail Gauge

23

Fastener Type

Pin Nails

Fastener Length (Min.)

5/8 in

Jam Clearance

Tool-Free

Tip Style

Non-Marring

Dry Fire Lockout

Yes

Fastener Length (Max.)

1-3/8 in

Max. Fastener Length

1-3/8 in

Operating Pressure (PSI)

65 - 100

Lubrication

Oil-Lube

Fastener Capacity

130

Magazine Angle

Straight

Air Inlet Size

1/4 in

Firing Modes

Contact Actuation

Fitting Type

NPT

Min. Fastener Length

5/8 in

Fastener Gauge

23

Average Air Consumption (SCFM)

0.9

Depth of Drive

Adjustable

Magazine Type

Side Loading

Length

8.19 in.

Width

6.67 in.

Height

7.5 in.

Weight

2 lbs.

Warranty Term

3 Year

Reviews :

Q & A :

Warranty:

Warranty Information

Makita Standard Warranty

The Makita Standard Warranty applies to both new and factory-reconditioned Makita tools. Every Makita tool is thoroughly inspected and tested before leaving the factory. If you are not satisfied with any Makita tool within 30 days of purchase, return it and Makita will provide a replacement or refund. Each Makita tool is warranted to be free of defects from workmanship and materials for the period of ONE YEAR from the date of original purchase. Should any trouble develop during this one-year period, return the COMPLETE tool, freight prepaid, to one of Makita's Factory or Authorized Service Centers.

Each NEW Makita Lithium‐Ion Power Tool, Battery and Charger is warranted to be free of defects from workmanship and materials for the period of THREE YEARS from the date of original purchase

If inspection shows the trouble is caused by defective workmanship or material, Makita will repair (or at its option, replace without charge).

This Warranty does not apply where:
  • Repairs have been made or attempted by others
  • Repairs are required because of normal wear and tear
  • The tool has been abused, misused or improperly maintained
  • Alterations have been made to the tool
In no event shall Makita be liable for any indirect, incidental or consequential damages from the sale or use of the product. This disclaimer applies to both during and after the term of this warranty. Makita disclaims liability for any implied warranties, including implied warranties of "merchantability" and "fitness" for a specific purpose, after the one-year term of this warranty. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
