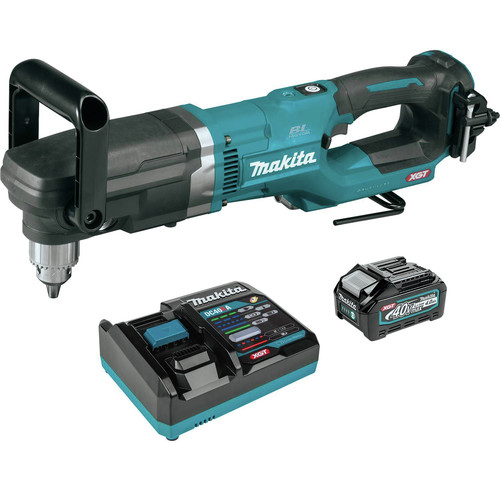

Makita GAD01M1 40V max XGT Brushless Lithium-Ion 1/2 in. Cordless Right Angle Drill Kit (4 Ah)

Makita Model: mktngad01m1
free shipping
FREE shipping on orders $149+
free shipping

Estimates For

alert warning icon

  • In Stock


We’re unable to ship this item to: AK HI
CA Residents
Prop 65 Warning
compliance warning icon
WARNING: Cancer and Reproductive Harm --
Makita GAD01M1 40V max XGT Brushless Lithium-Ion 1/2 in. Cordless Right Angle Drill Kit (4 Ah) Makita Model: mktngad01m1
price for vip customer


Product Features & specs :

Makita GAD01M1 40V max XGT Brushless Lithium-Ion 1/2 in. Cordless Right Angle Drill Kit (4 Ah)


The 40V max XGT Brushless 1/2 in. Right Angle Drill (GAD01M1) offers freedom from the cord for demanding drilling applications. A Makita-built brushless motor, two-speed transmission, and variable speeds (0 - 350 RPM, 0 - 1400 RPM), deliver for maximum efficiency and wide range of drilling applications. It can drill up to 6-1/4 in. holes with hole saws and 4-5/8 in. holes with self-feed bits.

Added features include a torque limiter to reduce gear damage, soft start for smooth start-ups, an electric brake for maximum productivity, and dual L.E.D. lights to illuminate the work area. It includes a side handle which attaches to either side of the tool. The drill features Extreme Protection Technology (XPT), a series of integrated seals designed to improve a tool’s operation in harsh conditions. Water and solid debris that enter a tool are redirected through carefully engineered channels and ducts to prevent damage to key components, such as triggers, motors, and other electronics.

XGT is a system of equipment, tools, batteries, and chargers utilizing 40V max Lithium-Ion batteries. XGT is engineered to deliver high power to take on high-demand applications, allowing users to completely transition to a cordless job site. XGT is equipped with advanced brushless motor engineering, intelligent digital communication, and superior durability features to outpower, outsmart and outlast the rest.


  • Makita built brushless motor with two speed, variable speed (0 - 4000 RPM and 0 - 1500 RPM) for maximum efficiency and a wide range of drilling applications

  • Drills up to 6-1/4 in. holes with hole saws and 4-5/8 in. holes with self feed bits

  • Weighs only 12.8 lbs. with battery and ergonomic design for operator comfort

  • Torque limiter; built-in clutch reduces gear damage by disengaging gears if the bit binds

  • Built-in L.E.D light with pre-glow and afterglow illuminates the work area

  • Electric brake for maximum productivity

  • Soft start feature for smooth start-ups

  • Auto power-off feature preserves battery and tool life

  • Includes chuck key with convenient on-tool storage

  • Side handle attaches to either side of the tool for convenient right or left handed use

What’s Included:

  • 40V max XGT BL Li-Ion 1/2" Right Angle Drill - GAD01Z

  • (1) 40V max XGT 4 Ah Lithium-Ion Battery - BL4040

  • 40V max XGT Rapid Optimum Charger - DC40RA

  • Chuck Key

Power Source


UL Safety


Clutch Settings


Wifi compatibility


Batteries Included


Battery Type


Chuck Size

1/2 in

Bluetooth Compatibility


Variable Speed Trigger


Motor Type


Battery Warranty

3 Year

Charger Included


No-Load Speed (RPM)

0 - 400 / 0 - 1500

CSA Safety


Case Included


Battery Amp Hour

4 Ah



Handle Type


Chuck Type


ETL Safety


Battery System



21.25 in.


12.8 lbs.

Warranty Term

3 Year
