Makita HR4013C 1-9/16 in. AVT SDS-Max Rotary Hammer

Makita Model: mktnhr4013c
ratings        (4) Write A Review
free shipping
This item qualifies for
free shipping

Estimates For

alert warning icon

  • Last 1 In Stock


CA Residents
Prop 65 Warning
compliance warning icon
WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of those chemicals are: lead from lead-based paints, crystalline silica from bricks and cement and other masonry products, and arsenic and chromium from chemically-treated lumber. Refer to product manual/instructionsCancer
Makita HR4013C 1-9/16 in. AVT SDS-Max Rotary Hammer Makita Model: mktnhr4013c
price for vip customer


Product Features & specs :

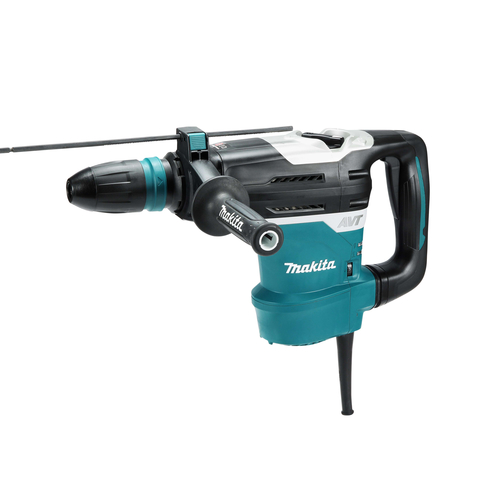

Makita HR4013C 1-9/16 in. AVT SDS-Max Rotary Hammer

Makita has expanded its line-up of concrete hammers with a new 1-9/16 in. AVT Rotary Hammer that has 45% less vibration and 20% more impact energy than the previous model. The new HR4013C is engineered with enhanced Anti-Vibration Technology (AVT), which is a synchronized three-component system for significantly less tool vibration. Additional features include constant speed control that automatically applies additional power to the motor to maintain speed under load, soft start for more control and greater accuracy, and a torque-limiting clutch. The HR4013C offers 2-mode operation for "chipping only" or "hammering with rotation", as well as 24 bit angle settings and a one-touch sliding chuck for quick bit changes.
  • Powerful 11 amp motor delivers 8.4 ft.lbs. of impact energy to handle the most demanding applications
  • Anti-Vibration Technology (AVT) is a synchronized, three-component system that more effectively reduces vibration resulting in a low 5m/s2
  • Air actuated counterbalance directs air pressure from the crank and barrel room into the counterbalance cylinders to move counterweight pistons in the opposite direction of the drive piston actively reducing vibration
  • Vibration absorbing housing features a spring loaded main handle and upper housing that move independently of the motor and drive mechanism effectively isolating most of the vibration away from the user
  • Integrated damper spring at the base of the impact bolt is engineered to absorb impact vibrations from the drill bit
  • Lock-on or trigger activation in "Chipping Only" mode with a push button start/stop control for more convenient operation
  • Constant speed control automatically applies additional power to the motor to maintain speed under load to complete the most challenging jobs
  • Soft start suppresses start-up reaction for more control and better accuracy
  • L.E.D. service light notifies the user approximately 8 hours before the brushes need to be replaced
  • L.E.D. power light indicates switch failure or cord damage
  • Variable speed control dial enables user to match the speed to the application for greater versatility
  • Torque limiting clutch engineered to prevent gear damage by automatically disengaging gears if the bit binds
  • Sequential impact timing delivers timed hammering during rotation to minimize overlapping bit impacts for up to 50% faster drilling
  • Automatic brush cut-off protects commutator from damage for longer tool life
  • 2-mode operation for "Chipping Only" or "Hammering with Rotation
What’s Included:
  • 1-9/16 in. AVT SDS-Max Rotary Hammer - HR4013C
  • Side Handle - 196792-8
  • Side Grip Assembly - 123138-5
  • Depth Rod - 331955-1
  • Bit Grease - 194683-7
  • Wiping Cloth
Power Source
Impact Energy
8.4 ft-lbs
Cord Length(ft.)
15.6 in
Blows Per Minute(BPM)
1450 - 2900
UL Safety
No-Load Speed (RPM)
CSA Safety
Wifi compatibility
Chuck Size
1-9/16 in
Case Included
Bluetooth Compatibility
Motor Type
Handle Type
Charger Included
Chuck Type
ETL Safety
18.69 in.
4.38 in.
10.38 in.
15.1 lbs.
Warranty Term
1 Year

Reviews :

5.0 / 5.0
4 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
Would you recommend this product?
Yes (4)
Easy To Use (4)
Powerful (4)
Ergonomic Design (1)
Best Uses
Home Repair (2)
Frequent Use (1)
Heavy Duty Requirements (1)
Large Projects (1)
Would you recommend this product?
Easy To Use
Best Uses
Home Repair
Great Tools Must Buy
Must Have Tools for Small Concrete Job Demo, Tile Demo, Chipping, Drilling Holes on Concrete Slab,

It's Amazing to have this innovative tools for min Vibration and max performance, Powerful Tools.

Will Recommend This Product to GC, Plumber, Electrician,and any other professionals.
December 9, 2015
Would you recommend this product?
Easy To Use
happy man
Im a plumber & construction contractor. I purchased makita hr4013c @ GEAT DEAL I use rotary hammers on almost every job this thing has little to no vibration it doesnt leave your body shaking for the next 20 minutes like most. Easy to use with lots of power. So glad i did the research and i got a free $200 hammer drill with my purchase. Had it shipped to me in 4 days. Bottom line is GREAT DEAL. Definitely will be buying more tools from tylertools in the future.
November 7, 2015
Would you recommend this product?
Easy To Use
Game changer!
I didnt think any hammer could beat the Makita HR4010C, but this hammer goes even further in features! The vibration on this hammer is so minimal! One of my guys bought ME a cup of coffee to thank me for buying this hammer for them! Needless to say, this is a great hammer!
April 30, 2014

Q & A :

Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 2 questions Browse 2 questions and 5 answers
I just ordered a Makita HR4013C rotary hammer drill.
Just wanted to be sure the carrying case is included - Makita shows this model including a case, but your site does not show the case.
If not included I'm not interested in completing the order.
Please advise so I can decide to keep or cancel the order.

Rob on Jun 30, 2016

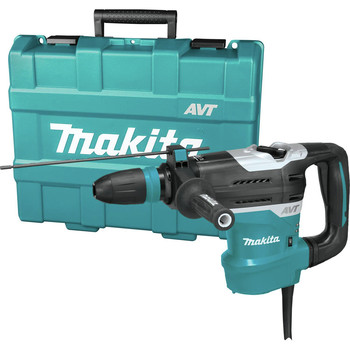

BEST ANSWER: Yes the case is included (see below):


(1) D-Handle Assembly, HR4013C (196792-8)
(1) DEPTH ROD, HR4013C (331955-1)
(1) Side Handle Assembly (123138-5)
(1) Hammer Bit Grease (194683-7)
(1) CLOTH F/WIPING OIL (443122-7)
(1) Accessory Case (0000)


Warranty Information

Makita Standard Warranty

The Makita Standard Warranty applies to both new and factory-reconditioned Makita tools. Every Makita tool is thoroughly inspected and tested before leaving the factory. If you are not satisfied with any Makita tool within 30 days of purchase, return it and Makita will provide a replacement or refund. Each Makita tool is warranted to be free of defects from workmanship and materials for the period of ONE YEAR from the date of original purchase. Should any trouble develop during this one-year period, return the COMPLETE tool, freight prepaid, to one of Makita's Factory or Authorized Service Centers.

Each NEW Makita Lithium‐Ion Power Tool, Battery and Charger is warranted to be free of defects from workmanship and materials for the period of THREE YEARS from the date of original purchase

If inspection shows the trouble is caused by defective workmanship or material, Makita will repair (or at its option, replace without charge).

This Warranty does not apply where:
  • Repairs have been made or attempted by others
  • Repairs are required because of normal wear and tear
  • The tool has been abused, misused or improperly maintained
  • Alterations have been made to the tool
In no event shall Makita be liable for any indirect, incidental or consequential damages from the sale or use of the product. This disclaimer applies to both during and after the term of this warranty. Makita disclaims liability for any implied warranties, including implied warranties of "merchantability" and "fitness" for a specific purpose, after the one-year term of this warranty. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
