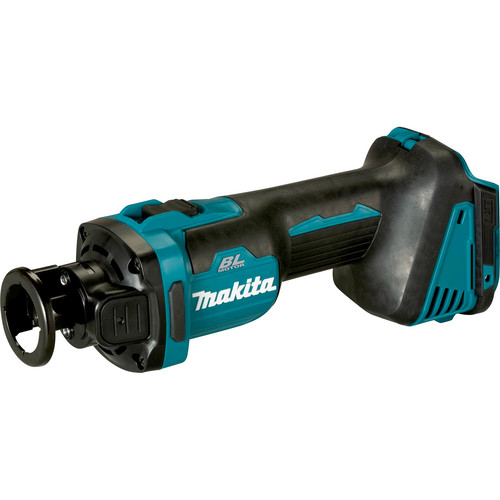

Makita XOC02Z 18V LXT Brushless Lithium-Ion AWS Capable Cordless Cut-Out Tool (Tool Only)

Makita Model: mktnxoc02z

Enter your email address and we'll let you know when it's available

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to
Makita XOC02Z 18V LXT Brushless Lithium-Ion AWS Capable Cordless Cut-Out Tool (Tool Only) Makita Model: mktnxoc02z

Product Features & specs :

Makita XOC02Z 18V LXT Brushless Lithium-Ion AWS Capable Cordless Cut-Out Tool (Tool Only)


The 18V LXT Brushless Cordless Cut-Out Tool (XOC02Z, Tool Only) is a powerful and efficient solution for drywall contractors. The Makita-built BL Brushless motor delivers 32000 RPM for faster cutting, providing the cutting performance and power of a corded tool without the hassles of a cord. The XOC02Z has a large cutting capacity, cutting up to 2x drywall. Other features include built-in twin L.E.D. lights to illuminate the work area, vent slots to direct air and debris away from the operator, a soft start for smoother start-ups, and an electric brake for maximum productivity.

It accepts 1/8 in. and 1/4 in. bits. A large and conveniently located shaft lock button provides fast bit changes. On-board bit change capabilities eliminate the need for a wrench. Also, the cut-out tool offers tool-less depth adjustments. For efficient dust extraction, the XOC02Z is AWS-capable with Auto-Start Wireless Transmitter (198901-5, sold separately). Auto-Start Wireless System (AWS) utilizes Bluetooth technology for wireless power-on/off communication between tool and optional dust extractor.

Extreme Protection Technology (XPT) is a protective seal inside the tool, designed to improve a tool’s operation in harsh conditions by channeling water and dust from key internal components. It’s part of Makita’s expanding 18V LXT System, the world’s largest cordless tool system powered by 18V Lithium-Ion slide-style batteries. Makita 18V LXT Lithium-Ion Batteries have the fastest charge times in their categories, so they spend more time working and less time sitting on the charger. For improved tool performance and extended battery life, Makita created Star Protection Computer Controls. Star Protection is communication technology that allows the Star Protection-equipped tool and battery to exchange data in real time and monitor conditions during use to protect against overloading, over-discharging and overheating. For increased versatility, the tool can also be powered by Makita 18V LXT Lithium-Ion Batteries with the star symbol on the battery indicating Star Protection inside.


  • Makita-built BL Brushless motor delivers 32000 RPM for faster cutting

  • Power to cut up to 2 layered drywall sheets

  • Weighs only 3.7 lbs. with battery (battery not included) for reduced operator fatigue

  • Built-in twin LED lights with afterglow function illuminate the work area

  • Vent slots direct air and debris away from the operator

  • Soft start suppresses start-up reaction for smoother start-ups and longer gear life

  • Electric brake for maximum productivity

  • Slide switch with lock-on for operator convenience

  • Quick and easy tool-less depth adjustment

  • On board bit change capabilities eliminates need for wrench

What’s Included:

  • 18V LXT Li-Ion AWS Capable Cut-Out Tool (Tool Only) - XOC02Z

  • 1/8 in. Collet Cone - 763677-9

  • Collet Nut - 763675-3

  • Spanner Wrench - 781037-3

  • 1/8 in. Drywall Cut-Out Bit

  • Battery and Charger Sold Separately

Power Source


UL Safety


Compatible With

Auto-Start Wireless Transmitter

Wifi compatibility


Batteries Included


Battery Type


Bluetooth Compatibility


Motor Type


Charger Included


No-Load Speed (RPM)


CSA Safety


Case Included




ETL Safety


Battery System



12.25 in.


3.7 lbs.

Warranty Term

3 Year

Reviews :

Q & A :


Warranty Information

Makita Standard Warranty

The Makita Standard Warranty applies to both new and factory-reconditioned Makita tools. Every Makita tool is thoroughly inspected and tested before leaving the factory. If you are not satisfied with any Makita tool within 30 days of purchase, return it and Makita will provide a replacement or refund. Each Makita tool is warranted to be free of defects from workmanship and materials for the period of ONE YEAR from the date of original purchase. Should any trouble develop during this one-year period, return the COMPLETE tool, freight prepaid, to one of Makita's Factory or Authorized Service Centers.

Each NEW Makita Lithium‐Ion Power Tool, Battery and Charger is warranted to be free of defects from workmanship and materials for the period of THREE YEARS from the date of original purchase

If inspection shows the trouble is caused by defective workmanship or material, Makita will repair (or at its option, replace without charge).

This Warranty does not apply where:
  • Repairs have been made or attempted by others
  • Repairs are required because of normal wear and tear
  • The tool has been abused, misused or improperly maintained
  • Alterations have been made to the tool
In no event shall Makita be liable for any indirect, incidental or consequential damages from the sale or use of the product. This disclaimer applies to both during and after the term of this warranty. Makita disclaims liability for any implied warranties, including implied warranties of "merchantability" and "fitness" for a specific purpose, after the one-year term of this warranty. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
