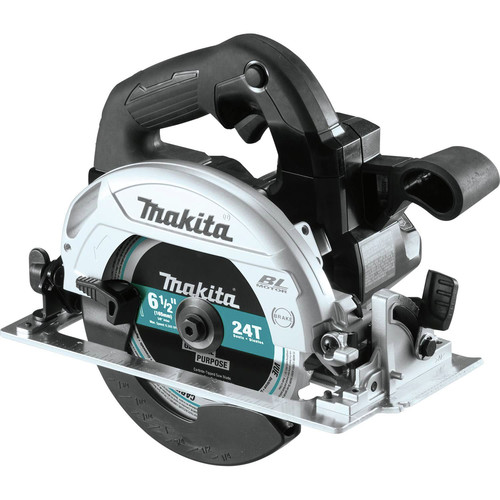

Makita 18V LXT Li-Ion Sub-Compact Brushless Cordless 6-1/2 in. Circular Saw (Tool Only)

Makita Model: XSH04ZB

Enter your email address and we'll let you know when it's available

OUT OF STOCK
CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
Makita 18V LXT Li-Ion Sub-Compact Brushless Cordless 6-1/2 in. Circular Saw (Tool Only) Makita Model: XSH04ZB

Product Features & specs :

Makita 18V LXT Li-Ion Sub-Compact Brushless Cordless 6-1/2 in. Circular Saw (Tool Only)

Details

Makita created a new class in cordless with 18V LXT Sub-Compact tools. Makita Sub-Compact gives users 12V handling with 18V performance, and compatibility with the world’s largest 18V cordless tool system. The XSH04ZB is engineered for cutting and ripping applications, and is ideal for any contractor seeking a more compact cutting solution for framing, roofing, formwork, and more.

The Sub-Compact 6-1/2 in. Circular Saw has a compact and ergonomic design at only 10-5/8 in. and 6.4 lbs. (with 18V LXT Compact 2.0Ah battery, battery and charger sold separately). The compact size combined with the Makita-built brushless motor delivers up to 5,000 RPM and a superior power-to-weight ratio. The saw is equipped with Makita’s Automatic Speed Change technology, which adjusts cutting speed and torque under load for optimum cutting performance. The efficient brushless motor is electronically controlled to provide up to 50% longer run time than non-brushless motors, and in run-time testing the XSH04 made up to 350 cross-cuts per charge in 2x4 SPF lumber using one 2.0Ah battery (sold separately). For extended run time users can load up a high amp-hour 18V LXT battery (all sold separately) including 2.0Ah (BL1820B), 3.0Ah (BL1830B), 4.0Ah (BL1840B), 5.0Ah (BL1850B) or 6.0Ah (BL1860B).

Added convenience features include dual L.E.D. lights, electric brake, built-in tether notch (tether sold separately), and Extreme Protection Technology (XPT) for improved dust and water resistance in harsh job site conditions. For improved dust extraction, the rear dust port easily connects to a vacuum system (dust extraction accessories sold separately). It’s part of Makita’s expanding 18V LXT system, the world’s largest cordless tool system powered by 18V Li-Ion batteries. Makita 18V LXT batteries have the fastest charge times in their categories, so they spend more time working and less time sitting on the charger. For improved tool performance and extended battery life, Makita created Star Protection Computer Controls. Star Protection is communication technology that allows the Star Protection-equipped tool and battery to exchange data in real time and monitor conditions during use to protect against overloading, over-discharging and overheating. For increased versatility, the tool can also be powered by Makita 18V LXT and Compact Li-Ion batteries with the star symbol on the battery indicating Star Protection inside.

Features:

  • Compact and ergonomic blade-right design at only 10-5/8 in. long

  • Weighs only 6.4 lbs. with 2.0Ah battery (battery not included) for operator comfort

  • Powerful Makita built electronically controlled BL Motor delivers 5,000 RPM for faster cutting and ripping

  • The BL Brushless Motor eliminates carbon brushes, enabling the BL Motor to run cooler and more efficiently for longer life

  • Large cutting capacity (2-1/4 in. at 90-degrees) and bevel capacity (0-degree - 50-degrees)

  • LXT technology delivers up to 174 crosscuts per charge in 2x10 SPF lumber using one 5.0Ah battery (battery not included)

  • Automatic Speed Change technology adjusts cutting speed and torque during cut for optimum performance

  • Dual L.E.D. lights illuminate the work area

  • Electric brake for maximum productivity

  • Aluminum base and magnesium blade cover provide a lightweight, durable design

What’s Included:

  • Tool only (Battery and charger not included)

  • 6-1/2 in. 24T C.T. Saw Blade (A-85092)

  • Dust Extracting Attachment (199230-9)

  • Hex Wrench (783203-8)

Blade Speed (RPM)

5000

Power Source

Cordless

Housing Material

Aluminum

Depth Adjustment

Yes

UL Safety

Yes

Wifi compatibility

No

Battery Type

Li-Ion

Blade Diameter

6-1/2 in

Bluetooth Compatibility

No

Motor Type

Brushless

Arbor Size

5/8 in

Charger Included

No

Blade Position

Right

Depth of Cut (45 Degrees)

1-5/8 in

Depth of Cut (90 Degrees)

2-1/4 in

CSA Safety

No

Bevel Capacity

50 Degrees

Case Included

No

No-Load Speed (SFM)

5000

Keyless/keyed Blade Change

Keyed Change

Voltage

18V

Dust Collection Type

Vacuum Adaptor

ETL Safety

No

Battery System

LXT

Series

Sub-Compact

Length

10.625 in.

Width

13.35 in.

Height

8.43 in.

Weight

6.4 lbs.

Warranty Term

3 Year

Reviews :

Q & A :

Warranty:

Warranty Information

Makita LXT Lithium-ion Tool Warranty

Every Makita® Lithium‐Ion Power Tool is thoroughly inspected and tested before leaving the factory. If you are not satisfied with any Makita Lithium‐Ion tool within 30 days of purchase, return it and Makita will provide, at Makita's option, a replacement or refund. Each Makita Lithium‐Ion Power Tool, Battery and Charger is warranted to be free of defects from workmanship and materials for the period of THREE YEARS from the date of original purchase. Should any trouble develop during the three‐year period for the Lithium‐Ion Power Tool, Battery and/or Charger, return the COMPLETE Power Tool, Battery and/or Charger, freight prepaid, to one of Makita's Factory or Authorized Service Centers.

If inspection shows the trouble is caused by defective workmanship or material, Makita will repair (or at our option, replace) without charge. This warranty does not apply to Makita Accessories, like flashlights.

This Warranty does not apply where:

  • Repairs have been made or attempted by others
  • Repairs are required because of normal wear and tear
  • The tool has been abused, misused or improperly maintained
  • Alterations have been made to the tool

  • In no event shall Makita be liable for any indirect, incidental or consequential damages from the sale or use of the product. This disclaimer applies to both during and after the term of this warranty. Makita disclaims liability for any implied warranties, including implied warranties of "merchantability" and "fitness" for a specific purpose, after the three-year term of this warranty. This warranty gives you specific legal rights, and you many also have other rights which vary from state to state. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
