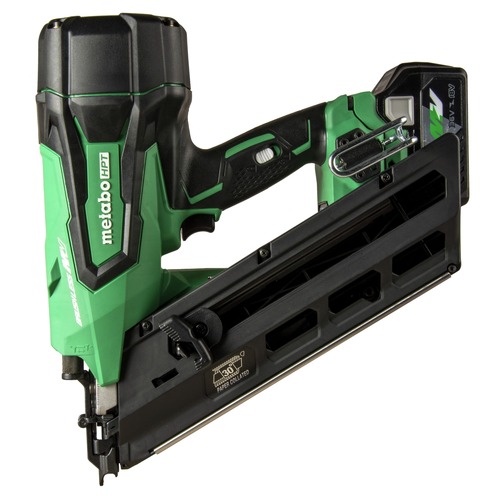

Metabo HPT NR3690DCM 36V MultiVolt 3-1/2 in. Cordless Paper Strip Framing Nailer Kit (2.5 Ah)

Metabo HPT Model: NR3690DCM

We’re sorry, but this item is no longer available.

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: Cancer and Reproductive Harm -- www.P65Warnings.ca.gov
Metabo HPT NR3690DCM 36V MultiVolt 3-1/2 in. Cordless Paper Strip Framing Nailer Kit (2.5 Ah) Metabo HPT Model: NR3690DCM

Product Features & specs :

30-Degree 36V Cordless Paper Strip Framing Nailer Combines pneumatic power with cordless freedom, delivering up to 3 nails per second, selective actuation, and the ability to drive 900 nails per charge.
Choose The Pro-Preferred Brand for 11 Years in a row
Level Up With Our Cordless Tools

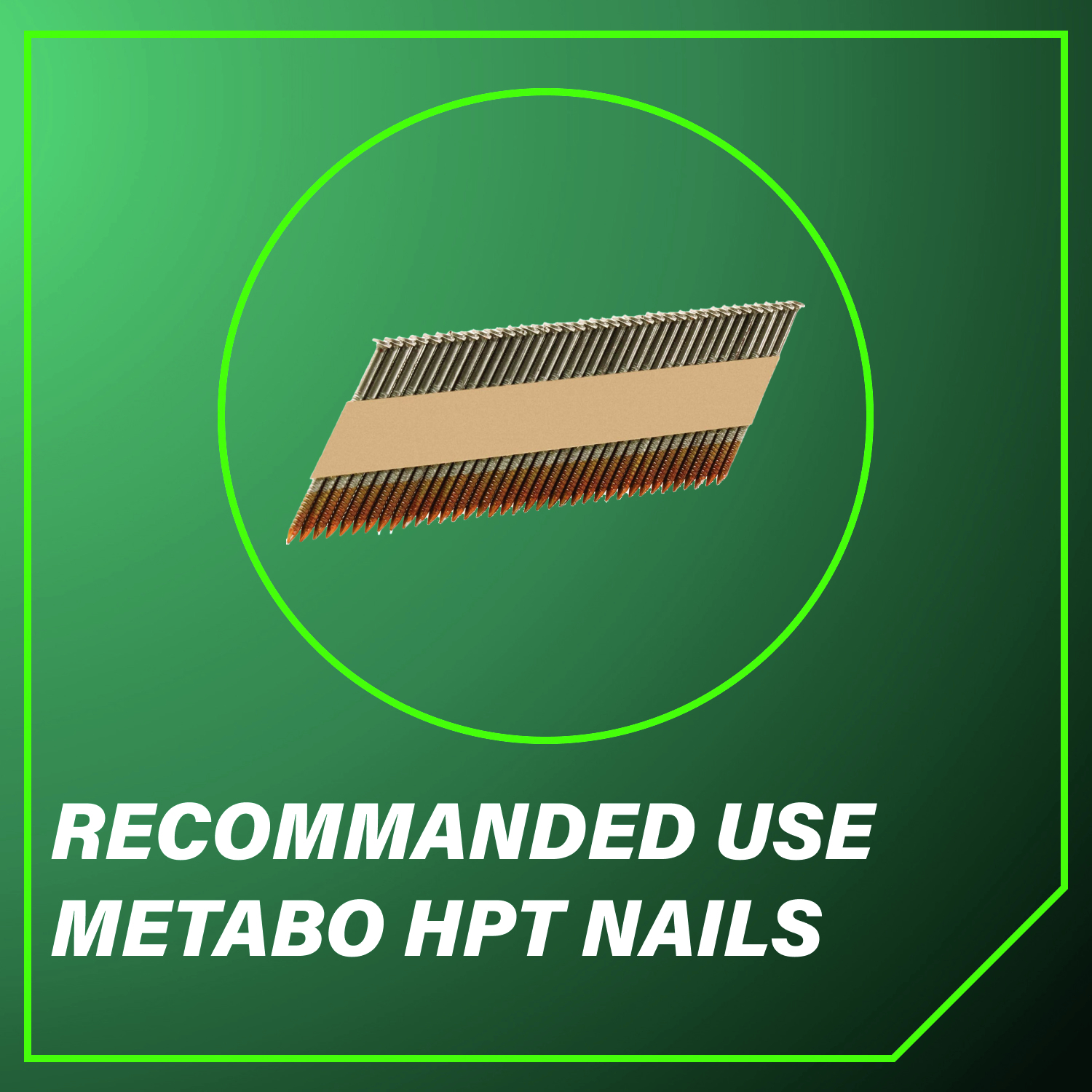

Recommended Use Metabo HPT Nails For the best performance and reliability

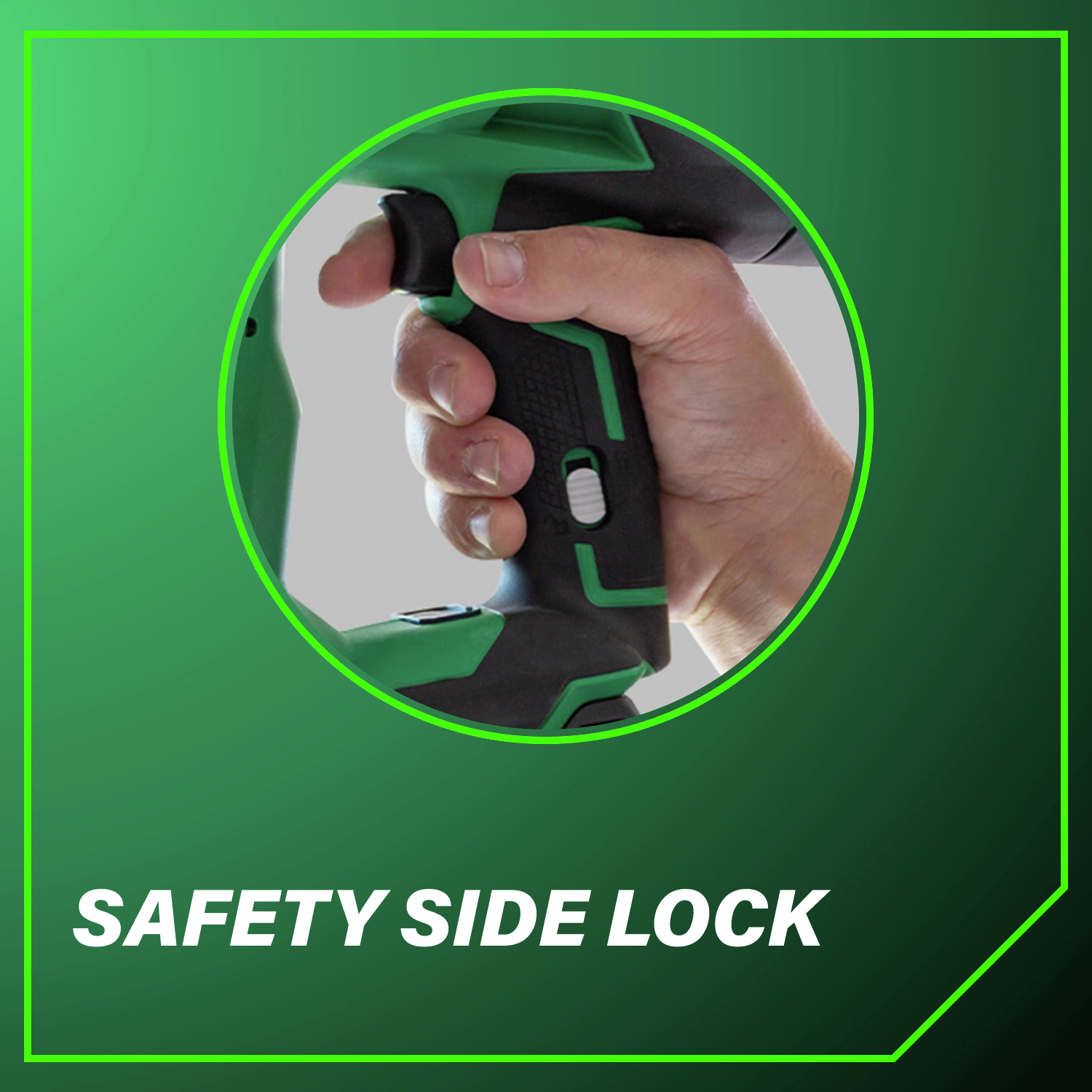

Safety Side Lock to prevent accidental activation and ensure secure operation.

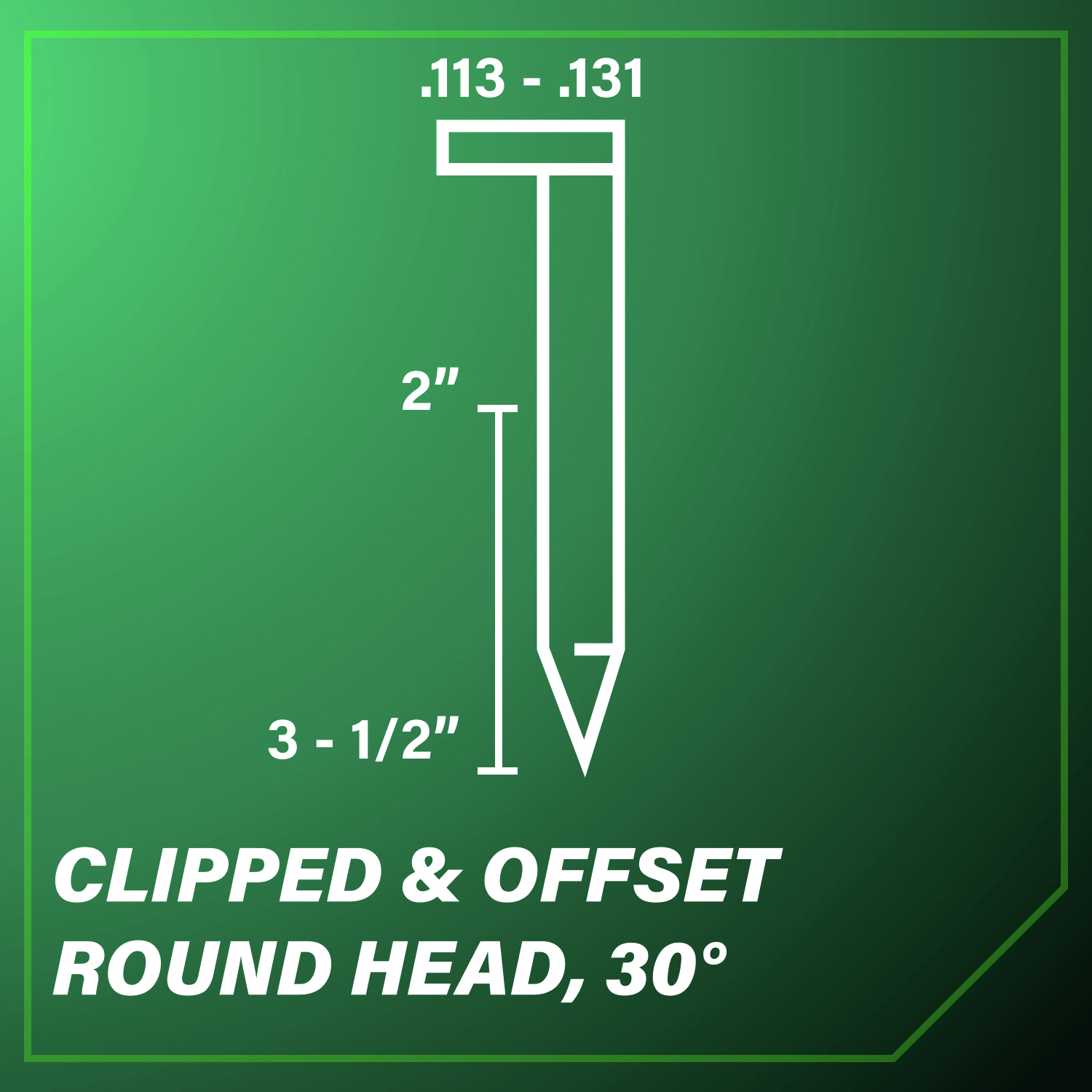

30-Degree Clipped and Offset Round Head Nail ranging in diameter from 0.113 in. to 0.131 in. and in length from 2 in. to 3-1/2 in

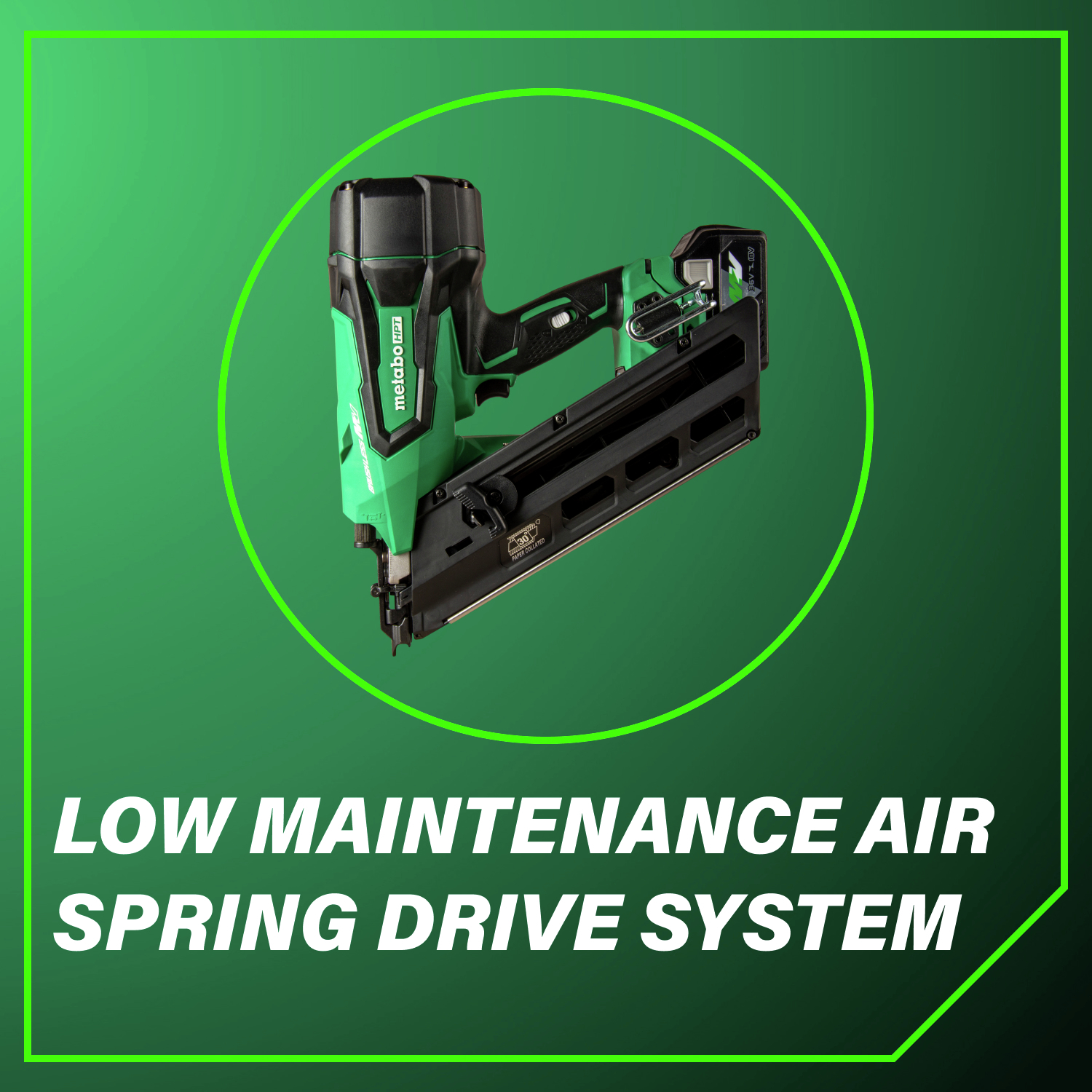

Low Maintenance Air Spring Drive System for reliable and efficient performance.

Metabo HPT NR3690DCM 36V MultiVolt 3-1/2 in. Cordless Paper Strip Framing Nailer Kit (2.5 Ah)

Details

The 36V MultiVolt 3-1/2 in. Cordless Paper Strip Framing Nailer (NR3690DC) is here to maximize efficiency on the jobsite, this cordless nailer allows for a productivity boost as you do not have to navigate long hoses around the jobsite. The Cordless Paper Strip Framing Nailer delivers a driving speed of 3 nails per second, increasing productivity and saving you valuable time.Thanks to Metabo HPT’s unique Air Spring Drive System, this 36V Cordless Clipped Head Framing Nailer delivers a feel and performance similar to that of a pneumatic nailer. The pneumatic-like feel combined with the convenience and power of the MultiVolt battery allows you to work with this cordless nailer all day long, driving clipped or off-set nails from 2 in. up to 3-1/2 in. in length and 0.113 in. up to 0.131 in. diameter. The included 2.5 Ah MultiVolt battery also drives 900 nails per charge.The Cordless Paper Framing Nailer is part of the expanding MultiVolt system of power tools from Metabo HPT. This nailer accepts any MultiVolt battery for extreme cordless power on the jobsite, and also accepts the unique 36V AC adapter to plug-in and work all day. This cordless Framing Nailer is backed by Metabo HPT’s Lifetime Lithium-Ion Tool body warranty and a 2-year Lithium-Ion battery warranty for peace of mind.

Features:

  • DRIVES: Up to 900 nails per charge with the included 2.5 Ah MultiVolt battery (371751M)

  • LIGHTWEIGHT: At only 10.6 lbs. and well-balanced allowing for ease of maneuverability and less user fatigue

  • SPEED: Drive 3 nails per second

  • AIR SPRING DRIVE SYSTEM: Delivers similar feel to a pneumatic nailer

What’s Included:

  • 36V MultiVolt 3-1/2 in. Cordless Paper Strip Framing Nailer Kit - NR3690DC

  • 36V/18V Lithium-Ion Rapid Charger w/ USB Port - UC18YSL3

  • (1) MultiVolt 36V/18V 2.5 Ah/5 Ah Lithium-Ion Battery - 371751M

  • 3 mm Hex Wrench - 943277

  • 4 mm Hex Wrench - 944458

  • Safety Glasses - 875769

  • Carrying Bag - 372294M

Dry Fire Lockout

Yes

Power Source

Cordless

Fastener Length (Max.)

3-1/2 in

Max. Fastener Length

3-1/2 in

Fastener Type

Framing Nails

UL Safety

Yes

CSA Safety

Yes

Wifi compatibility

No

Fastener Length (Min.)

2 in

Batteries Included

1

Jam Clearance

Open Nose

Battery Type

Li-Ion

Fastener Capacity

47

Case Included

Yes

Magazine Angle

30 Degrees

Case Type

Bag

Bluetooth Compatibility

No

Battery Amp Hour

2.5 Ah

Firing Modes

Full Sequential/Contact

Motor Type

Brushless

Voltage

36V

Min. Fastener Length

2 in

Battery Warranty

2 Year

Charger Included

Yes

Depth of Drive

Tool-Free

ETL Safety

Yes

Magazine Type

Rear Loading

Battery System

MultiVolt

Length

13.75 in.

Width

5 in.

Height

13.5 in.

Weight

10.6 lbs.

Warranty Term

Lifetime
