Mityvac MV8000 Automotive Tune-Up and Brake Bleeding KitMityvac Model: mtynmv8000
Product Features & specs :

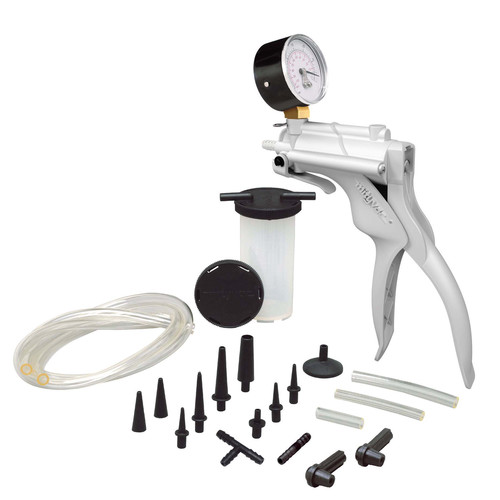

Mityvac MV8000 Automotive Tune-Up and Brake Bleeding Kit
The Mityvac MV8000 Automotive Tune-Up and Brake Bleeding Kit is the original hand vacuum kit used by service professionals worldwide for performing hundreds of automotive diagnostic and mechanical tests and for one-person brake bleeding.
The handheld vacuum pump is simple, accurate, easy to use, and has many applications. It consists of a pump body, moveable handle, vacuum gauge and connection fitting. The pump is easily held in your hand, and when the handle is squeezed, vacuum is produced at the front fitting. If the front fitting of the pump is connected to a closed container or system, the gauge will show the vacuum level.
Performs engine performance diagnostics, brake bleeding, fluid transfer, evacuation, sampling, windshield repair and more
Comfortable ergonomic handle design for decreased user fatigue
One-finger lever vacuum release for ease of use
Durable, accurate gearless diaphragm style vacuum gauge with pinned connection for 360 degree rotation
Mityvac Selectline Hand Vacuum Pump with 2 in. (50mm) Diameter Gauge
4.5 oz (135 ml) Fluid Reservoir with Transfer Lid, Storage Lid, and Fluid Pick-Up Tube
(6) Tapered Tube Adapters
(2) Universal Bleed Screw Adapters
(2) Tapered Manifold Plugs
(2) 1/4 in. ID x 24 in. Long (6.4mm ID x 610mm Long) Fluid Transfer Tubes
1/4 in. ID x 1-1/2 in. Long (6.4mm ID x 38mm Long) Reservoir Connection Tube
1/4 in. ID x 3-5/8 in. Long (6.4mm ID x 92mm Long) Fluid Pick-up Tube
5/32 in. ID x 3 in. Long (4mm ID x 76mm Long) Vacuum Line Connection Tube
5/32 in. (4mm) ID x 1/4 in. (6.4mm) ID Tube Adapter
Vacuum Line T-Adapter
Rubber Cup Adapter
User Manual (English, French, Spanish)
Automotive Tune-Up/Brake Bleeding Kit
Q & A :
Lincoln warrants the equipment manufactured and supplied by Lincoln to be free from defects in material and workmanship for a period of one (1) year following the date of purchase, excluding therefrom any special, extended, or limited warranty published by Lincoln. If equipment is determined to be defective during this warranty period, it will be repaired or replaced, within Lincoln's sole discretion, without charge.
This warranty is conditioned upon the determination of a Lincoln authorized representative that the equipment is defective. To obtain repair or replacement, you must ship the equipment, transportation charges prepaid, with proof of purchase to a Lincoln Authorized Warranty and Service Center within the warranty period.
This warranty is extended to the original retail purchaser only. This warranty does not apply to equipment damaged from accident, overload, abuse, misuse, negligence, faulty installation or abrasive or corrosive material, equipment that has been altered, or equipment repaired by anyone not authorized by Lincoln. This warranty applies only to equipment installed, operated and maintained in strict accordance with the written specifications and recommendations provided by Lincoln or its authorized field personnel.
THIS WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE WARRANTY OF MERCHANTIBILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
In no event shall Lincoln be liable for incidental or consequential damages. Lincoln's liability for any claim for loss or damages arising out of the sale, resale or use of any Lincoln equipment shall in no event exceed the purchase price. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, therefore the above limitation or exclusion may not apply to you.
This warranty gives you specific legal rights. You may also have other rights that vary by jurisdiction.
Customers not located in the Western Hemisphere or East Asia: Please contact Lincoln GmbH & Co. KG, Walldorf, Germany, for your warranty rights.
Lincoln Industrial Special Limited Warranties
SPECIAL LIMITED 2 YEAR WARRANTY- SL-V Series, Single Injectors-85772, 85782, and Replacement Injectors-85771, 85781
Lincoln warrants the SL-V Injector series to be free from defects in material and workmanship for two (2) years following the date of purchase. If an injector model (single or replacement) is determined to be defective by Lincoln, in its sole discretion, during this warranty period, it will be repaired or replaced, at Lincoln's discretion, without charge.
SPECIAL LIMITED 5 YEAR WARRANTY- Series 20, 25, 40 Bare Pumps, PMV Bare Pumps, Heavy Duty and 94000 Series Bare Reels
Lincoln warrants series 20, 25, 40 bare pumps, PMV bare pumps, Heavy Duty (82206), Mini Bench (81133, 81323), and 94000 LFR series (94100, 94300, 94500) bare reels to be free from defects in material and workmanship for five (5) years following the date of purchase. If equipment is determined by Lincoln, in its sole discretion, to be defective during the first year of the warranty period, it will be repaired or replaced at Lincoln's discretion, without charge. In years two (2) and three (3), the warranty on this equipment is limited to repair with Lincoln paying parts and labor only. In years four (4) and five (5), the warranty on this equipment is limited to repair with Lincoln paying for parts only.
SPECIAL LIMITED 5 YEAR WARRANTY-LFM Series Oil Meters (Lincoln Fluid Meter), LFV (Lincoln Fluid Valves), AOD (Air-Operated Diaphragm Pumps)
Lincoln warrants the LFM meter series (908/912 series), the Lincoln Fluid valve (708/712 series), and our AOD Pump offering to be free from defects in material and workmanship for five (5) years following the date of purchase. If either is determined to be defective by Lincoln, in its sole discretion, during the warranty period, they will be repaired or replaced, at Lincoln’s discretion, without charge.
Lincoln Industrial Contact Information
To find Lincoln Industrial’s Nearest Service Center:
Customer service at 314-679-4200
