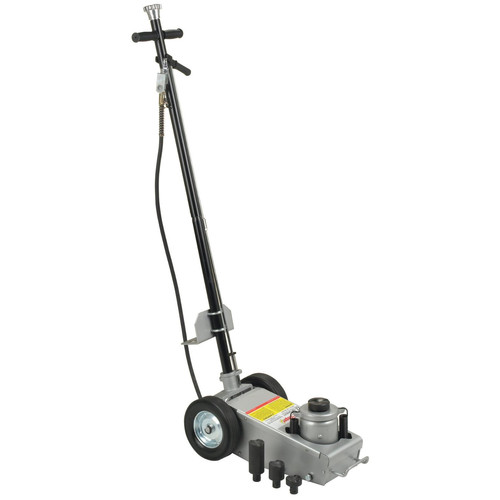

OTC Tools & Equipment 1788B 22-Ton Capacity Under-Axle Jack

Model: otcn1788b
        (0) Write The First Review
$667.99
free shipping
This item qualifies for
FREE SHIPPING
free shipping
This item ships directly from manufacturer
alert warning icon

Limit to null per order

OR PAY WITH

OTC Tools & Equipment 1788B 22-Ton Capacity Under-Axle Jack Model: otcn1788b
price for vip customer
$667.99

OR PAY WITH

Product Features & specs :

OTC Tools & Equipment 1788B 22-Ton Capacity Under-Axle Jack

Details
OTC tool 1788B 22-Ton Axle Jack has a feature of spring return and Self- retracting. Its long 49-1/2in T-handle lets you easily position jack under vehicles with long overhangs. One pull of the handle activates the self-retracting 22-ton capacity ram without having to crawl underneath the vehicle. The jack has large rubber-tired wheel and three saddle sizes (3/4in, 1-15/16in, 3-7/8in). For product?s specification: Lifting Range. 0.75in Saddle - 17-0.75in max height. 1-15/16in Saddle - 18-15/16in max height. 3-7/8 in. Saddle - 20-7/8 in. max height. Cylinder Stroke - 4.5 in.Extended Screw Length - 4.25 in. PSI Range - 90 to 145.
Features:
  • Self-retracting, spring return feature
  • Long 49-1/2in T-handle lets you easily position jack under vehicles with long overhangs
  • One pull of the handle activates the self-retracting 22-ton capacity ram without having to crawl underneath the vehicle
  • Includes 3 saddle sizes (3/4in, 1-15/16in, 3-7/8in)
What’s Included:
  • 22-Ton Capacity Under-Axle Jack - 1788B
Weight
110 lbs.
Height (Max.)
17.75 in, 18.94 in, 20.88 in
Height (Min.)
0.75 in, 1.94 in, 3.88 in
Load Capacity
22 tons
Saddle Size
0.75 in, 1.94 in, 3.88 in
