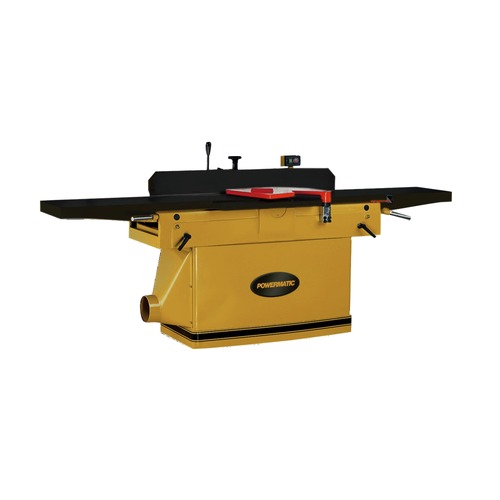

Powermatic PM1-1791283T-4 PJ1696T 460V 7.5 HP 3-Phase 16 in. Helical Cutterhead Parallelogram Jointer with ArmorGlide

Powermatic Model: pwmnpm1-1791283t-4
See Price in Cart tool tip icon

Why is the price hidden?

We want to pass on our savings to our customers, so we've lowered the price of this item. However, since our price is now below the manufacturer's suggested retail price, we are restricted by the manufacturer from showing the price right away.
promo-icon

Powermatic Machinery and Accessories Sale - Save 10% See Details

See More
See Less
free shipping
FREE shipping on orders $149+
free shipping
This item ships directly from the manufacturer.
alert warning icon

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to chemicals including Lead, a chemical known to the State of California to cause Cancer and Birth Defect/Reproductive Harm and Lead and lead compounds, a chemical known to the State of California to cause Cancer. For more information go to www.P65Warnings.ca.gov.
Powermatic PM1-1791283T-4 PJ1696T 460V 7.5 HP 3-Phase 16 in. Helical Cutterhead Parallelogram Jointer with ArmorGlide Powermatic Model: pwmnpm1-1791283t-4
See Price in Cart tool tip icon

Why is the price hidden?

We want to pass on our savings to our customers, so we've lowered the price of this item. However, since our price is now below the manufacturer's suggested retail price, we are restricted by the manufacturer from showing the price right away.

OR PAY WITH

Product Features & specs :

Powermatic PM1-1791283T-4 PJ1696T 460V 7.5 HP 3-Phase 16 in. Helical Cutterhead Parallelogram Jointer with ArmorGlide

Details

Now featuring ArmorGlide Technology that is low-friction and rust-resistant, the Powermatic PJ1696T 16 in. Jointer offers big capacity, and performance in a machine that is loaded with features. Large center-mounted fence assembly adjusts easily on a rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45 degrees in and out, and a positive stop for perfect 90 degrees angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty. The specially-designed solid steel helical cutterhead consists of 6 rows of precision-ground staggered inserts. This system makes fast work of knife changing and never needs adjustment. The heavy-duty 7.5 HP motor delivers all the power you need for even the biggest jobs.

Features:

  • ArmorGlide Technology gives you a low-friction, industrial-grade coating on the work surface that is rust resistant, requires less maintenance, and gives you more control

  • Cast iron fence bevel controls with positive stops at 45 degrees and 90 degrees

  • Full size rabbeting table supports large workpieces for rabbets up to 3/4 in. deep

  • Helical cutterhead with (58) 2-sided knife inserts reduces noise, eliminates adjustments, and speeds knife change

  • Large 16 in. x 96 in. precision ground cast iron table surface for maximum support and fine finish

  • Parallelogram construction maintains close table-to-cutterhead proximity and ensures table parallelism

  • Rack and pinion adjustable cast iron fence system for smoother fence positioning and sturdy work support

What’s Included:

  • PJ1696T 460V 7.5 HP 3-Phase 16 in. Helical Cutterhead Parallelogram Jointer with ArmorGlide - PM1-1791283T-4

Power Source

Corded

Fence Length

47-1/4 in

PreWired Voltage

460V

Wifi compatibility

No

Fence Height

5-1/4 in

Bluetooth Compatibility

No

Cutterhead Speed (RPM)

5200

Cutterhead Diameter

4 in

Fence Tilt (Rear)

45 Degrees

No. of Knives

58

Fence Tilt (Front)

45 Degrees

Dust Port Size

6 in

Rabbeting Capacity

3/4 in

Motor Phase

3

Horsepower

7.5

Voltage

460V

Max. Cut Capacity (Depth)

3/4 in

Max. Cut Capacity (Width)

16 in

Cutterhead Style

Helical

Length

46 in.

Width

96 in.

Height

43 in.

Weight

1280 lbs.

Warranty Term

5 Year
