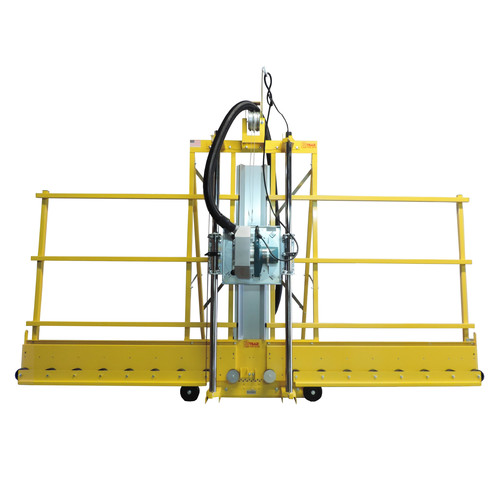

Saw Trax 3050 Full Size 50 in. Cross Cut Vertical Panel Saw

Saw Trax Model: stxn3050
ratings        (0) Write The First Review
$4,321.55
See More
See Less
free shipping
This item qualifies for
FREE SHIPPING
free shipping
This item ships directly from manufacturer in 1-2 weeks
alert warning icon

OR PAY WITH

Saw Trax 3050 Full Size 50 in. Cross Cut Vertical Panel Saw Saw Trax Model: stxn3050
price for vip customer
$4,321.55

OR PAY WITH

Product Features & specs :

Saw Trax 3050 Full Size 50 in. Cross Cut Vertical Panel Saw

Details
The Saw Trax Full Size 3000 Series panel saw features a 120 inch wide frame and easily performs both vertical and horizontal cuts in your material. Available vertical cut heights include 50in., 62 in., and 74 in.. This series includes an accessory package recommended for customers cutting melamine, custom doors and other material up to 2-1/2 inches thick.
Features:
  • Sealed Steel Bearing system for smooth and precise pulls on the guide tubes
  • Patented Accu-Square system to keep your cuts precise
  • Interchangable insert plates with additional accessories and cutting options
  • Stop Block with Bar, and Measuring Tapes is able to be used on either side of the unit
  • Uses the Milwaukee 6440-21 10-1/4 in. Circular Saw to provide a 2-1/2 in. cut depth
What’s Included:
  • 50 in. Vertical 120 in. Frame Panel Saw - 3050
  • Milwaukee 10 inch Saw 6470-21
  • Spinning Saw Insert Plate
  • Dust hood, hose, and Dust Containment Brush
  • Folding Stand and Transport Wheels
  • Steel covered material rollers
  • Dual Rip Gauge
  • Stop Block with Bar and horizontal measuring tape for making convenient repetitive cuts
Blade Speed (RPM)
5200
Power Source
Corded
Amperage
15
UL Safety
Yes
Wifi compatibility
No
Blade Diameter
10-1/4 in
Bluetooth Compatibility
No
Cross Cut Capacity
50 in
Motor Type
Brushed
Frame Width
120 in
Material Thickness (Max.)
2-1/2 in
Arbor Size
5/8 in
CSA Safety
No
Voltage
120V
ETL Safety
No
Length
42 in.
Width
121 in.
Height
77 in.
Weight
445 lbs.
Warranty Term
1 Year

Reviews :

5.0 / 5.0
1 Review
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
1
0
0
0
0
Would you recommend this product?
Yes (1)
Pros
Easy To Use (1)
Powerful (1)
Value (1)
Cons
Loud (1)
Best Uses
Frequent Use (1)
Large Projects (1)
Would you recommend this product?
Yes
Pros
Easy To Use
Powerful
Value
Cons
Loud
Best Uses
Frequent Use
Large Projects
Handles my 2 inch depth
It works as advertised! It actually cuts the 2 inches I need and does it easily and accurately. Even more surprising was that the dust doesn't end up everywhere. They have this little brush around the blade that knocks all of the dust down to the floor. Very happy with my purchase.
January 15, 2018
Describe Yourself:
Professional

Q & A :

Start typing your question and we'll check if it was already asked and answered. Learn More
No questions have been asked about this item. Be the first!

Warranty:

Warranty Information

Every Saw Trax Vertical Panel Saw is thoroughly inspected before leaving the factory. It is warranted to be free from defects from workmanship and materials for one year on all components except the saw motor. Should any trouble develop during the warranty period, contact us for a RMA & return that component with proof of purchase date, freight prepaid to Saw Trax Mfg. Co. Inc. If inspection shows the trouble caused by defective workmanship or materials, Saw Trax Mfg. Co. Inc. will repair (or, at our option, replace) without charge.


This warranty does not apply where:

  1. - Repairs have been made or attempted by others.

  2. - Repairs are required because of normal wear and tear.

  3. - The tool has been abused, misused or improperly maintained.

  4. - Alterations have been made to the tool.

  5. - Corrosion and / or rust have developed due to scratches in the finish.

  6. - The saw motor is covered by the saw manufacturer’s warranty and is not covered by Saw Trax Mfg., Inc.


In no event shall Saw Trax Mfg. Co., Inc. be liable for any indirect, incidental or consequential damages from the sale or use of this product. This disclaimer applies both during and after the duration of this warranty.

Saw Trax Mfg. Co. Inc. disclaims liability for any implied warranties, including (but not limited to) implied warranties of “merchantability” and/or “fitness” for a specific purpose, after the term of this warranty.
