Saw Trax Sign Maker Compact 52 in. Cross Cut Vertical Panel Saw

Saw Trax Model: C52SM
$3,523.55
See More
See Less
free shipping
FREE shipping on orders $149+.
free shipping
This item ships directly from manufacturer in 1-2 weeks
alert warning icon

OR PAY WITH

Saw Trax Sign Maker Compact 52 in. Cross Cut Vertical Panel Saw Saw Trax Model: C52SM
price for vip customer
$3,523.55

OR PAY WITH

Product Features & specs :

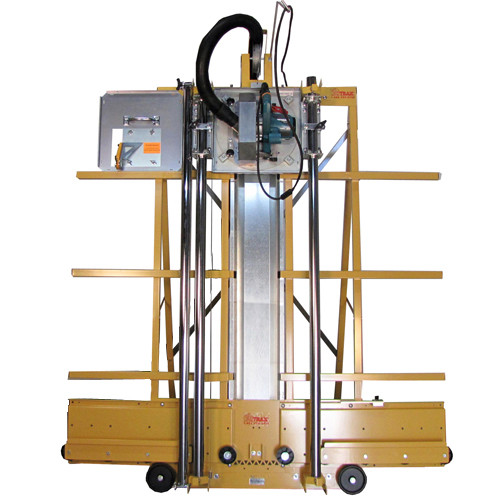

Saw Trax C52SM Sign Maker Compact 52 in. Cross Cut Vertical Panel Saw

Details

Sign Shops cut a variety of material, not just wood, materials such as aluminum composites, corrugated plastics, foam board, PVC material, wood and much more. For some time, sign shops had to use different machines to cut each material. Thankfully, those days are gone, with the help of our Sign Maker's Series.

Features:

  • Has a 7.25 in. blade that can be easily changed and replaced when needed

  • Sealed Steel Bearing system for smooth and precise pulls on the guide tubes

  • Patented Accu-Square system to keep your cuts precise

  • Interchangable insert plates with additional accessories and cutting options

  • Stop Block with Bar is able to be used on either side of the unit

What’s Included:

  • 52 in. Vertical 60 in. Compact Frame Panel Saw - C52SM

  • Makita 5007F Saw

  • Spinning Saw Insert Plate

  • Dust hood, hose, and Dust Containment Brush

  • Folding Stand and Transport Wheels

  • Dual Rip Gauge

  • Stop Block with Bar, and Measuring Tapes

  • Spring Hold Down Bar

  • Pivoting Knife Cutter

  • OLFA(R) Pivoting Knife Insert Plate

Blade Speed (RPM)

5800

Power Source

Corded

Amperage

15

Wifi compatibility

No

Blade Diameter

7-1/4 in

Bluetooth Compatibility

No

Cross Cut Capacity

52 in

Motor Type

Brushed

Frame Width

60 in

Arbor Size

5/8 in

Material Thickness (Max.)

1-3/4 in

Voltage

120V

Length

60 in.

Weight

347 lbs.

Warranty Term

1 Year

Reviews :

Q & A :

Warranty:

Warranty Information

Every Saw Trax Vertical Panel Saw is thoroughly inspected before leaving the factory. It is warranted to be free from defects from workmanship and materials for one year on all components except the saw motor. Should any trouble develop during the warranty period, contact us for a RMA & return that component with proof of purchase date, freight prepaid to Saw Trax Mfg. Co. Inc. If inspection shows the trouble caused by defective workmanship or materials, Saw Trax Mfg. Co. Inc. will repair (or, at our option, replace) without charge.


This warranty does not apply where:

  1. - Repairs have been made or attempted by others.

  2. - Repairs are required because of normal wear and tear.

  3. - The tool has been abused, misused or improperly maintained.

  4. - Alterations have been made to the tool.

  5. - Corrosion and / or rust have developed due to scratches in the finish.

  6. - The saw motor is covered by the saw manufacturer’s warranty and is not covered by Saw Trax Mfg., Inc.


In no event shall Saw Trax Mfg. Co., Inc. be liable for any indirect, incidental or consequential damages from the sale or use of this product. This disclaimer applies both during and after the duration of this warranty.

Saw Trax Mfg. Co. Inc. disclaims liability for any implied warranties, including (but not limited to) implied warranties of “merchantability” and/or “fitness” for a specific purpose, after the term of this warranty.
