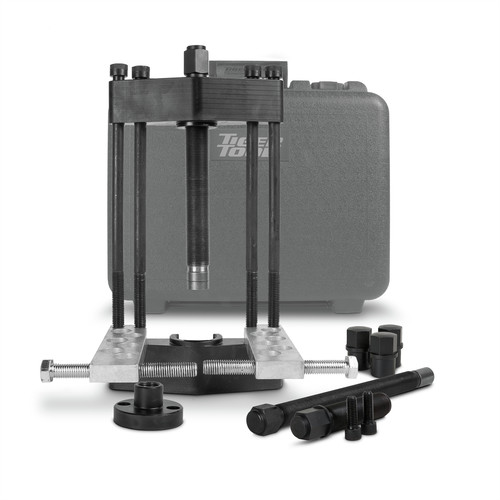

Tiger Tool Heavy Duty King Pin Press

Tiger Tool Model: 90150
$1,849.99
free shipping
FREE shipping on orders $149+
free shipping
This item ships directly from manufacturer in 3-5 days
alert warning icon

OR PAY WITH

Tiger Tool Heavy Duty King Pin Press Tiger Tool Model: 90150
price for vip customer
$1,849.99

OR PAY WITH

Product Features & specs :

Tiger Tool Heavy Duty King Pin Press

Details

Our King Pin Press includes three different forcing screw options, giving you the ability to service everything from 3/4 ton pickups up to Class 8 trucks. A shortened 1 1/4 in. forcing screw allows you to access king pins from the hardest to reach places and tightest wheel wells – even on busses. We’ve also included our three most popular tie rod end removers: 7/8 in, 3/4 in, and 20mm.

Features:

  • Remove king pins in minutes with relative ease and efficiency. The patented design of the 90150 King Pin Press weighs 75% less than our closest competitor and requires only one operator to use

  • (3) Different forcing screw options are included, providing the technician the ability to service everything from 3/4 ton pickups to Class 8 trucks

  • A shortened 1-1/4 in. forcing screw allows you to access king pins in the tightest wheel wells - even on buses

  • Our 3 Most popular tie rod end removers are also included: 10301, 10302 and 10304

  • Commonly found on class 3-8 trucks and equipment. (Ram 3500/5500, Chevrolet 3500/5500, Ford F-350/550, Isuzu NPR, Kenworth, Peterbilt, Freightliner, Mack, Volvo, etc.)

  • Straight and tapered king pins from 7/8 in. to 2 5/32 in.

  • Optionally, you can service Isuzu NPR & GMC/Chevrolet W-series trucks with the 90151 Adapter

  • Optionally, you can remove 2 1/4 in. King Pins with the 90152 Clearance Plate Adapter

  • Not compatible with FL981 axles where the tie rod is cast to the spindle

What’s Included:

  • Heavy Duty King Pin Press - 90150

  • Three Forcing Screws

  • Tie Rod End Removers: 7/8 in, 3/4 in, and 20mm

Construction

Steel

Compatible Models

Class 3 - 8 Trucks/Isuzu NPR/Chevrolet/Ford F-350/550/Kenworth/Peterbilt/Freightliner

Length

26 in.

Width

23 in.

Height

11 in.

Weight

44.55 lbs.

Warranty Term

1 Year
