Detail K2 40PUS12 Warrior Trojan 4000 lbs. Capacity Portable Utility Winch with Steel Cable

Detail K2 Model: dtln40pus12
$454.99
free shipping
FREE shipping on orders $149+
free shipping
This item ships directly from manufacturer in 5-7 business days
alert warning icon

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: Cancer and Reproductive Harm -- www.P65Warnings.ca.gov
Detail K2 40PUS12 Warrior Trojan 4000 lbs. Capacity Portable Utility Winch with Steel Cable Detail K2 Model: dtln40pus12
price for vip customer
$454.99

OR PAY WITH

Product Features & specs :

Detail K2 40PUS12 Warrior Trojan 4000 lbs. Capacity Portable Utility Winch with Steel Cable

Details

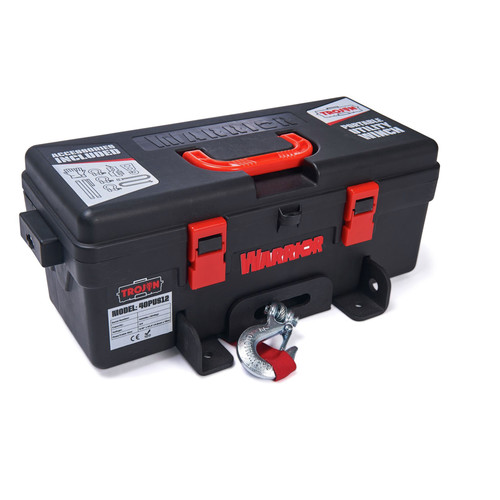

The Trojan Portable Utility Winch is a complete winching solution in a convenient kit that features a 4000 lbs. rated line pull winch on a unique powder coated winch platform, all in a compact, easy to carry composite tool box. The kit is easy to store, use, and repack. Completely portable, the Trojan requires no installation and does not require a winch mount; however, it can be permanently mounted on a trailer and be used as a utility winch if desired.

Features:

  • 4000 lbs. Pulling Power

  • Built in 1/4 in. hardened steel plate

  • Can be permanently mounted

  • Quick plug and play functionality

  • Included with the Trojan: Quick Connect Cord with Alligator Clips, Heavy Duty Leather Palmed Winch Gloves, 6000 lbs. Pulley Block, 3.6 m (12 ft.) Hand Remote, (3) 20000 lbs. D-shackles, (2) 8 ft. Heavy Duty Straps Rated 8000 lbs.

  • Rated Line Pull: 4000 lbs. (1814 kg.); Motor at 12V: 2.4kW / 3.2 HP; Gearing: 166:1; Drum Size - Dia x L: 50.4 mm x 82 mm (1.98 in. x 3.2 in.); Cable - Dia x L: 5.4 mm x 12.8 m (0.2 in. x 42 ft.); Dimensions: 506 mm x 304.5 mm x 192.2 mm (19.9 x 12 x 7.6in); Mounting Pattern: 210 mm x 234 mm (8.3 in. x 9.2 in.); Weight (kg): 20.5 kg. (45.2 lbs.)

  • Layer of Rope/Cable, Line Pull: lbs. (kg.), Rope on drum ft. (m): 1, 4000 (1814), 8.5 (2.6); 2, 3351 (1520), 18.7 (5.7); 3, 2883 (1307), 29.8 (9.1); 4, 2530 (1147), 42 (12.8)

  • Line Pull (lbs. / kg.), Line Speed at 12V ft./min. (m/min.), Amp Draw at 12V: 0, 14.4 (4.4), 28; 1000 (454), 9.8 (3), 80; 2500 (1135), 7.2 (2.2), 150; 4000 (1814), 4.9 (1.5), 190

  • Note: Slight color variations may occur from images shown

What’s Included:

  • Warrior Trojan 4000 lbs. Capacity Portable Utility Winch with Steel Cable - 40PUS12

  • Included with the Trojan: Quick Connect Cord with Alligator Clips, Heavy Duty Leather Palmed Winch Gloves, 6000 lbs. Pulley Block, 3.6 m (12 ft.) Hand Remote, (3) 20000 lbs. D-shackles, (2) 8 ft. Heavy Duty Straps Rated 8000 lbs.

Cable Length

42 ft

Weight Capacity

4000 lbs

Horsepower

3.2

Voltage

12V

Cable Diameter

0.2 in

Length

19.9 in.

Width

12 in.

Height

7.6 in.

Weight

45.2 lbs.

Warranty Term

1 Year
