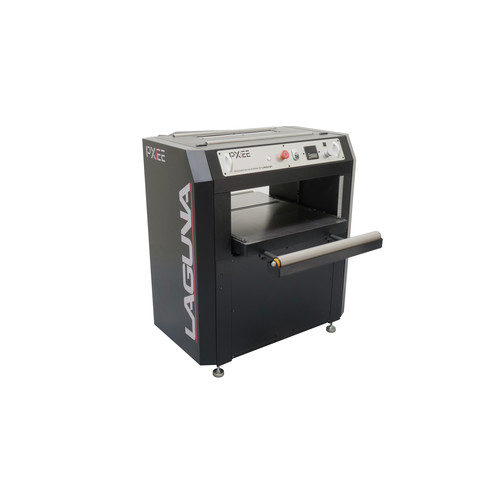

Laguna Tools PX22 ShearTec II 220V 32 Amp 7.5 HP 1-Phase Planer

Laguna Tools Model: MPLANPX2275-0130
$8,198.00
promo-icon

Woodworking Buy More Save More! $500 off $3000 | $200 off $1500 | $50 off $500 Use Code: SPRINGWOODWORK See Details

See More
See Less
free shipping
FREE shipping on orders $149+
free shipping
This item ships directly from the manufacturer.
alert warning icon

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood.Cancer
Laguna Tools PX22 ShearTec II 220V 32 Amp 7.5 HP 1-Phase Planer Laguna Tools Model: MPLANPX2275-0130
price for vip customer
$8,198.00

OR PAY WITH

Product Features & specs :

Laguna Tools PX22 ShearTec II 220V 32 Amp 7.5 HP 1-Phase Planer

Details

The all-new PX22 planers are an innovative new design for Laguna planers. The Laguna PX22 planers are loaded with features to make woodworking safer and more enjoyable. The PX22 is available in 2 configurations: 7.5 HP 1-phase or 10 HP 3-phase.

Features:

  • Motor - The PX22 comes with either 7.5 HP 1-Phase or 10 HP 3-Phase motor

  • Segmented Infeed Roller - Allows for multiple boards to be fed without having individual boards stall out due to small variations in thickness

  • Electronic Variable Speed - Allows users to speed up the material feed for quick thicknessing or to use slower rates for more cuts per inch. This feature is something that is normally found on much more expensive models

  • Infeed and Outfeed Rollers - The PX

  • 22 features infeed and outfeed rollers to assist with material loading and feeding and provide a compact footprint.

  • Digital Readout - The DRO makes setting precise thickness easier

  • Ergonomic Control Panel - Machine controls and DRO have been moved to the control panel at the top of the machine and angled toward the machine operator for easy access and better visibility

  • Improved Dust Collection - The 5” diameter dust chute offers the option to point to right or left to optimize dust collection system layout

  • 4-Post Bed Support - Provides precise and consistent performance with every cut

  • ShearTec II Cutterhead - The ShearTec II is standard on the PX20 Planer

What’s Included:

  • PX22 ShearTec II 220V 32 Amp 7.5 HP 1-Phase Planer - MPLANPX2275-0130

Power Source

Corded

Amperage

32

Wifi compatibility

No

Material Thickness (Max.)Material Length (Min.)

8 in / 9 in

Max. Material Thickness

8 in

Bluetooth Compatibility

No

Cutterhead Speed (RPM)

5000

Cutterhead Diameter

3-1/2 in

Dust Port

Yes

Feed Rate - Moulding (FPM)

10 - 30

CSA Safety

Yes

Dust Port Size

5 in

Motor Phase

1

Horsepower

7.5

Voltage

220V

Length

40 in.

Width

46 in.

Height

42 in.

Weight

867 lbs.

Warranty Term

2 Year
