Freeman PFR3490 3-1/2 in. 34 Degree Clipped Head Framing NailerFreeman Model: fmnnpfr3490
Product Features & specs :

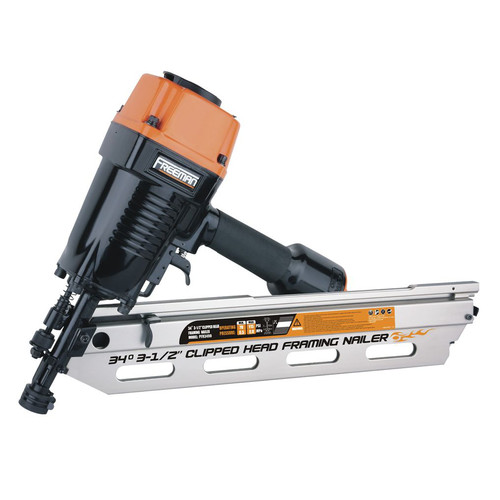

Freeman PFR3490 3-1/2 in. 34 Degree Clipped Head Framing Nailer
Freeman's pneumatic PFR3490 3-1/2 in. 34 Degree Clipped Head Framing Nailer easily handles any project involving framing, sub-floors, decking, fencing and more. The PFR3490 features all the upgraded internal components of a typical Freeman nailer, including a 360 degree adjustable exhaust, a one-piece drive blade, Teflon O-Rings, anti-dry firing mechanism and anodized aluminum magazines and cylinder for increased durability and tool life.
With an easy to use two finger depth adjustment dial, the PFR3490 allows for quick adjustments to nail depth on any project - no tools required. It also features a magnesium constructed body to help reduce the overall weight, resulting in less fatigue over extended periods of operation.
Anodized aluminum rail and cylinder construction improves overall tool life
Too-less depth adjustment system makes it quick and easy to adjust driving depth for the project at hand
Lightweight magnesium housing and construction improves comfort and control during operation
Anti-dry firing mechanism helps prevent tool damage from dry firing when empty
Non-marring nose tip prevents damage to the work piece during use
Teflon O-Rings provide a tight seal for maximum air transfer efficiency
Interchangeable single fire and bump fire triggers provide versatile operation on all projects
3-1/2 in. 34 Degree Clipped Head Framing Nailer - PFR3490
Single Fire Trigger
Bump Fire Trigger
Fastener Length (Min.)
Dry Fire Lockout
Fastener Length (Max.)
Max. Fastener Length
Operating Pressure (PSI)
70 - 115
30 - 34 Degrees
Air Inlet Size
Min. Fastener Length
0.113 in - 1.310 in
Plastic Strip Collation
Depth of Drive
7 Year Limited
Q & A :
Freeman 7 Year Warranty
This warranty of Freeman Pneumatic Nail Guns (the “Freeman Product”) extends exclusively to the original purchaser of the Freeman Product seven (7) years from the original purchase date as shown by the proof of purchase. PGP Inc. expressly warrants that the Freeman Product is free from defect in materials and workmanship subject to the exceptions and limitations contained herein. This warranty is the sole and exclusive warranty, express or implied for the Freeman Product. No employee, agent, dealer or other person is authorized to alter, modify, expand or reduce the terms of this warranty or to make any other warranty on behalf of PGP Inc. This express limited warranty contains the entire agreement regarding express and implied warranties related to the Freeman Product. No writing or languages in the purchase order or any other document shall be construed as an addition or alteration of PGP Inc.’s warranty of the Freeman Product.
PGP Inc. shall repair or replace, at its option, a Freeman Product that has a defect in materials or workmanship. The original purchaser must return the complete Freeman Product, postage prepaid and insured, with proof of purchase to PGP Inc. or its authorized service centers. Other than the postage and insurance requirement, no charge will be made for repairs covered by this warranty.
This warranty does not apply to defects in materials or workmanship or damages resulting from repairs or alterations which have been made or attempted by others or the unauthorized use of nonconforming parts. It further does not apply if the damage is due to normal wear and tear, abuse, improper maintenance, neglect or accident or caused by use of the Freeman Product after partial failure or use with improper accessories. PGP Inc’s driver blades, bumpers, o-rings, pistons, trigger mechanism, springs, and gaskets are considered normal wearing parts and are not covered by this warranty.
The Freeman Product is intended for use by individuals and not for use on an assembly or production line. The Freeman Product is intended for use by individuals and not for use on an assembly lines, production lines or other commercial applications. This warranty does not extend to such commercial use as it constitutes abuse of the Freeman Product.
NO WARRANTY, ORAL OR WRITTEN, EXPRESSED OR IMPLIED, OTHER THAN THE ABOVE WARRANTY IS MADE WITH REGARD TO THIS FREEMAN PRODUCT. PGP INC. DISCLAIMS ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR PURPOSE, AND ALL OTHER WARRANTIES. IN NO EVENT SHALL PGP INC. BE LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL OR PUNITIVE DAMAGES, OR FOR ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS ALLEGED TO BE AS A CONSEQUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PRODUCT INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS.
Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
These warranties are subject to change without notice
