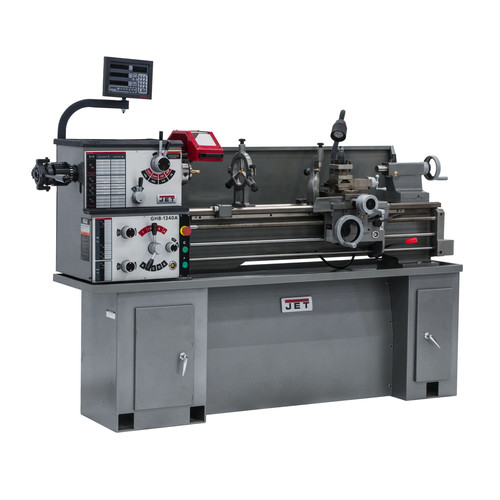

JET 321127 GHB-1340A 230V Head Bench Lathe with ACU-RITE 200S DRO, Taper Attachment and Collet Closer

JET Model: jetn321127
ratings        (0) Write The First Review
Price reduced from $12,479.00 to Save 10% $11,231.10

Jet Sale! Price reflects discount on this item! See Details

See More
See Less
free shipping
This item qualifies for
FREE SHIPPING
free shipping
This item ships directly from manufacturer
alert warning icon

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
JET 321127 GHB-1340A 230V Head Bench Lathe with ACU-RITE 200S DRO, Taper Attachment and Collet Closer JET Model: jetn321127
price for vip customer
Price reduced from $12,479.00 to Save 10% $11,231.10

OR PAY WITH

Product Features & specs :

JET 321127 GHB-1340A 230V Head Bench Lathe with ACU-RITE 200S DRO, Taper Attachment and Collet Closer

Details
JET geared head bench lathes feature an enclosed gearbox for smooth, quiet operation. Precision roller bearings support the hardened and ground spindle resulting in tight tolerances. Each JET Lathe comes loaded with features you've come to expect, all backed by the industry leading JET Two Year Warranty.
Features:
  • One of the most popular JET lathes now comes with an enclosed gear box
  • Enclosed gearbox design provides smooth, quiet operation
  • Fast, easy speed changes
  • Hardened and ground gears are featured in the headstock and gearbox
  • D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings
  • Headstock is constantly oiled during operation
  • Gear box gives wide inch threading and feed capabilities with no gear changes
  • V-way bed design is induction hardened and ground
  • Gap bed section provided for longer diameter work
  • Independent leadscrew and feed rod
What’s Included:
Spindle Speed Settings
8
Power Source
Corded
Range of Inch Threads (TPI)
3-1/2 - 80
Spindle Bore Diameter
1-3/8 in
PreWired Voltage
230V
UL Safety
No
Range of Cross Feeds (IPR)
0.0006 - 0.0130
Swing Range (Gap)
18-3/4 in
CSA Safety
No
Distance Between Centers
40 in
Bed Width
7-3/8 in
Tool Size
5/8 x 5/8 in
Gap Length
8 in
Swing Range (Cross Slide)
7-25/32 in
No. of Inch Threads
38
Motor Phase
1
Range of Longitudinal Feed Rates (IPR)
0.0018-0.0374 in
Bed Construction
Cast Iron
Spindle Taper (Tailstock)
MT-3
Cross Slide Travel
6-5/16 in
Horsepower
2
Motor Type
Brushed
Voltage
230V
Spindle Mount Taper
Yes
Carriage Travel
35 in
Spindle Speed Range (RPM)
2000
Compound Slide Travel
2-11/16 in
Range of Metric Threads
0.45 - 10
Spindle Travel (Tailstock)
3-3/4 in
Steady Rest Capacity
2-3/8 in
No. of Metric Threads
23
Drive Type
Geared Head Clutch
Follow Rest Capcacity
2-3/8 in
No. of Longitudinal Feed Rates
40
No. of Cross Feed Rates
40
Swing Range (Bed)
13 in
ETL Safety
No
Spindle Mount
Yes
Length
79 in.
Width
28.5 in.
Height
30 in.
Weight
1154 lbs.
Warranty Term
2 Year
