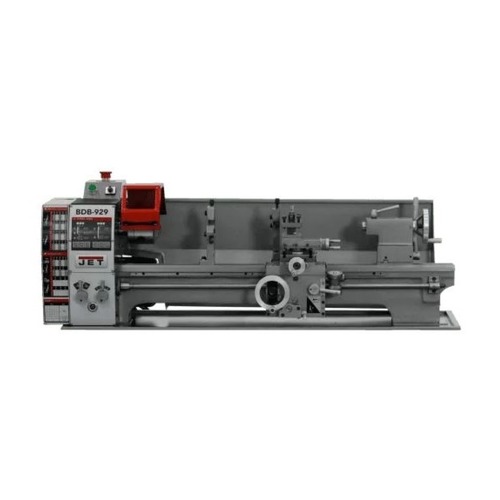

JET 321379 9 x 29 BDB-929 Belt Drive Bench Lathe

JET Model: jetn321379
ratings        (0) Write The First Review

Want an email when this item is in stock?

OUT OF STOCK
CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
JET 321379 9 x 29 BDB-929 Belt Drive Bench Lathe JET Model: jetn321379

Product Features & specs :

JET 321379 9 x 29 BDB-929 Belt Drive Bench Lathe

Details
The BDB-929 benchtop lathe is the essential step to improving your shop’s capabilities. Engineered with precision induction hardened ground bed-ways and precision tapered roller bearings the BDB-929 delivers the smooth operation and rigidity needed to craft professional pieces.
Features:
  • Induction hardened and ground bedway
  • Spindle supported by precision tapered roller bearings
  • Safety on/off switch
  • Emergency Stop within easy reach of the Operator
  • Chuck Guard
  • Quick change gearbox provides wide range of inch and metric threads
  • Power longitudinal feed allows threading and reverse threading
  • Quick locking tailstock
  • Standard 1-1/2 in. x 8 TPI spindle mount allows for many aftermarket accessories
  • Reversing switch for added versatility
What’s Included:
  • 9 x 29 BDB-929 Belt Drive Bench Lathe-JETN321379
Spindle Speed Settings
6
Power Source
Corded
Range of Inch Threads (TPI)
8 - 56
Spindle Bore Diameter
3/4 in
UL Safety
Yes
CSA Safety
No
Distance Between Centers
27-1/2 in
Bed Width
4-1/2 in
Tool Size
1/2 in
Swing Range (Cross Slide)
5 in
No. of Inch Threads
27
Motor Phase
1
Range of Longitudinal Feed Rates (IPR)
0.0006-0.0368 in
Bed Construction
Cast Iron
Spindle Taper (Tailstock)
MT-2
Cross Slide Travel
4-1/4 in
Horsepower
0.75
Motor Type
Brushed
Voltage
115V
Spindle Mount Taper
Yes
Carriage Travel
26-1/2 in
Spindle Speed Range (RPM)
2000
Compound Slide Travel
1-7/8 in
Range of Metric Threads
0.5 - 3.5
Spindle Travel (Tailstock)
1-9/16 in
Steady Rest Capacity
1-3/4 in
No. of Metric Threads
12
Drive Type
Belt
Follow Rest Capcacity
1-3/4 in
No. of Longitudinal Feed Rates
60
Swing Range (Bed)
8-3/4 in
ETL Safety
No
Spindle Mount
Yes
Length
51 in.
Width
22 in.
Height
20 in.
Weight
287 lbs.
Warranty Term
2 Year

Reviews :

There are no reviews for this item. Write Review

Q & A :

Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 1 question Browse 1 question
What size is the small drive belt on a jet bdb-929 ?
A shopper on Aug 25, 2020
