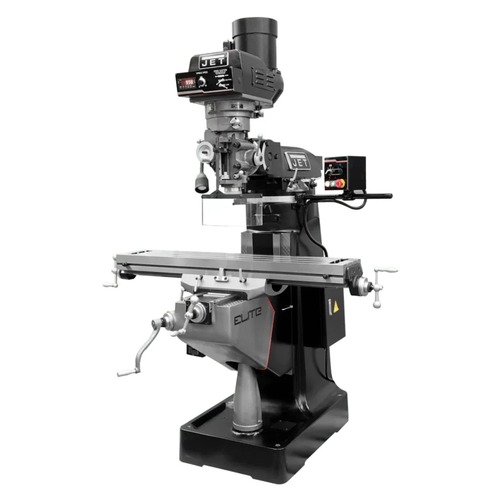

JET 894311 EVS-949 Mill with 2-Axis ACU-RITE 203 DRO and X-Axis Powerfeed and Air Draw Bar

JET Model: 894311

Enter your email address and we'll let you know when it's available

OUT OF STOCK
CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
JET 894311 EVS-949 Mill with 2-Axis ACU-RITE 203 DRO and X-Axis Powerfeed and Air Draw Bar JET Model: 894311

Product Features & specs :

JET 894311 EVS-949 Mill with 2-Axis ACU-RITE 203 DRO and X-Axis Powerfeed and Air Draw Bar

Details

Elite offers world class mills fully loaded with features, including certified Meehanite castings, a Chromium Molybdenum spindle, and a hardened and ground table that provides a stable and accurate platform for milling. When working on the design of the mills we focused our efforts on the most accurate spindle assembly to meet strict tolerance requirements. This spindle utilizes class 7210 (P4, ABEC-7) precision angular bearings for an industry-leading spindle taper runout of 0.00012 in. To improve the reliability and durability we went back and did things the old fashioned way, we hand scraped the ways to a minimum of 16-Point per in. Every 30 minutes, your Elite mill is automatically lubricated with a flow of 3 to 6 cc/cy. For operator safety all Elite Mills are CSA/CUS Certified and all come with a spindle safety guard.

Features:

  • Patented vari-disc key provides up to 10 Times the wear resistance than aluminum or brass keys

  • Ball bearing support of the motor shaft ensures proper loading, support, and alignment for quiet, accurate operation at any speed

  • Heat treated and polished lead screws are supported by thrust bearings ensuring smooth, incremental movements of the table under load

  • Seamless, one-piece, steel quill is induction hardened and chromed for increased strength and precision ground for greater accuracy

  • Stainless steel Y-Axis way cover provides extra years of protection over the standard sheet metal cover

  • The electronic spindle brake, when activated, interrupts power to the spindle to prevent accidental start ups

  • The mounted control box houses major mill functions as well as an emergency stop button

  • The table and saddle backlash is controlled by an advanced double nut design that eliminates end-play for precisely controlled lateral movements

  • Variable speed pulleys are ground and multiplane dynamically balanced, reducing vibration and ensuring smooth speed transitions

What’s Included:

  • EVS-949 Mill with 2-Axis ACU-RITE 203 DRO and X-Axis Powerfeed and Air Draw Bar - 894311

Power Source

Corded

Spindle Speed Range

60 - 5000

PreWired Voltage

230V

Amperage

18

CSA Safety

Yes

Wifi compatibility

No

Spindle to Table Distance

18-3/4 in

Collet Capacity

1/8 in - 7/8 in

T-Slot Centers

2-1/2 in

Spindle Speeds

Variable

Bluetooth Compatibility

No

Table Size

9 in x 49 in

Spindle Taper

R-8

Motor Phase

3

Horsepower

3

Motor Type

Brushed

Voltage

230V

No. of T-Slots

3

Quill Down Feed Rates

0.0015 / 0.003 / 0.006

Spindle Travel

5 in

Quill Diameter

3-3/8 in

Head Movement

90 Degrees R/L 45 Degrees F/B

Table Capacity (lbs.)

550 lbs

T-Slot Size

5/8 in

Ram Travel

14 in

Length

68 in.

Width

63 in.

Height

84 in.

Weight

2300 lbs.

Warranty Term

3 Year
