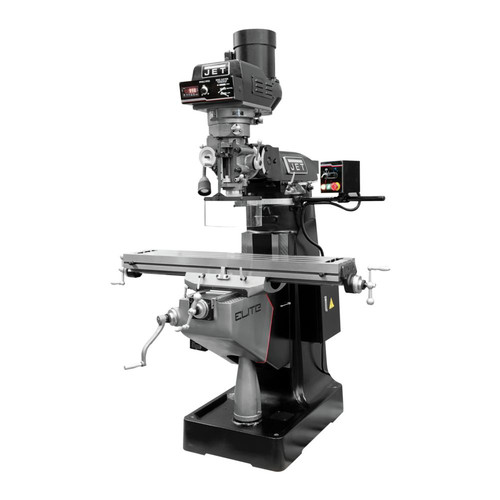

JET 894316 EVS-949 Mill with 3-Axis ACU-RITE 203 (Quill) Digital Readout

JET Model: 894316
$27,719.00
See More
See Less
free shipping
FREE shipping on orders $149+
free shipping
This item ships directly from the manufacturer.
alert warning icon

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
JET 894316 EVS-949 Mill with 3-Axis ACU-RITE 203 (Quill) Digital Readout JET Model: 894316
price for vip customer
$27,719.00

OR PAY WITH

Product Features & specs :

JET 894316 EVS-949 Mill with 3-Axis ACU-RITE 203 (Quill) Digital Readout

Details

Elite offers World Class Mills fully loaded with features. When working on the design of the mills we focused our efforts on the most accurate spindle assembly to meet strict tolerance requirements. To improve the reliability and durability we went back and did things the old fashioned way, we hand scraped the ways to a minimum of 16-point per inch. For operator safety all Elite Mills are CSA / CUS Certified and all come with a spindle safety guard.

Features:

  • Spindle utilizes class 7210 (P4, ABEC-7) precision angular bearings for the industry leading spindle taper runout of 0.00012 in.

  • Chromium Molybdenum spindle is fully hardened through a carbonizing treatment and is precisely ground to maintain strict tolerances

  • Seamless, one-piece, steel quill is induction hardened and chromed for increased strength and precision ground for greater accuracy

  • The Y and Z-Axis ways are hand scraped to a minimum of 16 points per square inch for greater oil retention and smooth movements

  • Heat treated and polished lead screws are supported by thrust bearings ensuring smooth, incremental movements of the table under load

  • The table and saddle backlash is controlled by an advanced double nut design that eliminates end-play for precisely controlled lateral movements

  • A patented vari-disc key provides upt to ten times the wear resistance than aluminum or brass keys

  • Variable speed pulleys are ground and multiplane dynamically balanced, reducing vibration and ensuring smooth speed transitions

  • Ball bearing support of the motor shaft ensures proper loading, support and alignment for quiet, accurate operation at any speed

  • Hardened and ground table provides a stable and accurate platform for milling a diverse variety of materials

What’s Included:

  • EVS-949- 3X 203 (Q) - 894316

Power Source

Corded

PreWired Voltage

230V

Amperage

18

Wifi compatibility

No

Spindle to Table Distance

18-3/4 in

Collet Capacity

1/8 in - 7/8 in

Spindle Speeds

Variable

Bluetooth Compatibility

No

Motor Type

Brushed

Quill Down Feed Rates

0.0015 / 0.003 / 0.006

Quill Diameter

3-3/8 in

Head Movement

90 Degrees R/L 45 Degrees F/B

Table Capacity (lbs.)

550 lbs

T-Slot Size

5/8 in

Ram Travel

14 in

Spindle Speed Range

60 - 5000

CSA Safety

Yes

T-Slot Centers

2-1/2 in

Table Size

9 in x 49 in

Spindle Taper

R-8

Motor Phase

3

Horsepower

3

Voltage

230V

No. of T-Slots

3

Spindle Travel

5 in

Length

68 in.

Width

63 in.

Height

84 in.

Weight

2300 lbs.

Warranty Term

3 Year
