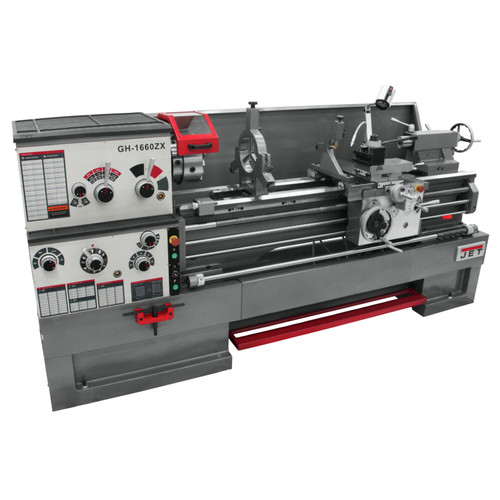

JET GH-1660ZX 16 in. x 60 in. 7-1/2 HP 3-Phase ZX Series Large Spindle Bore Lathe
JET Model: GH-1660ZXEnter your email address and we'll let you know when it's available
Product Features & specs :
JET GH-1660ZX 16 in. x 60 in. 7-1/2 HP 3-Phase ZX Series Large Spindle Bore Lathe
Details
The ZX-Series Large Spindle Bore Lathe provides power, precision, efficiency and reliability to your metal shop. A one piece cast iron base absorbs vibrations during operation to allow heavier cuts and ensure accuracy, while the Universal Gearbox eliminates the need to change gears. Features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty.
Features:
-
Uniquely designed exclusively by JET,
-
ISO 9001 certified manufacturer
-
Chrome molybdenum headstock gears are hardened, ground, and shaved
-
3-1/8 in. bore spindle is supported by two tapered and one ball bearing
-
Universal gearbox allows inch, metric, diametral, and module pitch threads, no change gears required
-
Carriage Feature one-shot lubrication and Turcite B on bed sliding surfaces
-
T-slotted compound slide featuring a four-way tool post
-
One-piece cast iron base absorbs vibration allowing heavier cuts
-
High quality ANSI Class 50 wear-resistant cast iron bed ways are hardened and ground
What’s Included:
-
16 in. x 60 in. 7-1/2 HP 3-Phase ZX Series Large Spindle Bore Lathe - 321940
-
10 in. 3-Jaw Chuck w/ Top Reversing Jaws
-
12 in. 4-Jaw Chuck
-
12 in. Face Plate
-
Four-Way Tool Rest
-
Follow Rest
-
Large Capacity Steady Rest
-
Fully Integrated Coolant System
-
Full Length Splash Guard &, Coolant Return
-
Large Easy-to-Use Foot Brake
-
Articulating Halogen Work Lamp
-
Centrally Located Controls w/ Jog Button
-
Threading Dial
-
Mounting Pads &, Levelers
-
Spindle Sleeve (MT-7 to MT-5)
-
Dead Center
-
Live Center
-
Tool Box &, Adjusting Tools
Spindle Speed Settings
12
Power Source
Corded
Range of Inch Threads (TPI)
1-5/8 - 72
Spindle Bore Diameter
3-1/8 in
PreWired Voltage
460V
UL Safety
No
Bed Width
13-1/8 in
Swing Range (Cross Slide)
10 in
No. of Inch Threads
61
Bluetooth Compatibility
No
Bed Construction
Cast Iron
Cross Slide Travel
9 in
Motor Type
Brushed
Spindle Speed Range (RPM)
1800
Compound Slide Travel
5-1/8 in
Range of Metric Threads
0.05 - 20
Steady Rest Capacity
3/8 in - 7 in
No. of Metric Threads
24
Range of Cross Feeds (IPR)
0.0006 - 0.036
Swing Range (Gap)
25-1/2 in
CSA Safety
No
Distance Between Centers
60 in
Tool Size
1 x 1 in
Gap Length
12 in
Motor Phase
3
Range of Longitudinal Feed Rates (IPR)
0.0015 - 0.09 in
Spindle Taper (Tailstock)
MT-3
Horsepower
7.5
Voltage
230V
Spindle Mount Taper
Yes
Carriage Travel
55-9/16 in
Spindle Travel (Tailstock)
5 in
Drive Type
Geared Head
Follow Rest Capcacity
1/2 - 3-1/2 in
No. of Longitudinal Feed Rates
46
No. of Cross Feed Rates
31
Swing Range (Bed)
16 in
ETL Safety
No
Spindle Mount
Yes
Length
115 in.
Width
44 in.
Height
66 in.
Weight
5795 lbs.
Warranty Term
2 Year
Reviews :
Q & A :
Warranty:
JET RED ASSURANCE Program
Do you know about the JET RED ASSURANCE Program? Well, the JET RED ASSURANCE Program was designed to make sure you do! JET has the best and most dependable service in the Industry and they want to make sure you know about it. In addition, to their standard warranty JET offers the Industry's most dependable service and support guarantee. Click here to learn more about what JET RED ASSURANCE can do for you!
2-Year
WARRANTY AND SERVICE
WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JET® tools. For the name of an Authorized Service Center in your area, call 1-800-274-6848.
MORE INFORMATION
This warranty covers any defects in workmanship or materials subject to the exceptions stated below. Cutting tools, abrasives and other consumables are excluded from warranty coverage.
WARRANTY
This JET product carries a limited two-year warranty.
WHAT IS COVERED
This warranty covers any defects in workmanship or materials subject to the exceptions stated below. Cutting tools, abrasives and other consumables are excluded from warranty coverage.
WHO IS COVERED
This warranty covers only the initial purchaser of the product.
WHAT IS THE PERIOD OF COVERAGE
The general JET warranty lasts for the time period specified in the product literature of each product.
WHAT IS NOT COVERED
Five Year Warranties do not cover woodworking (WW) products used for commercial, industrial or educational purposes. Woodworking products with Five Year Warranties that are used for commercial, industrial or education purposes revert to a One Year Warranty. This warranty does not cover defects due directly or indirectly to misuse, abuse, negligence or accidents, normal wear-and-tear, improper repair or alterations, or lack of maintenance.
HOW TO GET SERVICE
The product or part must be returned for examination, postage prepaid, to a location designated by us. For the name of the location nearest you, please call 1-800-274-6848.
You must provide proof of initial purchase date and an explanation of the complaint must accompany the merchandise. If our inspection discloses a defect, we will repair or replace the product, or refund the purchase price, at our option. We will return the repaired product or replacement at our expense unless it is determined by us that there is no defect, or that the defect resulted from causes not within the scope of our warranty in which case we will, at your direction, dispose of or return the product. In the event you choose to have the product returned, you will be responsible for the handling and shipping costs of the return.
HOW STATE LAW APPLIES
This warranty gives you specific legal rights; you may also have other rights which vary from state to state.
LIMITATIONS ON THIS WARRANTY
WMH TOOL GROUP LIMITS ALL IMPLIED WARRANTIES TO THE PERIOD OF THE LIMITED WARRANTY FOR EACH PRODUCT. EXCEPT AS STATED HEREIN, ANY IMPLIED WARRANTIES OR MERCHANTABILITY AND FITNESS ARE EXCLUDED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG THE IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. WMH TOOL GROUP SHALL IN NO EVENT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY, OR FOR INCIDENTAL, CONTINGENT, SPECIAL, OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OF OUR PRODUCTS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
WMH Tool Group sells through distributors only. The specifications in WMH catalogs are given as general information and are not binding. Members of WMH Tool Group reserve the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason whatsoever.
