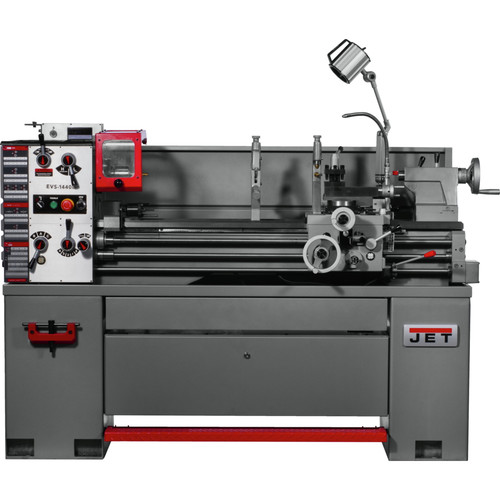

JET EVS-1440 3 HP Variable Speed Lathe with Newall DP700 DRO

JET Model: JT9-311448

Enter your email address and we'll let you know when it's available

OUT OF STOCK
CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to chemicals including Lead, a chemical known to the State of California to cause Cancer and Birth Defect/Reproductive Harm and Titanium Dioxide, a chemical known to the State of California to cause Cancer. For more information go to www.P65Warnings.ca.gov.
JET EVS-1440 3 HP Variable Speed Lathe with Newall DP700 DRO JET Model: JT9-311448

Product Features & specs :

JET JT9-311448 EVS-1440 3 HP Variable Speed Lathe with Newall DP700 DRO

Details

The EVS-1440B is engineered to maximize your shop's output. The D1-4 spindle is precision ground for accuracy and supported by Class 7 tapered roller bearings capable of a run out maximum of .0004 in. The 2-speed gearbox allows operators to easily work at low speeds from 40 - 365 RPM and at high speeds from 220 to 2,000 RPM.

Features:

  • V-way bed design is induction hardened and ground

  • Splined, not keyed, shafts are utilized

  • D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings

  • Independent lead screw and feed rod

  • Adjustable gibs are incorporated in the carriage and slide ways

  • Class 7 precision taper roller bearings keep spindle run out to a maximum of 0.0004 in.

  • Meehanite castings retain their tolerance and remain rigid through many years of machining

  • Safety on/off switch

  • Emergency stop within easy reach of the operator

  • Electronic chuck key docking station

What’s Included:

  • EVS-1440 3 HP Variable Speed Lathe with Newall DP700 DRO - 311448

Power Source

Corded

Range of Inch Threads (TPI)

2 - 56

Spindle Bore Diameter

1-1/2 in

Bed Width

7.48 in

Swing Range (Cross Slide)

9-1/16 in

No. of Inch Threads

34

Bluetooth Compatibility

No

Cross Slide Travel

7 in

Motor Type

Whisper Wind

Spindle Speed Range (RPM)

40 - 2000

Compound Slide Travel

3-1/2 in

Range of Metric Threads

0.5-12

Steady Rest Capacity

23/100 in - 61/100 in

No. of Metric Threads

34

Tool Size

3/4 x 3/4 in

Gap Length

9-1/2 in

Motor Phase

3

Range of Longitudinal Feed Rates (IPR)

0.0016 - 0.046 in

Spindle Taper (Tailstock)

MT-3

Horsepower

3

Voltage

230V

Spindle Mount Taper

Yes

Spindle Travel (Tailstock)

6-1/8 in

No. of Longitudinal Feed Rates

25

No. of Cross Feed Rates

25

Swing Range (Bed)

14 in

Spindle Mount

Yes

Length

76 in.

Width

30 in.

Height

61 in.

Weight

1584 lbs.

Warranty Term

2 Year
