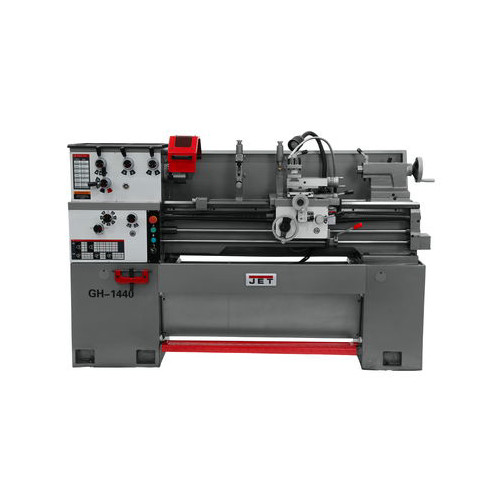

JET GH-1440-1 Lathe with 200S DRO JET Model: JT9-323374
price for vip customer
$20,879.00

OR PAY WITH

Product Features & specs :

JET JT9-323374 GH-1440-1 Lathe with 200S DRO

Details

The new JET GH-1440-1 and GH-1440-3 Geared Head engine lathes weigh over one ton and come equipped with precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for the ultimate working durability. The enclosed gearbox design, standard coolant system, and lead screw cover provide a smooth and quiet operation while maintaining peak performance. The GH-1440-1 and GH-1440-3 also includes a patented electronic chuck key docking station that prevents startup without the chuck key when safely docked.

Features:

  • V-way bed design is induction hardened and ground

  • Splined, not keyed, shafts are utilized

  • D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings

  • Independent leadscrew and feed rod

  • Adjustable gibs are incorporated in the carriage and slideways

  • Safety on/off switch

  • Emergency Stop within easy reach of the Operator

  • Electronic Chuck Key Docking Station

  • Chuck Guard

  • Foot Brake

What’s Included:

  • GH-1440-1 Lathe with 200S DRO-JETN323374

Spindle Speed Settings

12

Power Source

Corded

Range of Inch Threads (TPI)

4 - 112

Spindle Bore Diameter

1-1/2 in

PreWired Voltage

230V

UL Safety

Yes

Bed Width

10-1/5 in

Swing Range (Cross Slide)

8-1/5 in

No. of Inch Threads

40

Bluetooth Compatibility

No

Bed Construction

Cast Iron

Cross Slide Travel

6-3/8 in

Motor Type

Brushed

Spindle Speed Range (RPM)

1800

Compound Slide Travel

3-1/2 in

Range of Metric Threads

0.45 - 7.5

Steady Rest Capacity

3-1/2 in

No. of Metric Threads

23

Range of Cross Feeds (IPR)

0.0004 - 0.0103

Swing Range (Gap)

20 in

CSA Safety

No

Distance Between Centers

40 in

Tool Size

5/8 x 5/8 in

Gap Length

9-3/8 in

Motor Phase

1

Range of Longitudinal Feed Rates (IPR)

0.0012 - 0.0294 in

Spindle Taper (Tailstock)

MT-3

Horsepower

3

Voltage

230V

Spindle Mount Taper

Yes

Carriage Travel

37-1/2 in

Spindle Travel (Tailstock)

4-3/4 in

Drive Type

Geared Head

Follow Rest Capcacity

2-5/8 in

No. of Longitudinal Feed Rates

40

No. of Cross Feed Rates

40

Swing Range (Bed)

14 in

ETL Safety

No

Spindle Mount

Yes

Length

74.8 in.

Width

28 in.

Height

46 in.

Weight

2336 lbs.

Warranty Term

2 Year
