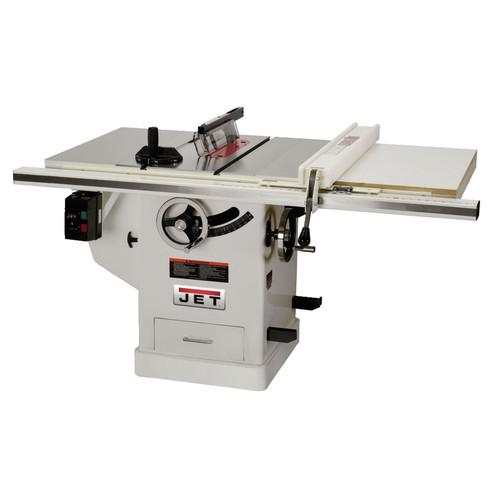

JET JTAS-10XL30-5/1DX 230V 5 HP 10 in. Single Phase Left Tilt Deluxe XACTA Table Saw with 30 in. XACTAFence II

JET Model: JTAS-10XL30-5/1DX

Enter your email address and we'll let you know when it's available

OUT OF STOCK
CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
JET JTAS-10XL30-5/1DX 230V 5 HP 10 in. Single Phase Left Tilt Deluxe XACTA Table Saw with 30 in. XACTAFence II JET Model: JTAS-10XL30-5/1DX

Product Features & specs :

JET JTAS-10XL30-5/1DX 230V 5 HP 10 in. Single Phase Left Tilt Deluxe XACTA Table Saw with 30 in. XACTAFence II

Features:

  • Exclusive 30 in. Commercial XACTA, Fence II with T-square design

  • Push button arbor lock for rapid blade change

  • Quick-release riving knife greatly reduces binding and kickback risk

  • Shrouded blade increases dust collection efficiency

  • Standard 11 in. left and right cast-iron extension wings provides the largest table surface in its class

  • Poly-V drive belt system delivers efficient, quiet operation

  • Rail-mounted magnetic switch is easy to reach and provides overload protection

  • Enclosed cabinet with built-in sealed storage drawer

  • Hinged motor cover on cabinet gives quick access to the motor and belts

  • Deluxe miter gauge with adjustable positive stops and large soft grip handles provides large crosscutting capacity and accurate miters

  • Heavy-duty chrome plated hand wheels contribute to smooth trunnion and arbor movement

  • Built-in 4 in. port for dust collection

  • Precision-ground, high-luster cast-iron table top with front edge bevel for hassle-free work piece positioning

  • Left tilt, wide stance heavy-duty trunnion for stability and smooth blade positioning

  • Independent leaf safety guard protects operator from blade while cutting - even at a 45, tilt

What’s Included:

  • JTAS-10XL30-5/1DX, 5 HP 10 in. Single Phase Left Tilt Deluxe XACTA Table Saw w/ 30 in. XACTA, Fence II - 708676PK

  • 30 in. XACTA, Fence II

Power Source

Corded

Blade Guard System

No

Dado Blade Width (Max.)

13/16 in

Fence Length

30 in

PreWired Voltage

230V

Table Type

Cast Iron

Wing Type

Cast Iron

Amperage

18

UL Safety

No

Wifi compatibility

No

Rip Capacity (Right)

30 in

Blade Diameter

10 in

Bluetooth Compatibility

No

Dust Collection

Yes

Blade Tilt

Left

Motor Type

Brushed

Dado Blade Diameter (Max.)

8 in

Table Width (w/ Extension)

42 in

Arbor Size

5/8 in

Depth of Cut (45 Degrees)

2-1/8 in

Blade Tilt Range

0 - 45 Degrees

No-Load Speed (RPM)

4300

Depth of Cut (90 Degrees)

3 in

Max. Rip Capacity (Right)

30 in

CSA Safety

No

Extension Type

Laminate Table

Table Width

20 in

Table Height

34 in

Motor Phase

1

Horsepower

5

Voltage

230V

Table Depth

29 in

Rip Capacity (Left)

13 in

ETL Safety

No

Length

65 in.

Width

36 in.

Height

38 in.

Weight

490 lbs.

Warranty Term

5 Year
