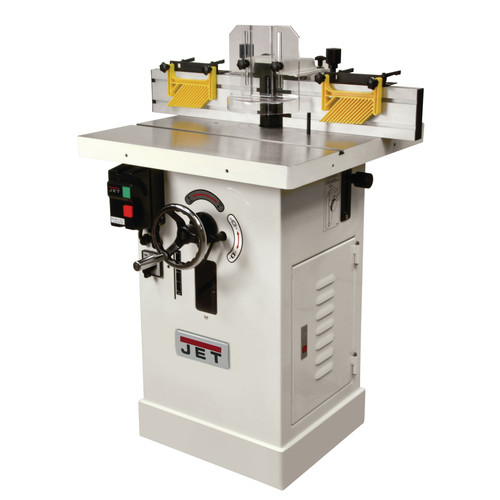

JET JWS-25X 3 HP Single-Phase Shaper with Adjustable 4 in. Dust Port

JET Model: jetn708309
ratings        (2) Write A Review
$2,199.99
See More
See Less
free shipping
This item qualifies for
FREE SHIPPING
free shipping
This item ships directly from manufacturer
alert warning icon

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
JET JWS-25X 3 HP Single-Phase Shaper with Adjustable 4 in. Dust Port JET Model: jetn708309
price for vip customer
$2,199.99

OR PAY WITH

Product Features & specs :

JET JWS-25X 3 HP Single-Phase Shaper with Adjustable 4 in. Dust Port

Details Features:
  • Two-speeds let you select the best speed and torque for different cutter diameters
  • Independently adjustable left and right fences, standard with a micro adjust control for precise positioning
  • Poly-V-belt transfers maximum power to the spindle
  • Large 25 in. X 25-1/2 in. precision ground cast iron table provides a durable work area
  • Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
  • Reversible spindle speeds for diverse shaping jobs
  • Powerful 3HP, 1Ph motor with magnetic controls
  • Starting pins for irregular shaping
  • Extra large chrome handwheel is conveniently located for fast, easy and accurate spindle height adjustments
  • 4 in. Dust port built into fence for convenient hookup to any dust collection system
What’s Included:
  • JWS-25X, 3HP, 1Ph JET, Shaper - 708309
Table Dimensions
25-1/2 x 25 in
Power Source
Corded
Bluetooth Compatibility
No
Max. Spindle Speed (RPM)
10000
Motor Phase
1
Table Height
33 in
Fence Length
14-1/2 in
PreWired Voltage
230V
Horsepower
3
Voltage
230V
Motor Type
Brushed
Amperage
16
UL Safety
No
Spindle Diameter
1/2 in / 3/4 in
Opening Diameter (Insert)
2-9/16 in / 4-21/64 in
CSA Safety
No
Wifi compatibility
No
Spindle Travel
3-1/2 in
Min. Spindle Speed (RPM)
7500
Fence Height
4-3/4 in
ETL Safety
No
Opening Diameter (Table)
6-9/32 in
Dust Port Size
4 in
Length
25 in.
Width
23 in.
Height
43 in.
Weight
381 lbs.
Warranty Term
5 Year

Reviews :

4.5 / 5.0
2 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
1
1
0
0
0
Would you recommend this product?
Yes (2)
Pros
Powerful (2)
Easy To Use (1)
Would you recommend this product?
Yes
Pros
Powerful
Workhorse!!!
This is the last shaper you will ever need! Raised panel doors are a breeze to make now!! Awesome!
December 28, 2015
Would you recommend this product?
Yes
Pros
Easy To Use
Powerful
Good Product
Pros: Very powerful, quiet, good fence and protection. My sawdust collector is much louder

Cons: The only thing I don't like is that when you release the spindle height lock the spindle drops a fraction. It would be better if it stayed so small adjustment could be made. maybe there is an adjustment for this but I have not found it.

I have made several raised doors with the Freud RP and RS 2000 system and love the extremely smooth cuts this system and shaper produce.

I had a 3.5 hp porter cable router and table -- no comparison. This is way better.

Very prompt Delivery
February 8, 2013

Q & A :

Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 1 question Browse 1 question and 1 answer
Does the spindle except 1/2 collets? Or is it where the nut holds down the cutter?
Joe on Jul 2, 2016
BEST ANSWER: Yes......1/2" and 3/4" spindles.
