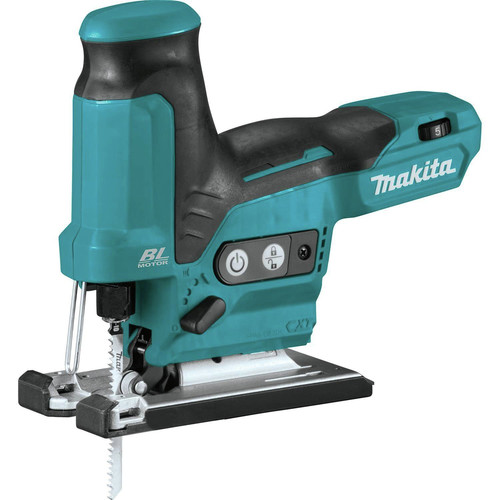

Makita VJ05Z 12V max CXT Lithium-Ion Brushless Barrel Grip Jig Saw, (Tool Only)

Makita Model: mktnvj05z
ratings        (2) Write A Review
Price reduced from $125.99 to Save 9% $114.99
free shipping
This item qualifies for
free shipping

Estimates For

alert warning icon

  • Last 1 In Stock


CA Residents
Prop 65 Warning
compliance warning icon
WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of those chemicals are: lead from lead-based paints, crystalline silica from bricks and cement and other masonry products, and arsenic and chromium from chemically-treated lumber. Refer to product manual/instructionsCancer
Makita VJ05Z 12V max CXT Lithium-Ion Brushless Barrel Grip Jig Saw, (Tool Only) Makita Model: mktnvj05z
price for vip customer
Price reduced from $125.99 to Save 9% $114.99


Product Features & specs :

Makita VJ05Z 12V max CXT Lithium-Ion Brushless Barrel Grip Jig Saw, (Tool Only)

The Makita 12V max CXT Lithium-Ion Brushless Barrel Grip Jig Saw (tool only, batteries and charger sold separately) delivers fast and efficient cutting, with a compact design that’s engineered for ease-of-use and maneuverability. It features a barrel grip design for closer-to-work cutting, and is ideal for woodworkers, cabinet makers, remodelers, and general contractors. Makita 12V max CXT Lithium-Ion slide-style batteries provide improved balance and ergonomics over pod-style batteries, and for convenience the batteries include an on-board L.E.D. charge level indicator (batteries sold separately).
The Brushless Barrel Grip Jig Saw has a compact and ergonomic design with less weight (only 3.9 lbs. with 12V max CXT 2.0Ah battery, sold separately). The efficient Makita-built brushless motor is engineered for longer run time, increased power and speed, and longer tool life. The variable 5-speed control dial (800-3,000 RPM) enables the user to match the speed to the application, and the 3 orbital settings plus straight cutting provide added versatility. The soft start suppresses start-up reaction for better accuracy, and the no-load speed reduction feature automatically reduces SPM for more accurate cutting starts. Convenience features include “tool-less†blade changes, large 2-finger variable speed trigger with lock-on button, dual L.E.D. lights, and a built-in dust blower to clear the line of cut.
For longer run time, all 12V max CXT cordless tools are also compatible with the 12V max CXT Lithium-Ion 4.0Ah battery (BL1041B, sold separately). 12V max CXT lithium-Ion batteries are engineered with a Battery Protection Circuit that protects against overloading, over-discharging and over-heating. It’s part of the expanding 12V max CXT series, combining performance with superior ergonomics in a compact size.
  • Tool-less" blade change system allows for faster blade installation and removal for increased productivity
  • Tilting base for bevel cuts from 0° - 45°
  • Heavy gauge aluminum base for smooth, accurate cutting and added durability
What’s Included:
  • Jigsaw Blade
Power Source
UL Safety
Stroke Length
7/8 in
CSA Safety
Wifi compatibility
Batteries Included
Battery Type
Dust Blower
Bevel Capacity
+/- 45 Degrees
Case Included
Keyless/keyed Blade Change
Keyless Blade Change
Bluetooth Compatibility
Strokes per minute
800 - 3000
Motor Type
Variable Speed
Charger Included
ETL Safety
Battery System
10.4 in.
3.2 in.
7.8 in.
3.9 lbs.
Warranty Term
3 Year

Reviews :

5.0 / 5.0
2 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
Would you recommend this product?
Yes (2)
Easy To Use (2)
Ergonomic Design (2)
Powerful (1)
Lightweight (1)
Short Run Time (if applicable) (1)
Best Uses
Small Projects (1)
Home Repair (1)
Would you recommend this product?
Easy To Use
Ergonomic Design
Best Uses
Small Projects
Home Repair
Light, Compact Jig Saw That's Easy to Handle
The Makita VJ05Z is a light, compact jig saw that's easy to use and control, being one of the two 12V brushless jig saws available at this time. Essentially, this barrel grip jig saw is very similar to the top-handle VJ06Z and weighs just 3.9 lb (with CXT 2.0Ah battery). It has 3 orbital settings plus straight cutting (selected via mechanical side lever), tool-less blade change, a 1 thru 5 speed setting dial (800 - 3000 strokes / minute), and the following electronic features:

- Soft start. The soft-start function allows the saw to start gradually, minimizing start-up shock.
- No-load speed reduction. When the speed dial is set at 2 or higher, the tool automatically reduces speed until the tool starts cutting, then accelerates (i.e. upon being loaded) and maintains the selected speed until stopping the tool.
When cutting soft materials (foams, thin plastics, etc.) that offer little blade resistance, the no-load speed reduction function can be disabled by a simple procedure. (With the tool off, set the speed dial to "1", press the lock / unlock button to power the tool, turn the speed dial to "5", and then immediately back to "1".) Disabling the no-load speed function (LED tool lights flash twice when disabled) causes the jig saw to operate like an ordinary variable-speed tool.

The only minor complaint is that some accessories (e.g. anti-splintering device, vacuum hose adapter, etc.) are not included. In fact, for some reason certain part no.'s are not even listed in Makita literature for these options. Otherwise, it's highly recommended.
January 4, 2019
1 year ago
Describe Yourself:
Would you recommend this product?
Easy To Use
Ergonomic Design
Short Run Time (if applicable)
Surprisingly powerful for a 12 V Jigsaw
I bought this to complement my 18 V jigsaw but having used it a few times in both plywood and solid wood and I have been pretty impressed by the performance to the point that I have hard time thinking when this wouldn't be appropriate. Really the only thing that I don't like about this is that the battery life is not great (even when using a 4 Ah battery). Here are the things I like about this saw:

1. It seems to me that there is a blower that combined with the LED keep the cut line really clean.
2. I prefer variable speed on a dial as it makes cuts more repeatable.
3. No load detection keeps the blade speed down when not cutting.
August 11, 2018
over 2 years ago
Describe Yourself:
Avid Do-it-Yourselfer

Q & A :

Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 1 question Browse 1 question
Is this a standard size model ?
A shopper on Dec 14, 2017
