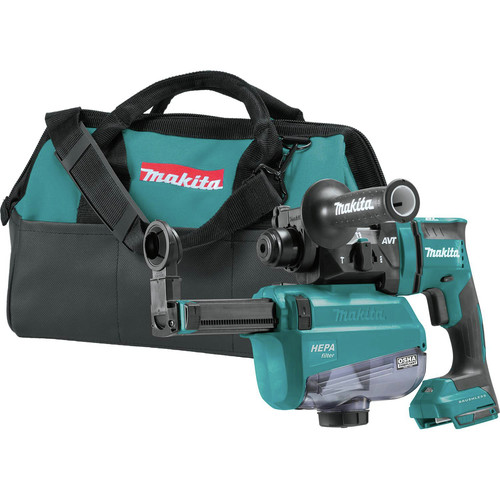

Makita XRH12ZW 18V LXT Lithium-Ion Brushless 11/16 in. AVT SDS-PLUS AWS Capable Rotary Hammer with HEPA Dust Extractor (Tool Only)

Makita Model: mktnxrh12zw

Enter your email address and we'll let you know when it's available

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of those chemicals are: lead from lead-based paints, crystalline silica from bricks and cement and other masonry products, and arsenic and chromium from chemically-treated lumber. Refer to product manual/instructionsCancer
Makita XRH12ZW 18V LXT Lithium-Ion Brushless 11/16 in. AVT SDS-PLUS AWS Capable Rotary Hammer with HEPA Dust Extractor (Tool Only) Makita Model: mktnxrh12zw

Product Features & specs :

Makita XRH12ZW 18V LXT Lithium-Ion Brushless 11/16 in. AVT SDS-PLUS AWS Capable Rotary Hammer with HEPA Dust Extractor (Tool Only)


18V LXT Brushless Cordless 11/16 in. AVT Rotary Hammer, accepts SDS-PLUS bits, w/ HEPA Dust Extractor Attachment, Tool Only (XRH12ZW) is a cordless concrete solution that features AWS capability for maximum efficiency and convenient dust extraction. The efficient HEPA filter captures 99.97% of particulates .3 microns and larger. The compatible Dust Extractor Attachment (DX05) with HEPA Filter is OSHA Table 1 compliant. It's powered by 18V LXT technology and an efficient brushless motor for maximum power, speed and run-time for corded demands, without the cord. There are 3 modes of operation: rotation only, hammering with rotation, and hammering only. The variable speed trigger enables the user to match the speed to the application. It is ideal for a range of trades including mechanical/electrical/plumbing contractors, concrete contractors, road and bridge contractors, utility workers, pest control, maintenance operations, and more. It accepts SDS-PLUS bits.

The Rotary Hammer is AWS capable with Auto-Start Wireless System, which utilizes Bluetooth technology for wireless power-on/off communication between tool and equipped dust extractor. To activate AWS, simply install the Auto-Start Wireless Transmitter (198901-5, sold separately) and synchronize with an AWS-equipped dust extractor (sold separately). For reduced vibration, it's equipped with Anti-Vibration Technology (AVT). More than just a padded handle, AVT is an internal counterbalance that uses air pressure to move counterweight pistons in the opposite direction of the drive piston to actively reduce vibration without a compromise in performance.

It's part of Makita's expanding 18V Lithium-Ion system, the world's largest cordless tool system powered by 18V Lithium-Ion slide-style batteries. Makita 18V Lithium-Ion batteries have the fastest charge times in their categories, so they spend more time working and less time sitting on the charger. For improved tool performance and extended battery life, Makita created Star Protection Computer Controls. Star Protection is communication technology that allows the Star Protection-equipped tool and battery to exchange data in real time and monitor conditions during use to protect against overloading, over-discharging and overheating. For increased versatility, the tool can also be powered by Makita 18V LXT and Compact Lithium-Ion batteries with the star symbol on the battery indicating Star Protection inside.


  • OSHA Table 1 compliant on-board dust extractor includes a filter cleaning mechanism designed to help maintain optimum suction efficiency during concrete drilling

  • Extractor is activated by tool and powered by motor fan blade to maintain concrete dust suction performance

  • Efficient HEPA filtration system captures 99.97% of particulates .3 microns and larger

  • The BL Brushless Motor eliminates carbon brushes, enabling the BL Motor to run cooler and more efficiently for longer life

  • Torque limiting clutch is engineered to prevent gear damage by automatically disengaging gears if the bit binds

  • Auto-Start Wireless System (AWS) which utilizes Bluetooth technology for wireless power-on/off communication between tool and dust extractor

  • AWS capable with Auto-Start Wireless Transmitter (part no. 198901-5) sold separately

  • Anti-Vibration Technology (AVT) is engineered to reduce vibration for increased comfort

  • Constant speed control automatically applies additional power to the motor to maintain speed under load to complete the most challenging jobs

  • Electric brake allows the tool to be repositioned faster for maximum productivity

What’s Included:

  • 18V LXT Li-Ion Brushless 11/16 in. AVT SDS-PLUS AWS Capable Rotary Hammer w/ Dust Extractor - XRH12ZW

  • Dust Extractor Attachment with HEPA Filter Cleaning Mechanism - DX05

  • Sealing Cap - 424474-5

  • Tool bag

  • Side Handle

  • Depth Gauge

  • Battery and charger sold separately

Power Source


Blows Per Minute(BPM)


Wifi compatibility


Battery Type


Chuck Size

11/16 in

Bluetooth Compatibility


Motor Type


Charger Included


Impact Energy

1.7 Joules

No-Load Speed (RPM)

0 - 1350

Case Included


Case Type




Handle Type


Chuck Type


Battery System



11.875 in.


7.5 lbs.

Warranty Term

3 Year

Reviews :

Q & A :


Warranty Information

Makita LXT Lithium-ion Tool Warranty

Every Makita® Lithium‐Ion Power Tool is thoroughly inspected and tested before leaving the factory. If you are not satisfied with any Makita Lithium‐Ion tool within 30 days of purchase, return it and Makita will provide, at Makita's option, a replacement or refund. Each Makita Lithium‐Ion Power Tool, Battery and Charger is warranted to be free of defects from workmanship and materials for the period of THREE YEARS from the date of original purchase. Should any trouble develop during the three‐year period for the Lithium‐Ion Power Tool, Battery and/or Charger, return the COMPLETE Power Tool, Battery and/or Charger, freight prepaid, to one of Makita's Factory or Authorized Service Centers.

If inspection shows the trouble is caused by defective workmanship or material, Makita will repair (or at our option, replace) without charge. This warranty does not apply to Makita Accessories, like flashlights.

This Warranty does not apply where:

  • Repairs have been made or attempted by others
  • Repairs are required because of normal wear and tear
  • The tool has been abused, misused or improperly maintained
  • Alterations have been made to the tool

  • In no event shall Makita be liable for any indirect, incidental or consequential damages from the sale or use of the product. This disclaimer applies to both during and after the term of this warranty. Makita disclaims liability for any implied warranties, including implied warranties of "merchantability" and "fitness" for a specific purpose, after the three-year term of this warranty. This warranty gives you specific legal rights, and you many also have other rights which vary from state to state. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
