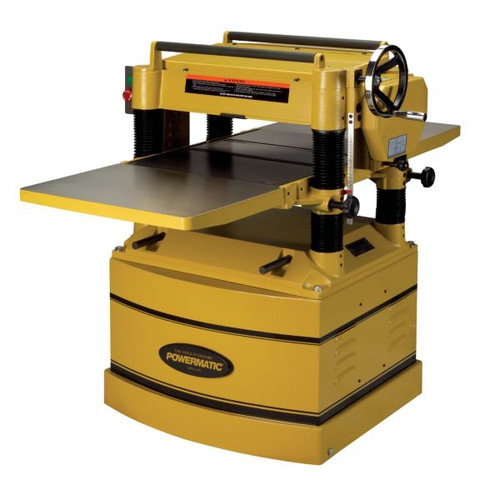

Powermatic 209HH-1 20 in. 1-Phase 5-Horsepower 230V Planer with Byrd Shelix Cutterhead

Powermatic Model: pwmn1791315
ratings        (9) Write A Review

Want an email when this item is in stock?

OUT OF STOCK
CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
Powermatic 209HH-1 20 in. 1-Phase 5-Horsepower 230V Planer with Byrd Shelix Cutterhead Powermatic Model: pwmn1791315

Product Features & specs :

Powermatic 209HH-1 20 in. 1-Phase 5-Horsepower 230V Planer with Byrd Shelix Cutterhead

Details
The heavy-duty 209HH-1 Planer offers performance and value, and is loaded with standard features not found on other machines in its class. The powerful 5 HP motor and 20 in. planing capacity will handle the most demanding work. The 5 in. dust port connects easily to any dust collector. The Byrd Shelix Helical cutterhead is sharpened on four sides, allowing for indexing at a speed of 5,000 RPM. Anti-kickback fingers and pressure bar are located in close proximity to the cutterhead for an exceptional finish. Solid cast-iron base, table and head are designed for production. A 2-speed oil bath gearbox transmits full power to feed rollers and facilitates fast speed changes at 24 and 31 FPM. The gearbox can be changed to 4-speed with the included gear to run lower speeds of 16 and 20 FPM.
Features:
  • The Byrd Shelix helical cutterhead and insert knives provide a smoother, quieter cut and a finer finish than conventional or spiral knife systems
  • 5 HP TEFC motor
  • 20 in. planing capacity
  • Fully enclosed base cabinet with integrated casters
  • Cast-iron table with extensions creates a big 55-1/2 in. x 20 in. working area
  • Four speeds: 24 and 31 FPM and 16 and 20 FPM with gear change
  • Feed rollers and cutterhead supported by full cast-iron head assembly
What’s Included:
  • 209HH-1 20 in. Planer - 1791315
  • Byrd Shelix Planer Cutterhead
Power Source
Corded
No. of Knives
132
Knife Width
15 in
PreWired Voltage
230V
Amperage
28
Knife Thickness
2.50 in
Feed Rate - Planing (FPM)
31
Feed Rate - Moulding (FPM)
24
Wifi compatibility
No
No-Load Speed (CPM)
20000
Material Thickness (Max.)Material Length (Min.)
8 in, 6-3/4 in
Knife Length
15 in
Bluetooth Compatibility
No
Cutterhead Speed (RPM)
5000
Motor Phase
1
Horsepower
5
Planing Depth (Max.)
3/32 in
Motor Type
Brushed
Voltage
230V
Cutterhead Diameter
3-3/16 in
Bench-Top
No
Planing Width (Max.)
20 in
Dust Port
Yes
Length
26 in.
Width
36.63 in.
Height
41.38 in.
Weight
801 lbs.
Warranty Term
5 Year

Reviews :

5.0 / 5.0
9 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
9
0
0
0
0
Would you recommend this product?
Yes (9)
Pros
Powerful (8)
Easy To Use (6)
Value (1)
Best Uses
Frequent Use (1)
Large Projects (1)
Would you recommend this product?
Yes
Pros
Easy To Use
Powerful
Value
Best Uses
Frequent Use
Large Projects
Typical Awesome Powermatic Ruggedness and Reliability.
Build quality is spot on. What you'd expect from Powermatic. Set up was basically attaching the in feed and out feed tables, the 5" OD Dust port , and the height adjustment wheel. There's wheels hidden under the cabinet so you can move it front to back, but not spin it. The in feed and out feed tables take a little time to level but it wasn't a big deal. You will need a buddy to help you set it up. You'll need several of them to get it into the shop. We used a forklift but not everyone has access to one of these. Plan ahead for the unload the best you can and you've got to assume that most freight trucks don't have a liftgate to lower one of these. It's very quiet machine. I've run the following through it: 700 BF of Goncalo Alves (Tigerwood), 500 BF of black Walnut, 1500 BF of Hard White Maple. The results were impressive. All of my Powermatic machines run just like this one: amazing.
May 29, 2017
Purchased
over 3 years ago
Describe Yourself:
Professional
Would you recommend this product?
Yes
Pros
Easy To Use
Powerful
I love this machine!
This is a truly great machine. I'm a retired contractor and use this to plane rough cut cypress for my farmhouse table business. It's very easy to use and amazingly quiet compared to my trusty old PM100 planer. Setup was simple enough and the fit and finish is very good. I have other PM machines that I've been using for over 40 years and their reliability is great. I have no doubt that this machine will be the same. The Byrd Shelix Cutterhead is a thing of beauty, and the key to it's smooth, quiet operation. I highly recommend this machine.
March 25, 2016
Would you recommend this product?
Yes
Pros
Easy To Use
Powerful
Smoothest Purchase Ever / Fantastic Plane
Haven't had the planer long, have processed about 500bf through it so far and couldn't be happier. Shop is quieter, prepping lumber is easier and faster. Powermatic is the golf standard in planers, and this machine is everything I expected.

What I would really like to rave about is the fantastic and professional service I received from CPO. The gentleman that helped me was very nice, helpful and professional. Follow-up after the order was first rate. I ordered on Wed afternoon, the freight company called me Thursday morning, and the machine was delivered to my shop that Friday. I was expecting late the next week at the earliest. The freight company CPO contracted (Old Dominion) was first rate as well. I'll be using CPO again. Thanks.
Would you recommend this product?
Yes
What a machine !!!!!!
I just fired up my new 209HH 5hp planer with the Byrd-Shellx head. Getting it out of the significant all wood crate was the only problem I had. It took a strong son in law and an engine hoist to lift it off the pallet. Wiring was straight forward as I used #8 copper wire for the 40 amp circuit. I am now in the process of hooking up the exhaust to my vacuum.
I couldn't wait and planed a 3/4" piece of Pine from 3/4 to 1/2" came out from 0.500 to 0.497" over the length and width of the 12" board. A perfect surface - no tool marks. I might try and cut a few more boards before I try to fix the 0.003" discrepancy!!! The machine was as quiet as a hand held sander and no vibration.
The only mistake I made was not buying the 8" jointer during the sale. The CPO sales are the best. Thanks Powermatic for a wonderful tool.

Mr. Chips, Woodinville WA
December 18, 2014
Would you recommend this product?
Yes
Pros
Easy To Use
Powerful
The best machine in my shop.
I have surfaced approximately 800 board feet of hard maple so far with this machine. It is extremely quiet and easily has enough power to do the job. The inserts seem to be as sharp as they were new. It took about a third of the time that it was taking me with my other planer.
It is extremely heavy. You will need a forklift for loading. Once removed from the pallet, it is very easy to move around with the integrated casters in the base.
I am very pleased with this purchase. Easily the best machine in my shop.
April 2, 2014
Would you recommend this product?
Yes
Pros
Powerful
Excellent Investment in Quality
It took four strong men to unpack the jointer and lift it onto the mobile stand. The Powermatic mobile base is required unless yours will be stationary. The fit and finish is excellent. The cutter head required no adjustment - or alignment of any type. It has all the power you will ever require. If I had the need I would buy a second unit.
February 22, 2014
Would you recommend this product?
Yes
Pros
Easy To Use
Powerful
Great Planer
Excellent Machine. Quiet, powerful, and easy to maintain. I definately reccomend spending the extra money on the helical cutting head. I teach high school wood shop and this machine can easily handle all of the abuse my students can throw at it.
October 18, 2011
Would you recommend this product?
Yes
Pros
Easy To Use
Powerful
Awesome machine!
Only disappointing thing was that the byrd cutterhead, that cost almost $1000 extra, came badly callibrated, and I had to fiddle with the knives for like 2 hours trying to figure out which ones were out, and loosen and retighten. You'd think for that much money it would have been adjusted perfectly... There were even white out marks on some blades, like the tech was trying to figure out which knives were off, and then just gave up or something. Other than that, this planer is awesome. Super powerful, and super smooth. Love the pass back bars on the top. Having the extra width is definitely a huge benefit. The fact that it's on wheels is great as well.
October 5, 2011
Would you recommend this product?
Yes
Pros
Powerful
Great planer
Great planer with powerful motor. Carbide cutter head makes a very smooth cut,
August 21, 2010

Q & A :

Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 2 questions Browse 2 questions and 5 answers
How much does this weigh?
David on Jun 17, 2016
BEST ANSWER: Gross weight including shipping crate: 911 lbs
Net weight of machine: 801 lbs
- Haven Enterprises
Does this planer have casters for portability?
Bob on Jul 16, 2015
BEST ANSWER: Yes, this product has casters built-in.

Warranty:

Powermatic 5 Year Warranty


WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your POWERMATIC tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.


Five Year Warranty for Non-Industrial Tools
(Vertical Panel Saws, Bandsaws, Jointers, Planers, Planer/Molder, Dust Collection, Disc Sanders, Edge Sanders, Drum Sanders, Shapers, Drill Presses, Mortisers, Dovetailers)


WHAT IS COVERED

This warranty covers any defects in workmanship or materials subject to the exceptions stated below. Cutting tools, abrasives and other consumables are excluded from warranty coverage.


WHO IS COVERED

This warranty covers only the initial purchaser of the product.


WHAT IS THE PERIOD OF COVERAGE

The general POWERMATIC warranty lasts for the time period specified in the product literature of each product.


WHAT IS NOT COVERED

The Five Year Warranty does not cover products used for commercial, industrial or educational purposes. Products with a Five Year Warranty that are used for commercial, industrial or education purposes revert to a One Year Warranty. This warranty does not cover defects due directly or indirectly to misuse, abuse, negligence or accidents, normal wear-and-tear, improper repair or alterations, or lack of maintenance.


HOW TO GET SERVICE

The product or part must be returned for examination, postage prepaid, to a location designated by us. For the name of the location nearest you, please call 1-800-274-6848.


You must provide proof of initial purchase date and an explanation of the complaint must accompany the merchandise. If our inspection discloses a defect, we will repair or replace the product, or refund the purchase price, at our option. We will return the repaired product or replacement at our expense unless it is determined by us that there is no defect, or that the defect resulted from causes not within the scope of our warranty in which case we will, at your direction, dispose of or return the product. In the event you choose to have the product returned, you will be responsible for the handling and shipping costs of the return.

HOW STATE LAW APPLIES

This warranty gives you specific legal rights; you may also have other rights which vary from state to state.


LIMITATIONS ON THIS WARRANTY

WMH TOOL GROUP LIMITS ALL IMPLIED WARRANTIES TO THE PERIOD OF THE LIMITED WARRANTY FOR EACH PRODUCT. EXCEPT AS STATED HEREIN, ANY IMPLIED WARRANTIES OR MERCHANTABILITY AND FITNESS ARE EXCLUDED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG THE IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. WMH TOOL GROUP SHALL IN NO EVENT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY, OR FOR INCIDENTAL, CONTINGENT, SPECIAL, OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OF OUR PRODUCTS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.


WMH Tool Group sells through distributors only. The specifications in WMH catalogs are given as general information and are not binding. Members of WMH Tool Group reserve the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason whatsoever.
